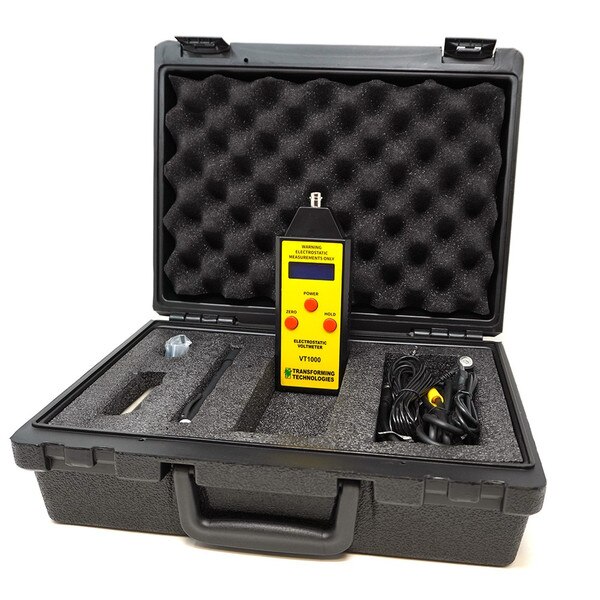

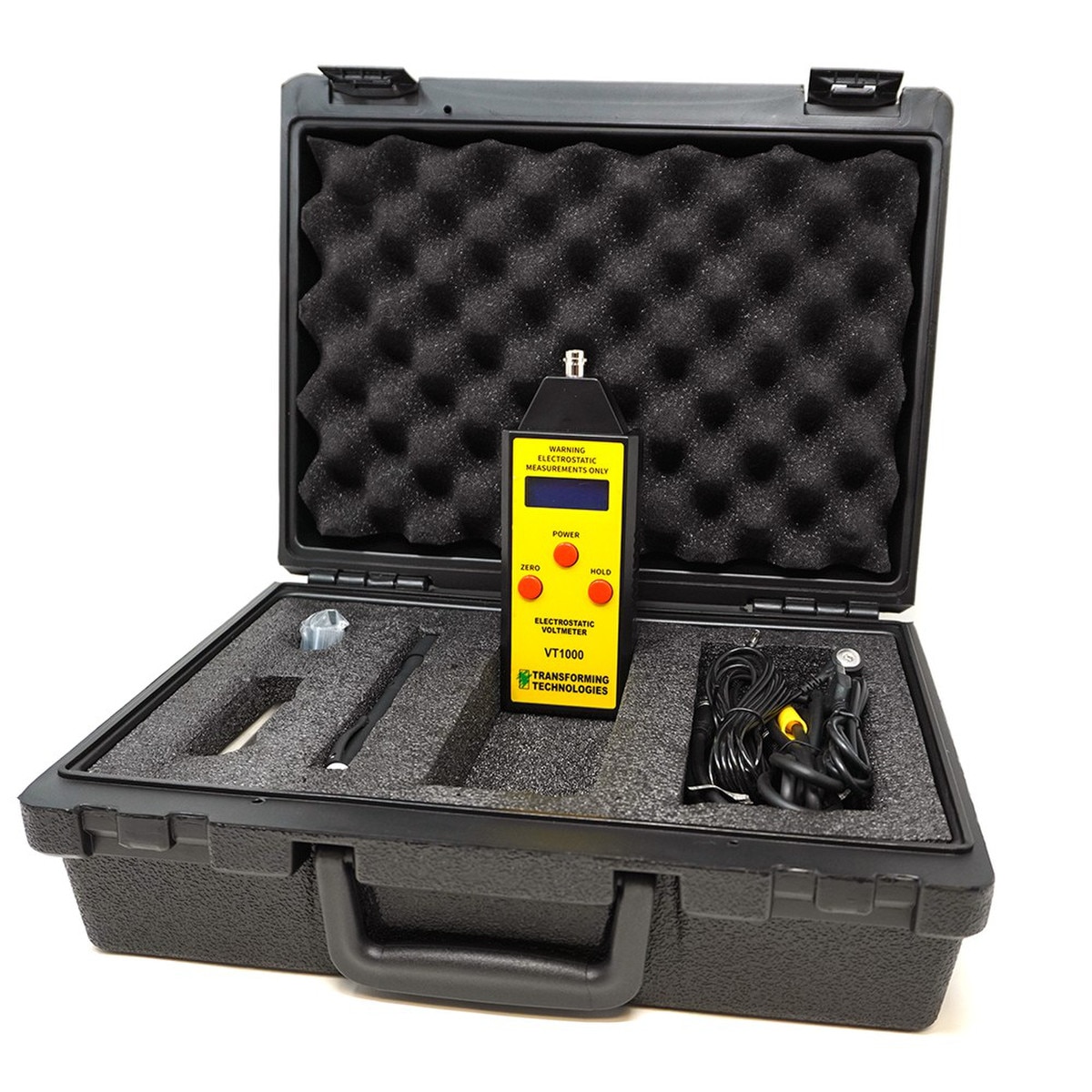

Transforming Technologies VT1000 Electrostatic Voltmeter

The VT1000 handheld surface electrostatic tester is designed to measure the static voltage on the surface of isolated conductors. This instrument can be used in accordance with testing standards including ANSI/ESDS20.20, ANSI/ESDTR53, IEC61340-5-1, JESD625-B, GJB3007. The VT1000 is easy to use, highly reliable and can be used to measure the charge accumulation during manufacturing, transportation, and testing. It can be used in a variety of applications include engineering, maintenance, quality control, incoming material inspection, manufacturing and training, among others. The tester is designed with a long probe, which provides flexibility and makes it suitable for applications inaccessible for typical large and heavy handheld electrostatic testers. By changing different probes, single-point and different surface area measurements can be performed to achieve higher voltage resolution. A hand-held probe is included in its standard configuration, which can be used to test human walking voltage.

Features:

• Hand-Held, Easy-To-Use Meter to measure voltage on surfaces such as isolated conductors
• Applications include engineering, maintenance, quality control, material inspection, and manufacturing

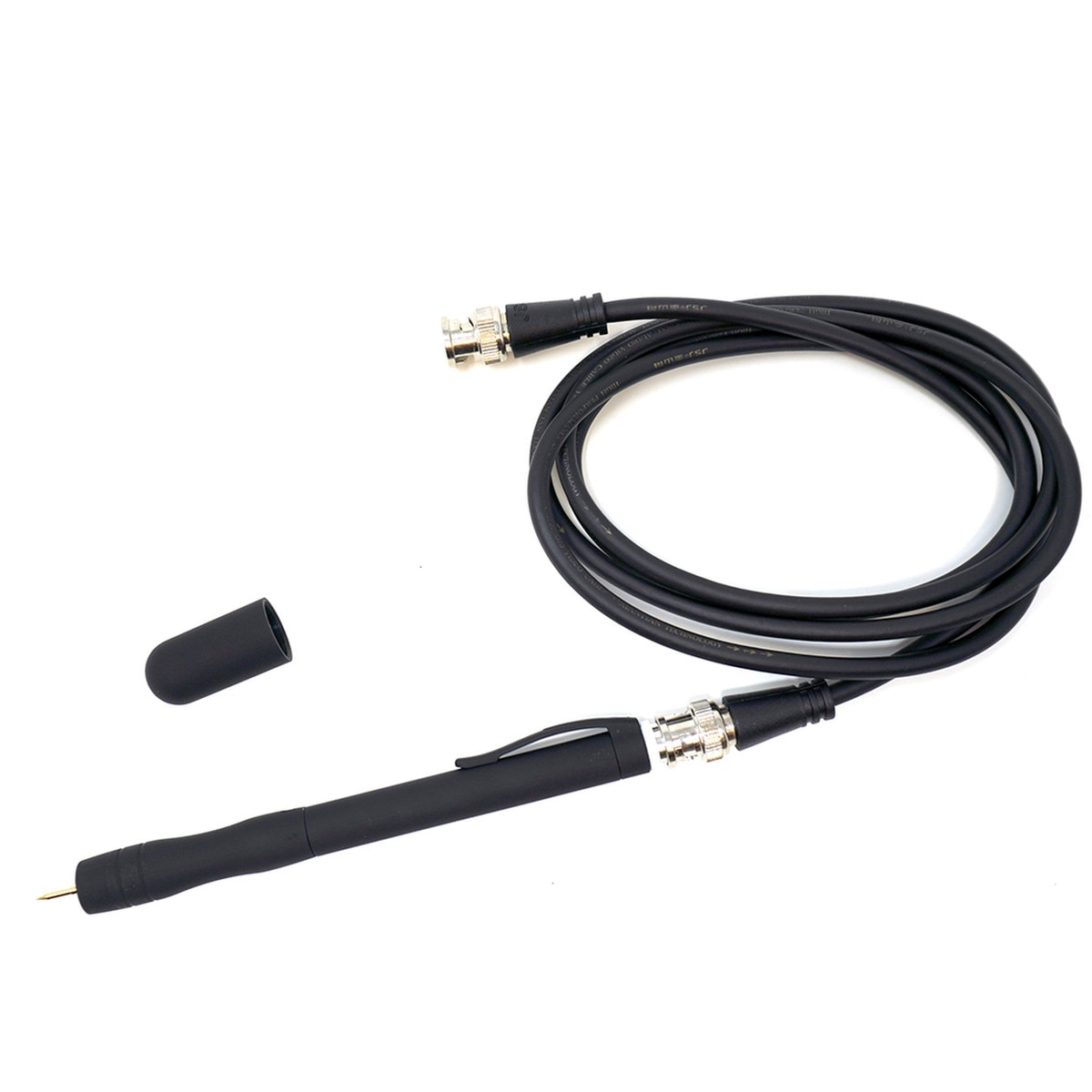

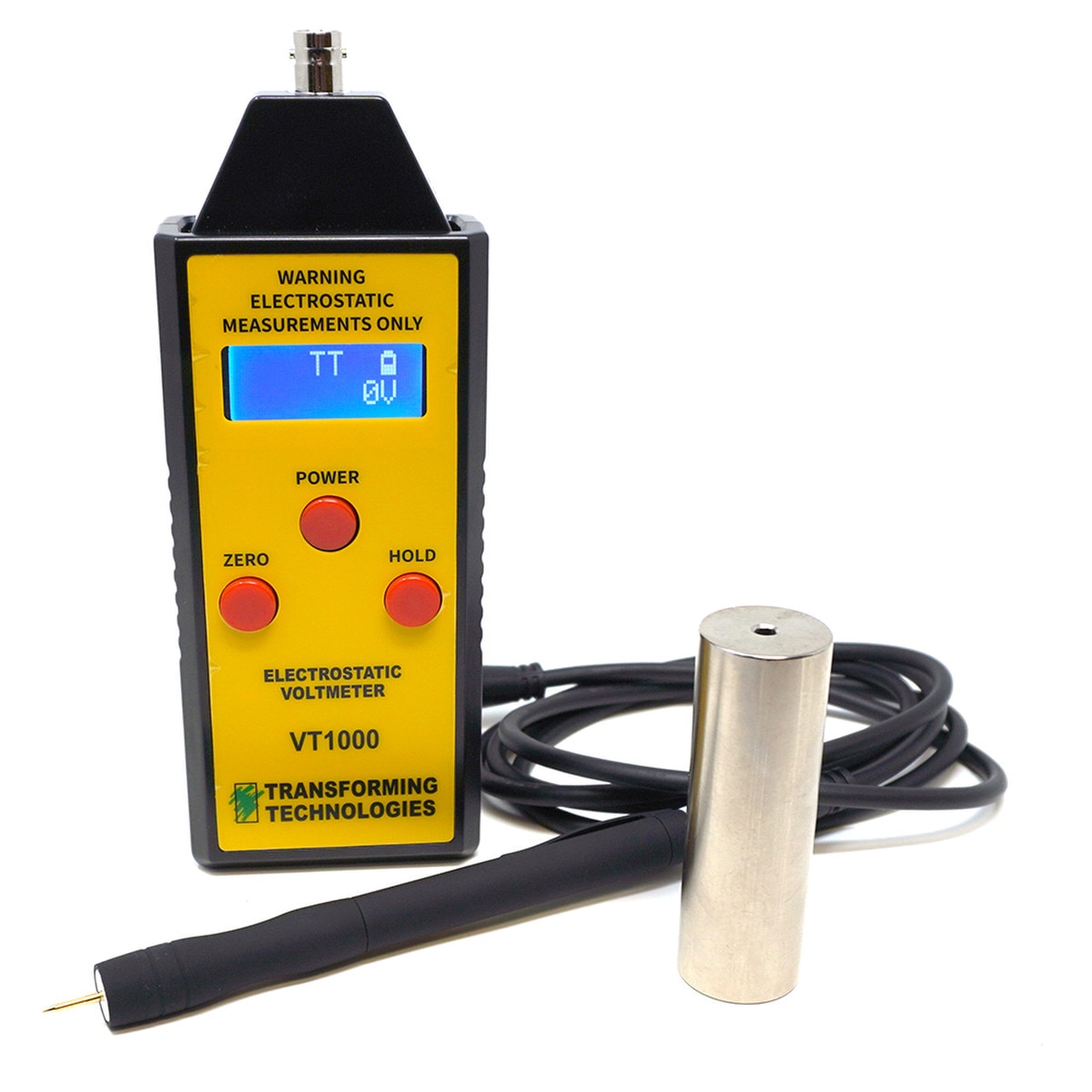

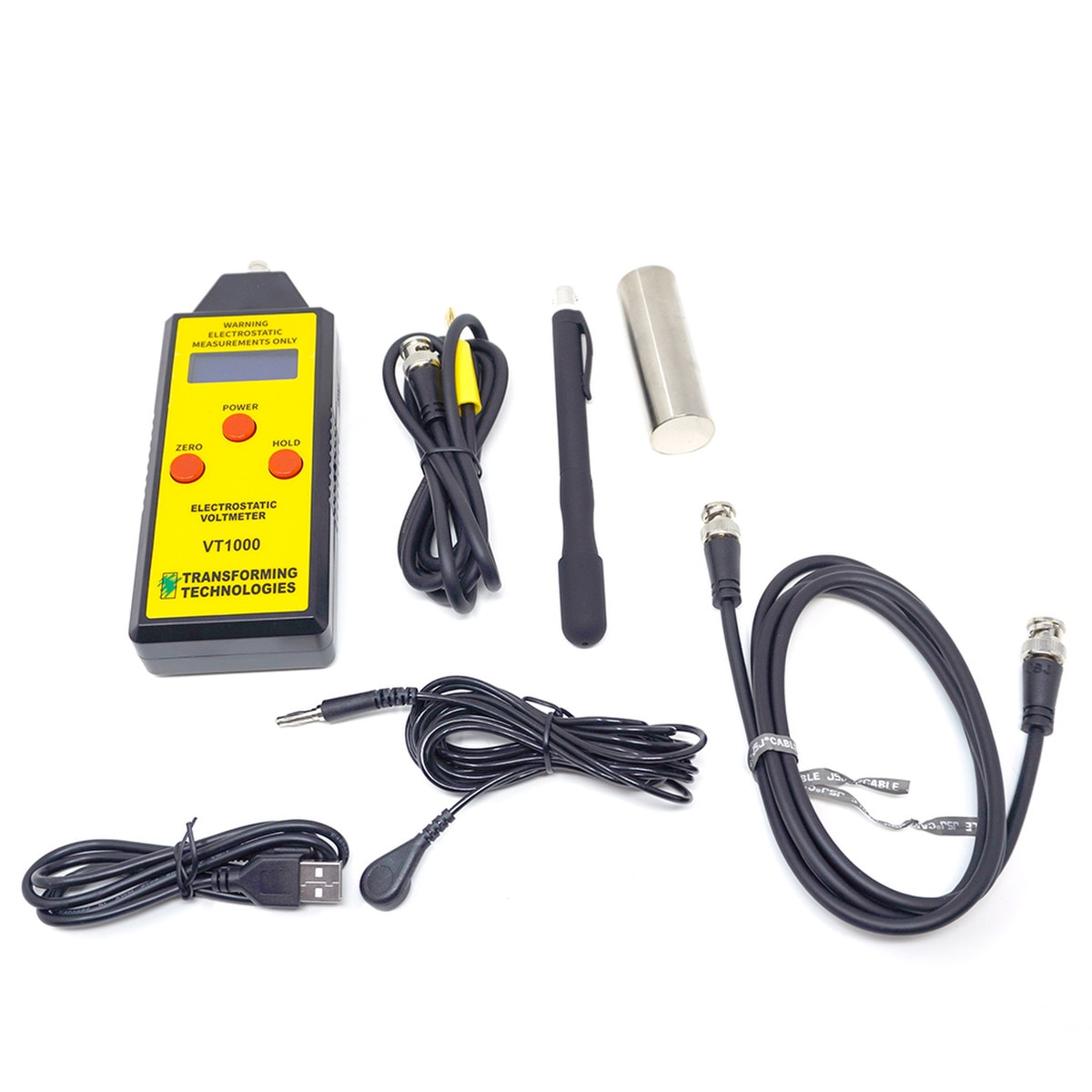

• Two Probes: Long, single point probe and handheld probe

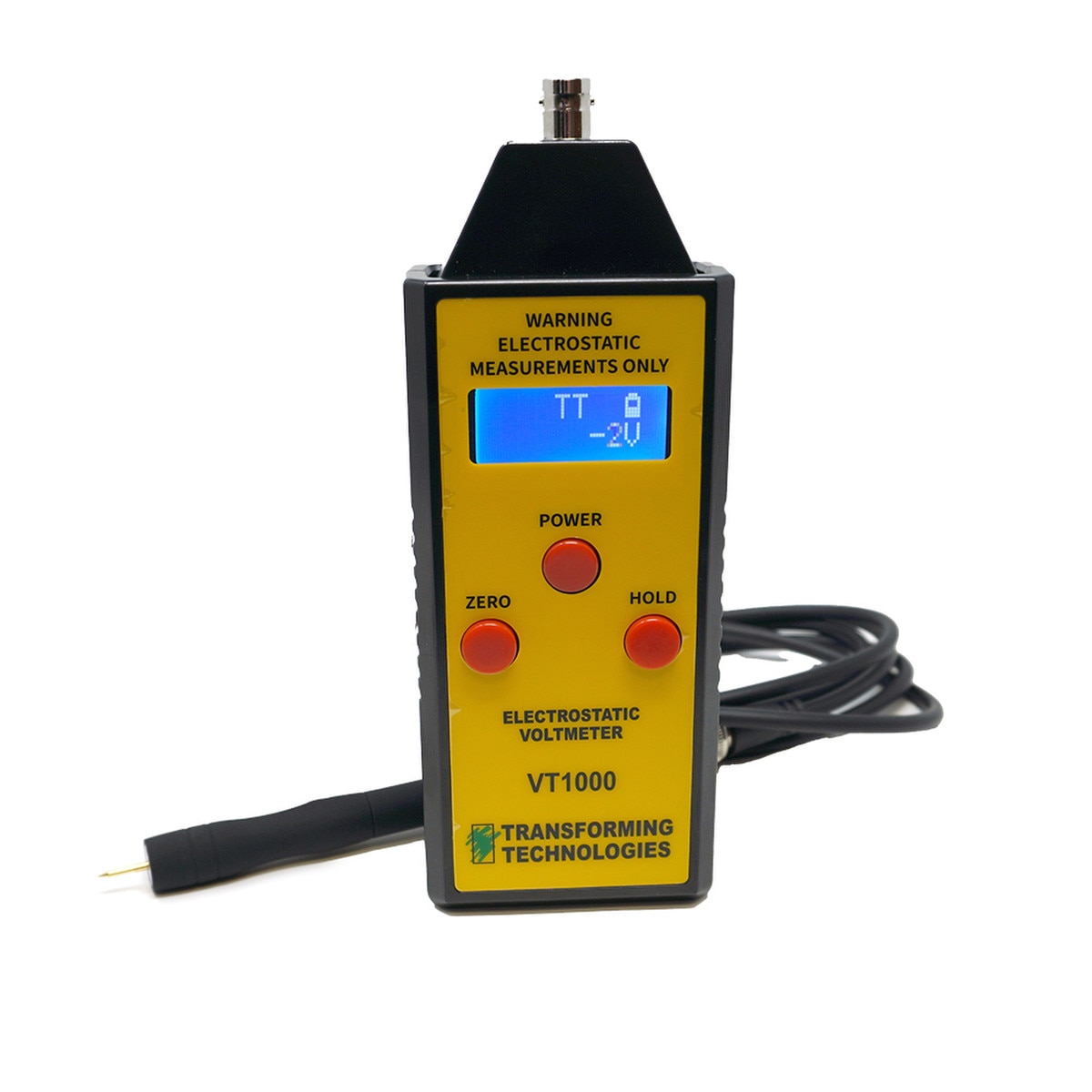

• LCD screen displays information, hold function stores the max & min measurement values
• Display data into a waveform diagram with optional software
• Download the Spec Sheet

Applications:

The OhmMetrics VT1000 kit tests the voltage accumulation for ESD compliance accordance with ANSI ESD20.20, IEC 61340-4-1, IEC 61340-2-3 and IEC 61340-4-5.
