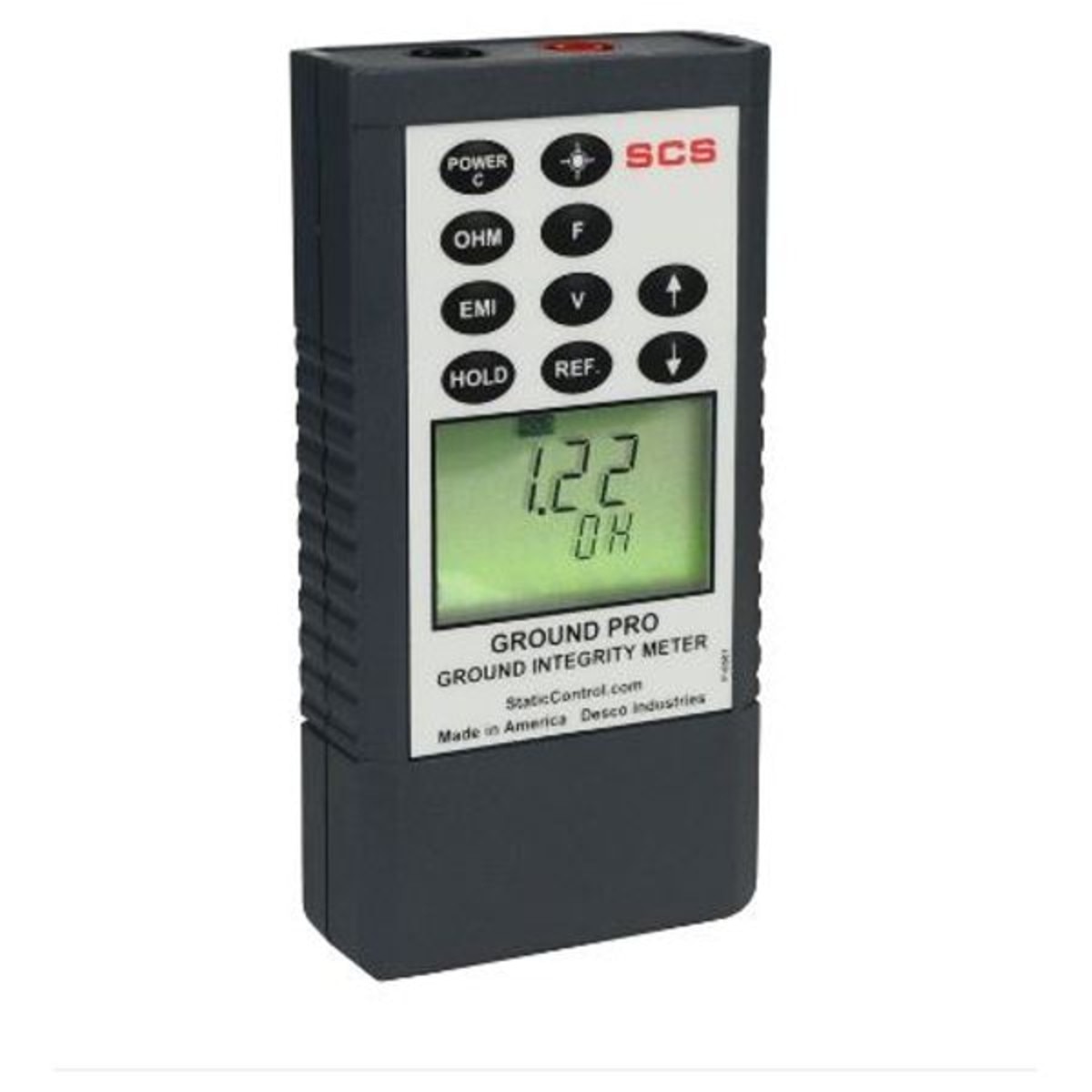

SCS CTM051 Ground Pro Integrity Meter

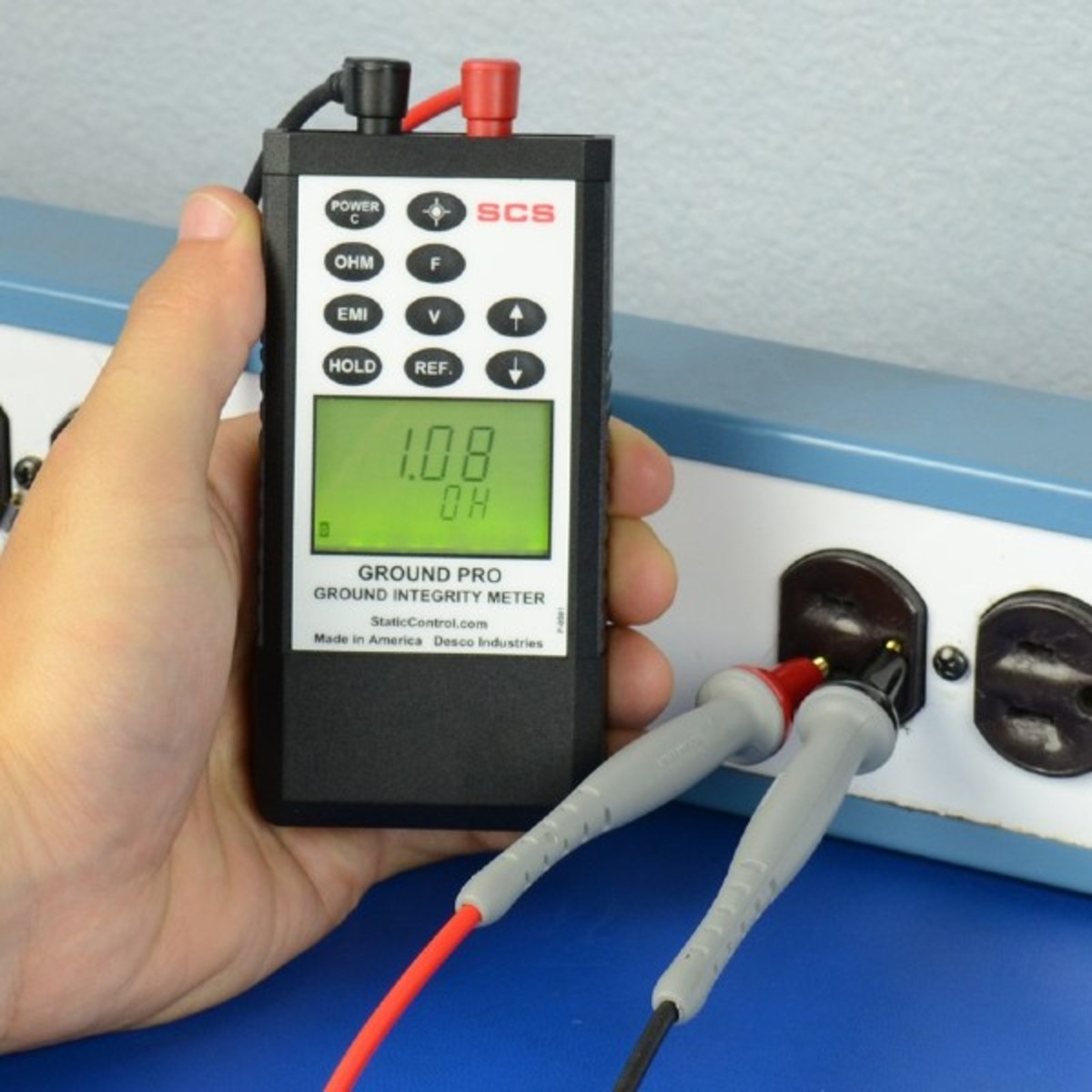

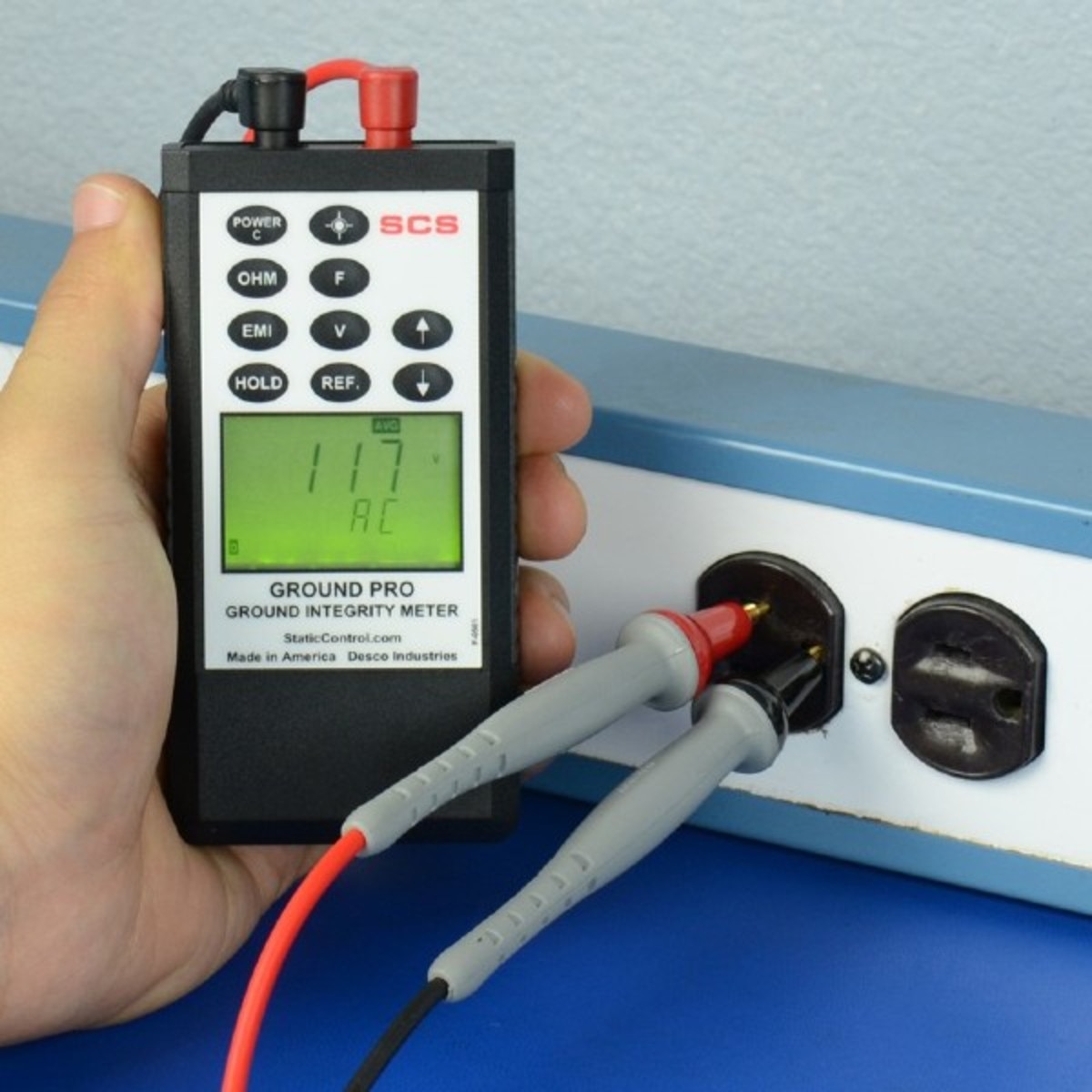

SCS Ground Pro Ground Integrity Meter is an essential tool for anyone concerned with obtaining proper grounding of equipment during installation, maintenance, and throughout regular use. This dedicated meter has multiple features to verify critical grounding parameters in any facility. It measures ground impedance in accordance with ANSI 6.1 and ANSI/ESDA S20.20 standards. Because data integrity is essential, this monitor provides accurate measurements of ground impedance even when ground noise is present — an area in which many instruments fail. It also measures AC and DC voltage on the ground while separately measuring high-frequency voltage (EMI), to aid in performing diagnostics of equipment malfunctions and lockups.
- Built-in alarm alerts personnel of potentially dangerous voltage
- Measures high-frequency noise (EMI) on grounds in a broad frequency range

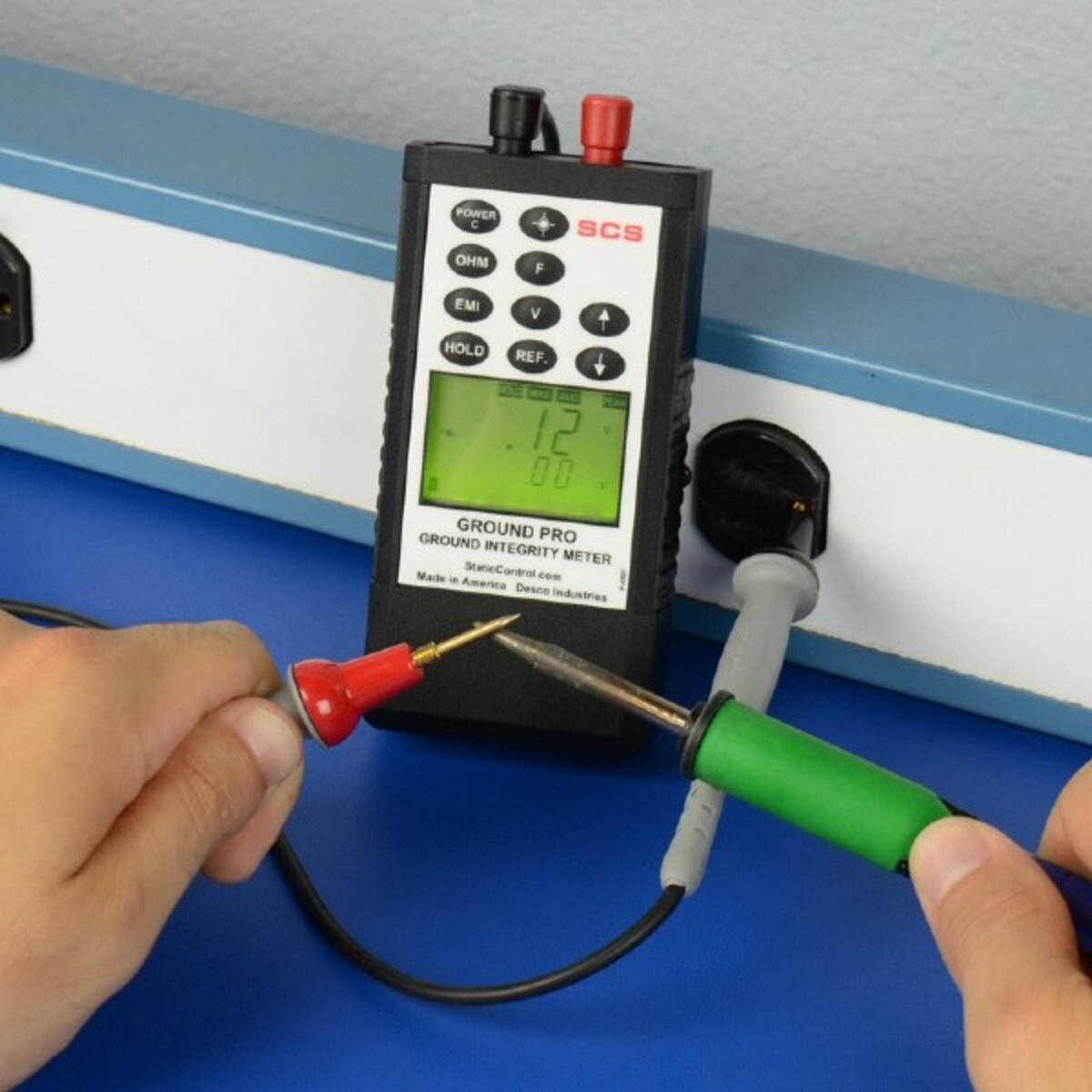

- Accurately measures soldering iron tip performance in regards to the resistance between the soldering iron tip and the ground reference, and the tip voltage which minimizes component damage from EOS/ESD during soldering or desoldering activities
- NIST Calibrated with Certificate Included
