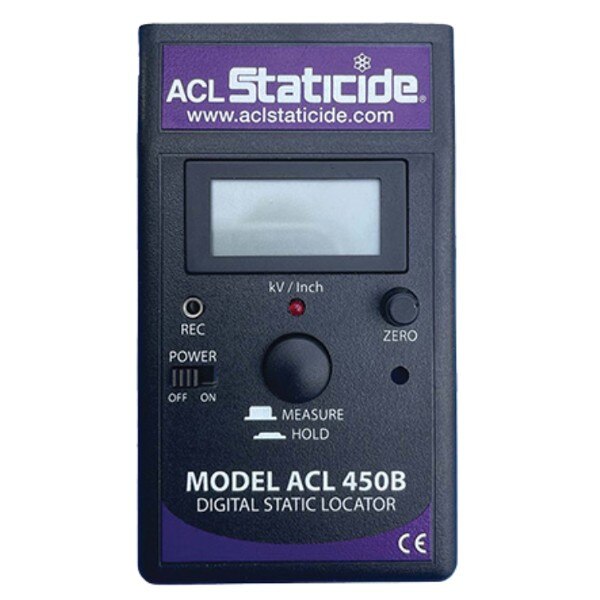

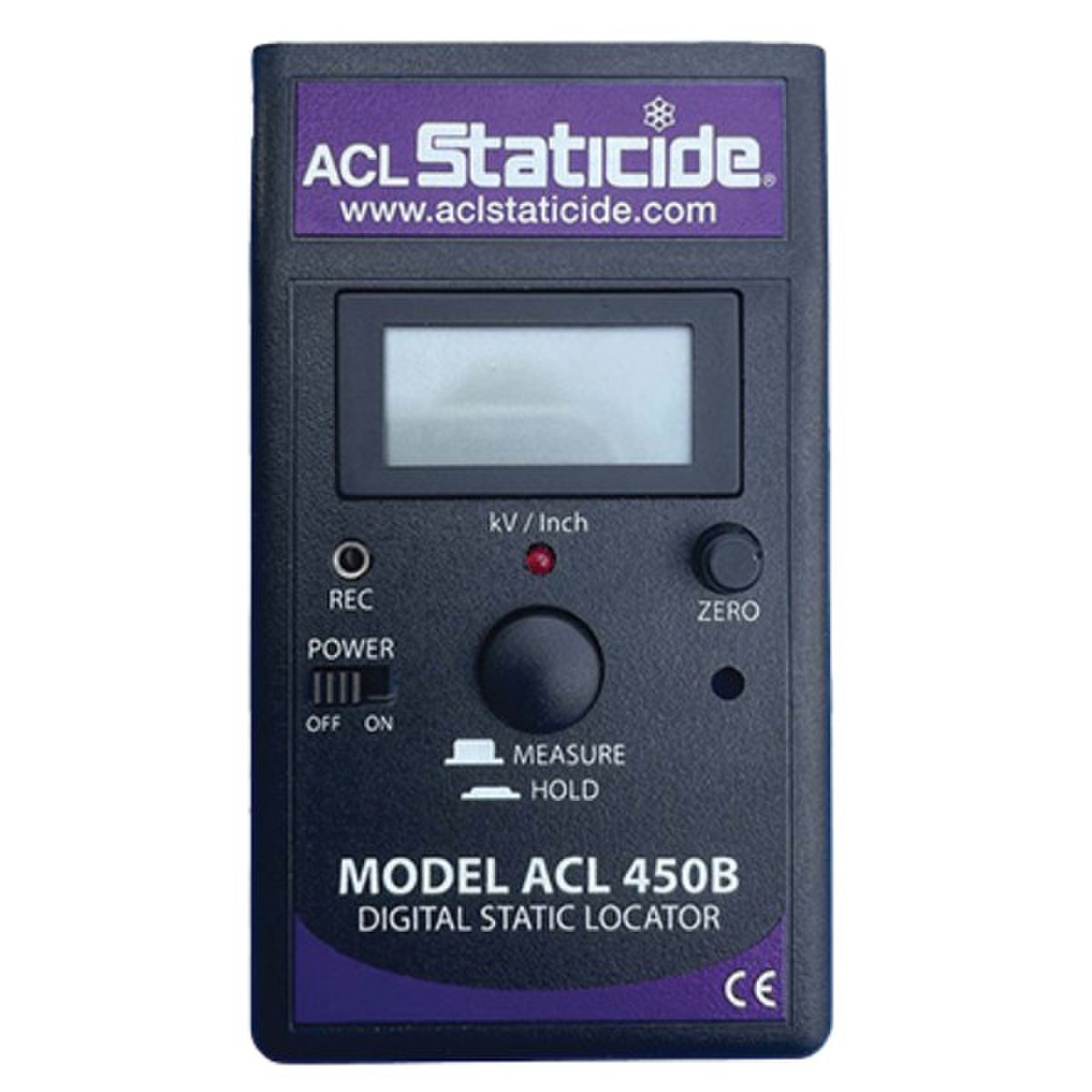

ACL 450B Digital Field Meter with Case

The ACL Staticide 450B Digital Static Locator is ideal for determining the source of electrostatic charges in areas where static is of concern, particularly in ionized environments.  Unlike other field meters, the chopper-stabilized circuitry of the ACL450B is immune to interference caused by ionizers.  This handheld field meter can be used to perform static surveys and evaluate charge accumulation in electronic manufacturing.  It is also applicable in industrial operations such as converting, printing, packaging, and plastics processing.  The meter's ability to make consistent and accurate measurements makes it perfect to use in electronic component production and assembly areas, textiles, and engineering labs.

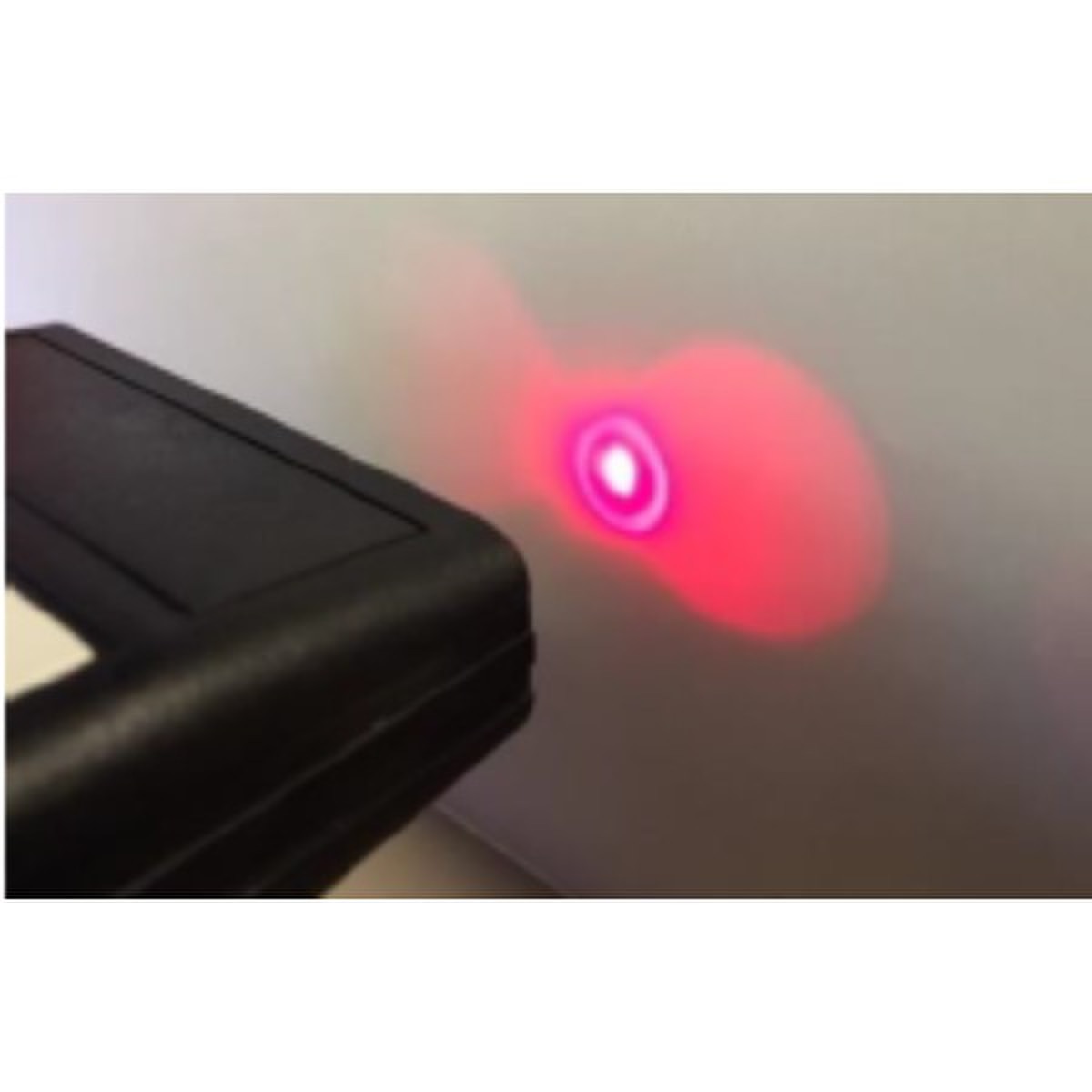

The Measure/Hold button enables test capturing by locking data at an instant.  A pulsing beam allows for precise measurements at a 1-inch distance in the voltage range of +/- 19.99 kV.  For long-term monitoring, the 2.5mm output jack provides easy interfacing with a recorder, oscilloscope, or analog automated data acquisition system.  A charged plate adapter is available for testing ionizing systems.

Ideal for the following applications:

• Electronic packaging
• Cleanrooms
• Medical products
• Plastics formulation
• Military requirements
• R&D materials
• Textiles
• Materials engineering
• Static-safe requirements

Features:

• Accuracy +/- 5% of reading
• Ranges: 0 +/- 19.99 kV at 1 inch
• Display: LCD, 3.5 digit with auto polarity readout
• Recorder output for analog data collection
• Weight: 5 ounces (with Battery)
• Size: 2.4" x 4.2" x 0.9" (6.1 x 10.7 x 2.3 cm)
• CE mark
