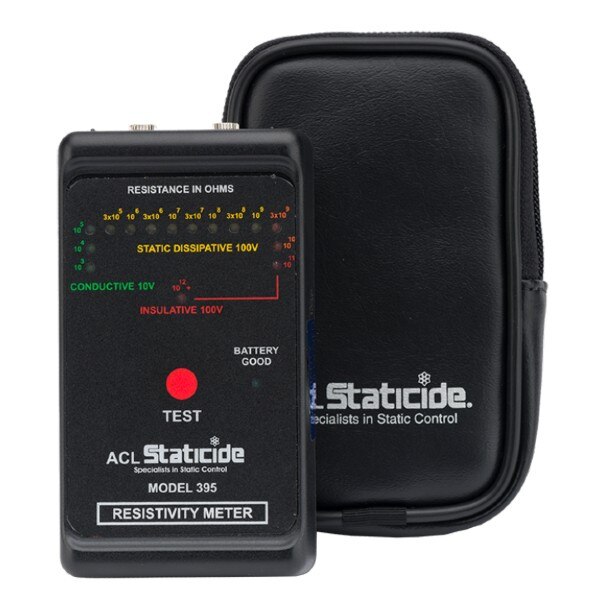

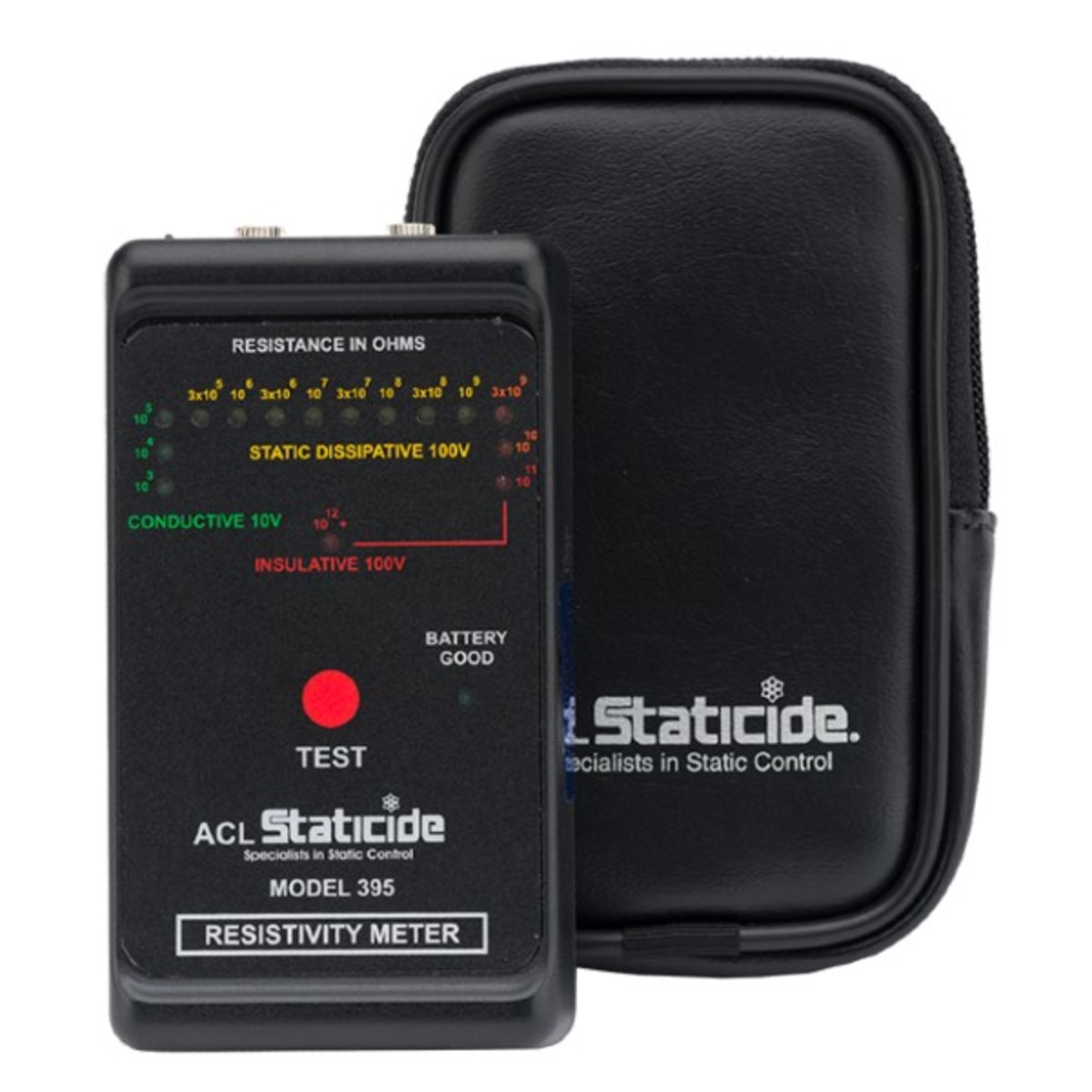

ACL 395 Surface Resistivity Meter with Carrying Case
Description
The ACL 395 handheld meter features sophisticated circuitry that produces higher accuracy than other pocket-sized meters. This allows for the same advantages as megohmmeters, but at an economical price. Utilizing color-coded zones, the LED scale is easy to read and interpret. Half-decade measurements give a closer indication to the actual value. A specially colored "warning" stage alerts the auditor to material approaching the upper end of the dissipative scale so that it can be designated as nearly out of specification.
Unlike other pocket-sized meters, the ACL 395 features conductive rubber rails for the best contact possible. This yields higher accuracy when assessing packaging and assembly lines using the parallel resistivity probe method ASTM D257. When the optional 5 lb probes are used, this meter will comply with IEC 61340-4-1, ANSI/ESDA S4.1 & ANSI/ESDA S7.1 for RTG and RTT testing, making it ideal for auditing in ESD production areas and laboratories.
The flush facade of the ACL 395 is contemporary in design and functional in purpose. The faceplate includes an integrated press button and provides protection for the LED scale. This prevents battery drain and lessens the potential for breakage.
The ACL 395 meter can be used in all facets of material production including engineering, maintenance, quality control, incoming inspection, manufacturing, and research departments for the testing of anti-static mats, floor finishes, paints, wrist straps, smocks, bags, and containers.
Specifications:
Unlike other pocket-sized meters, the ACL 395 features conductive rubber rails for the best contact possible. This yields higher accuracy when assessing packaging and assembly lines using the parallel resistivity probe method ASTM D257. When the optional 5 lb probes are used, this meter will comply with IEC 61340-4-1, ANSI/ESDA S4.1 & ANSI/ESDA S7.1 for RTG and RTT testing, making it ideal for auditing in ESD production areas and laboratories.
The flush facade of the ACL 395 is contemporary in design and functional in purpose. The faceplate includes an integrated press button and provides protection for the LED scale. This prevents battery drain and lessens the potential for breakage.
The ACL 395 meter can be used in all facets of material production including engineering, maintenance, quality control, incoming inspection, manufacturing, and research departments for the testing of anti-static mats, floor finishes, paints, wrist straps, smocks, bags, and containers.
Specifications:
- Accuracy: +/- 0.25 decade in the dissipative range
- Power Supply: 9-volt alkaline battery
- Test Voltage: 10 volts at values less than 10^6, 100 volts at values of 10^6, and greater
- Resistivity Limits: 10^3 - 10^12 ohms per square
- Resistance Limits (when using external probes): 10^3 - 10^12 ohms
- LED Colors: Green 10^3 - 10^6, Yellow 3x10^6 - 10^9, Orange 3x10^9-10^10, Red 10^11-10^12
- Weight: 8.9 oz
- Size: 5 1/4" x 1 3/8" x 3"
