ACL 880 Digital Megohmeter, High Precision Audit Kit

(0)No Reviews yet
$1,518.15
SKU: 880

Description

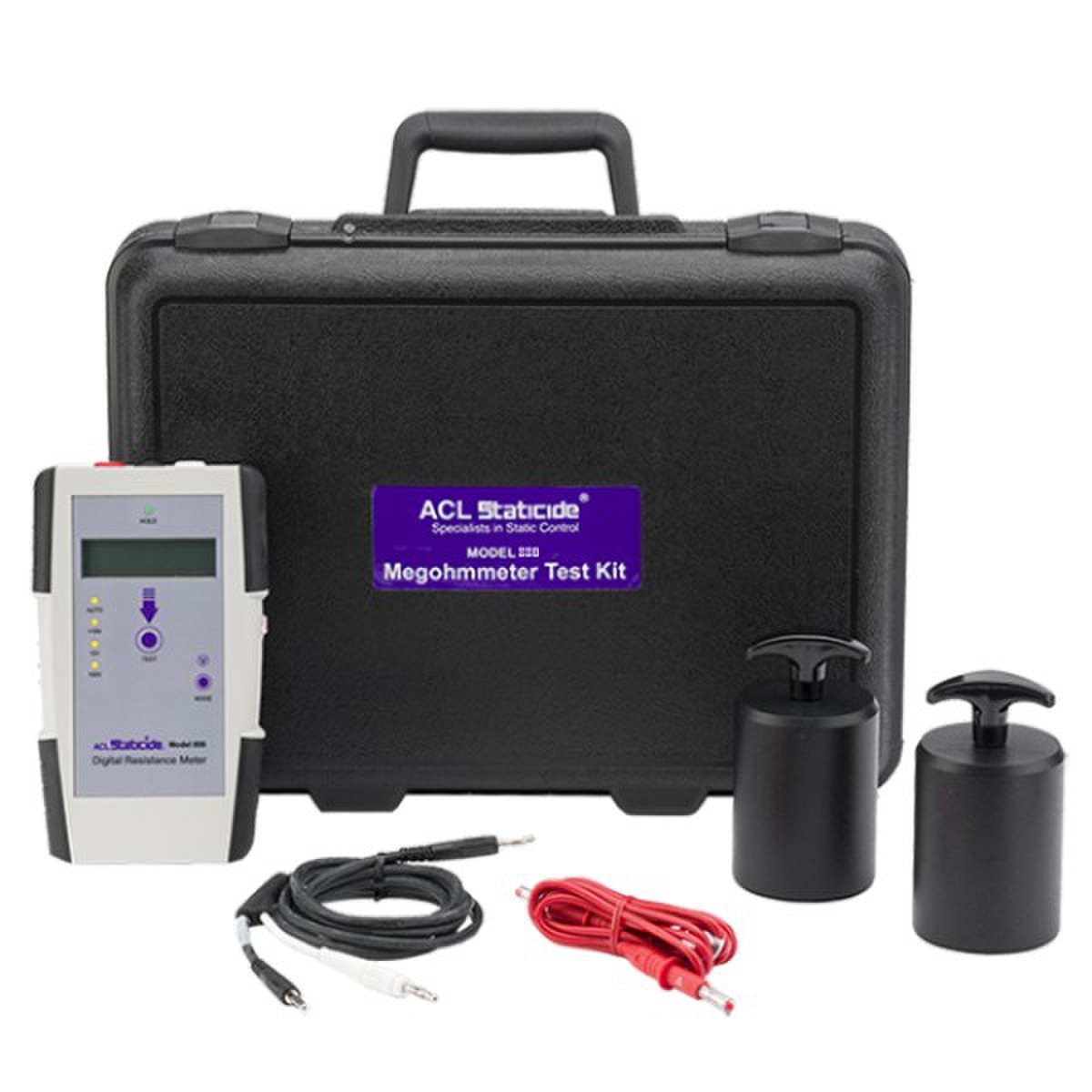

The ACL 880 Digital Megohmmeter is a highly accurate and dependable audit kit that is designed to test static dissipative surfaces for electrical resistance according to industry standards.  Point-to-point (RTT) and resistance-to-ground (RTG) tests are easy to perform with the calibrated five-pound powder-coated electrodes.

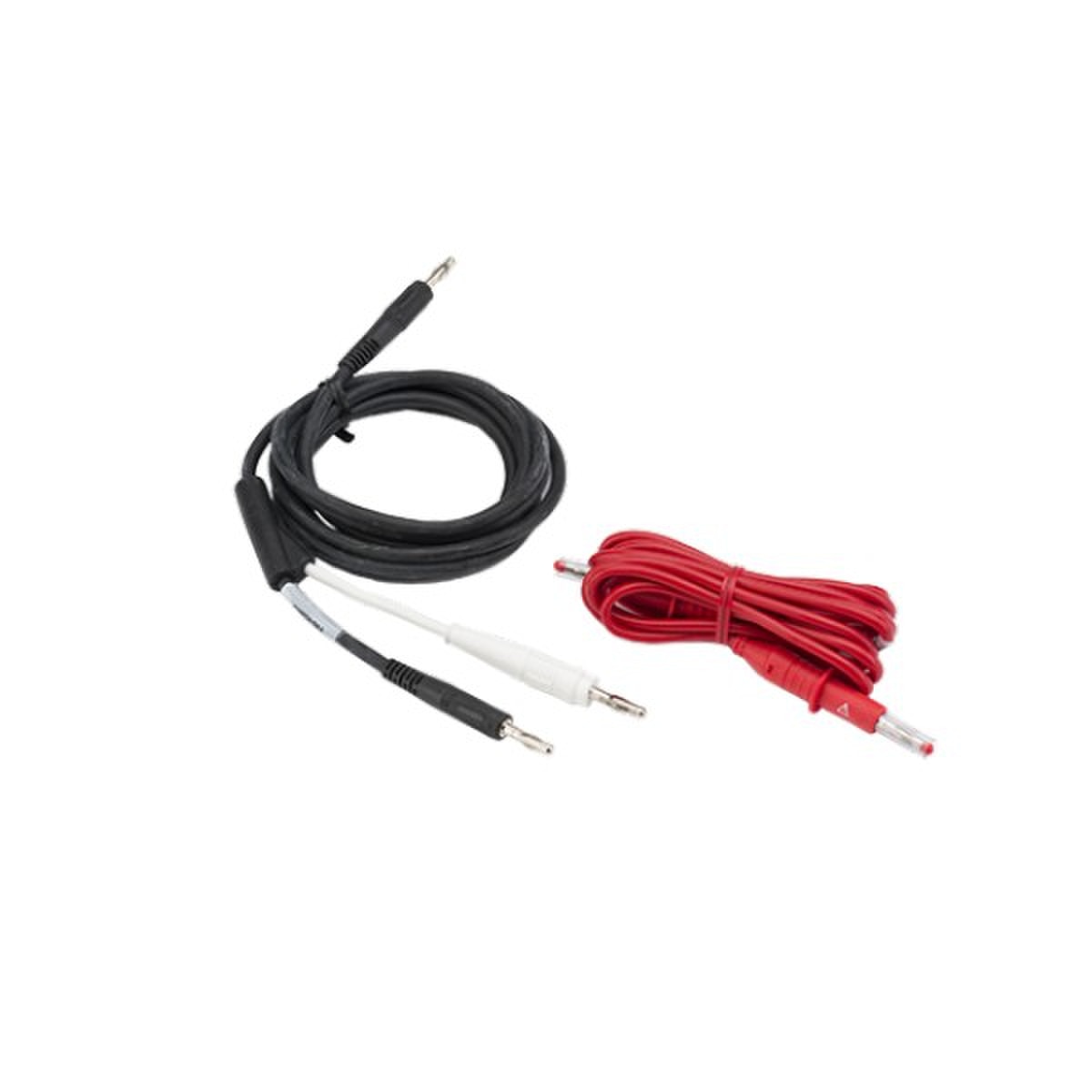

Unlike analog meters with LEDs, test results are shown in actual precise numeric value rather than decade value on a logarithmic scale.  Accuracy is increased by eliminating electronic noise with ultra-high-tech, heavy-duty shielded cables.  Auditing is simplified by operating the tester in a choice of modes:  automatic for 10-second measurement hold or continuous for uninterrupted inspection testing.  Test voltages can be applied manually or automatically.

This meter is suitable to use in any environment using static controlled materials including electrostatic protected areas.

Ideal for the following applications:
  • Electrical device manufacturing
  • EPA audits
  • Maintenance checks
  • Quality control and incoming inspection
  • Static control material production

Features:

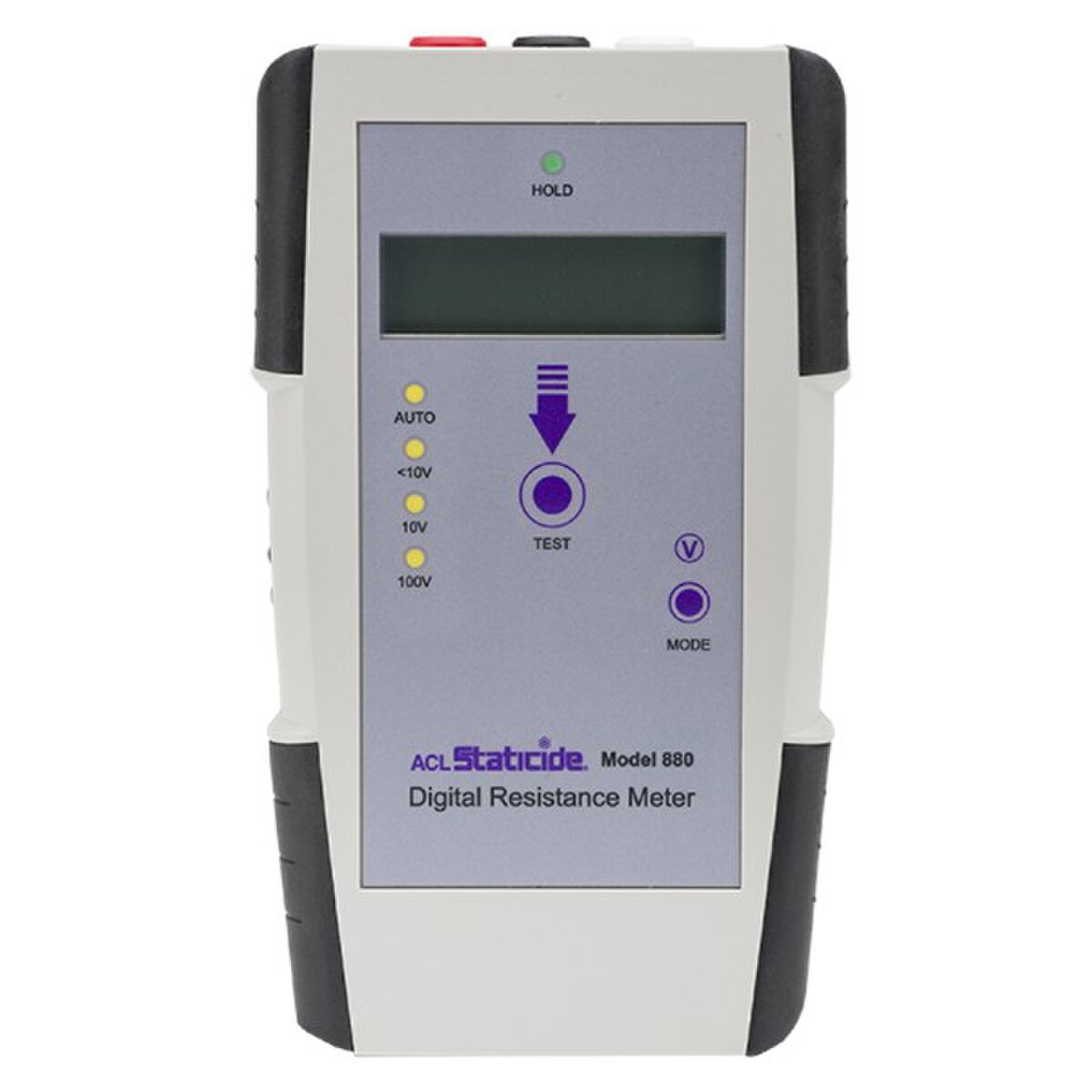

  • Alphanumeric LCD Scale shows the precise value
  • Resistance range: 10^3-10^12 ohms
  • Test voltage range: <10 volt variable: 10^3 - 9.9x10^3 ohms, 10 volt +/- 0.5 volts: 1.0x10^4 - 9.9x10^5 ohms 100 volt +/- <5 volts:  1.0x10^6-9.9x10^12 ohms
  • Accuracy: 10^3 - 10^10 ohms: < +/- 2%, +/- 2 counts, 10^11 - 10^12 ohms: < +/- 10%, +/- 4 counts
  • Measurement operations:
    Automatic: 10-second hold
    Continuous: uninterrupted
    Calibration is traceable to NIST
  • Powered by 9-volt alkaline battery
  • Made in USA
