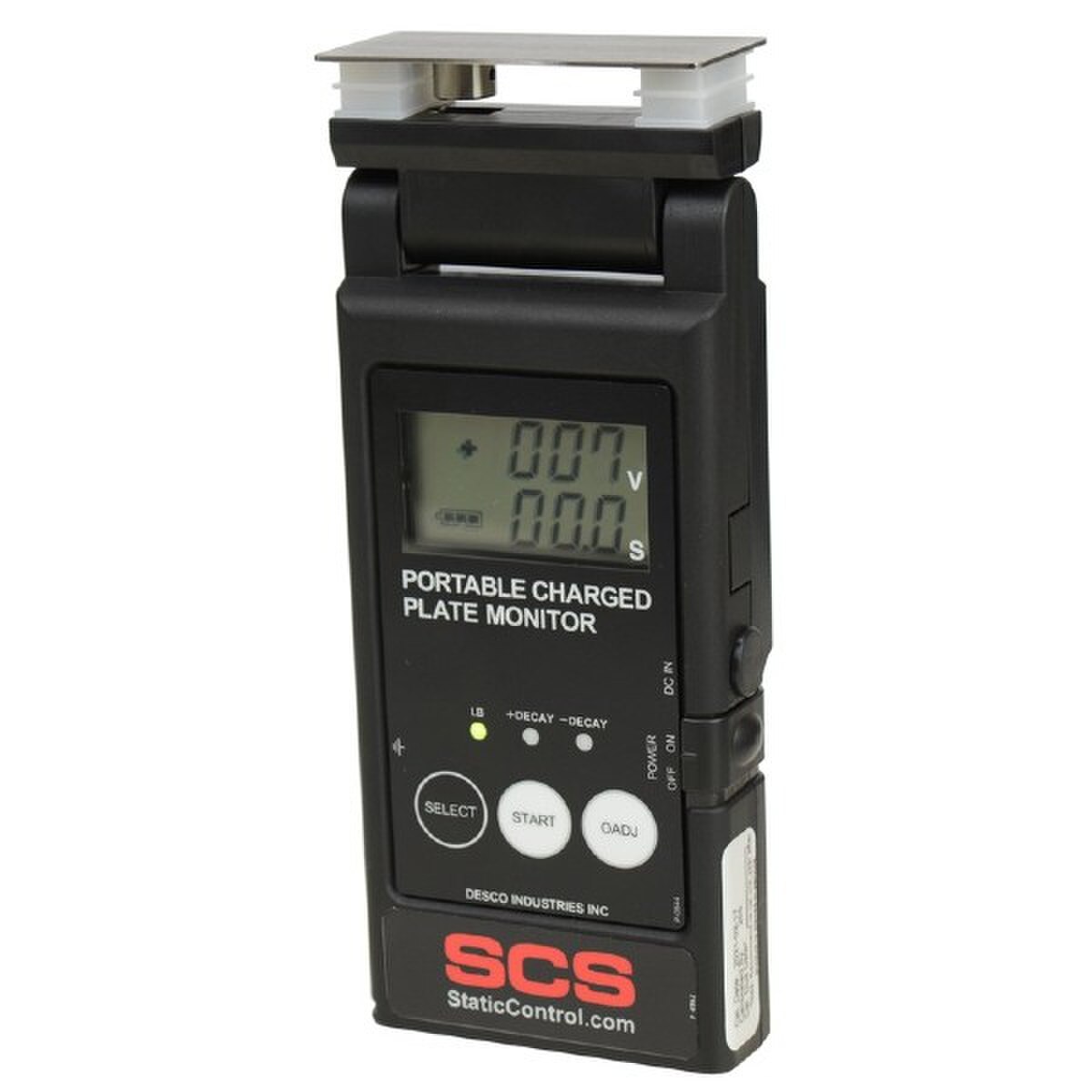

SCS 770720 Portable Charged Plate Monitor
The SCS 770720 Portable Charged Plate Monitor is a handheld meter designed to check the offset voltage and discharge times of air ionizers per ANSI/ESD SP3.3 and ESD TR53. The meter’s integrated timer measures decay rates from ±1000V to ±100V to determine the ionizers’ ability to neutralize both positive and negative electrostatic charges within the coverage area. The 180-degree rotary head with 2.75" x 1.25" plate allows the operator to read the display at various angles.
- Zero point adjustment button ensures measurement accuracy & repeatability
- Battery Operated

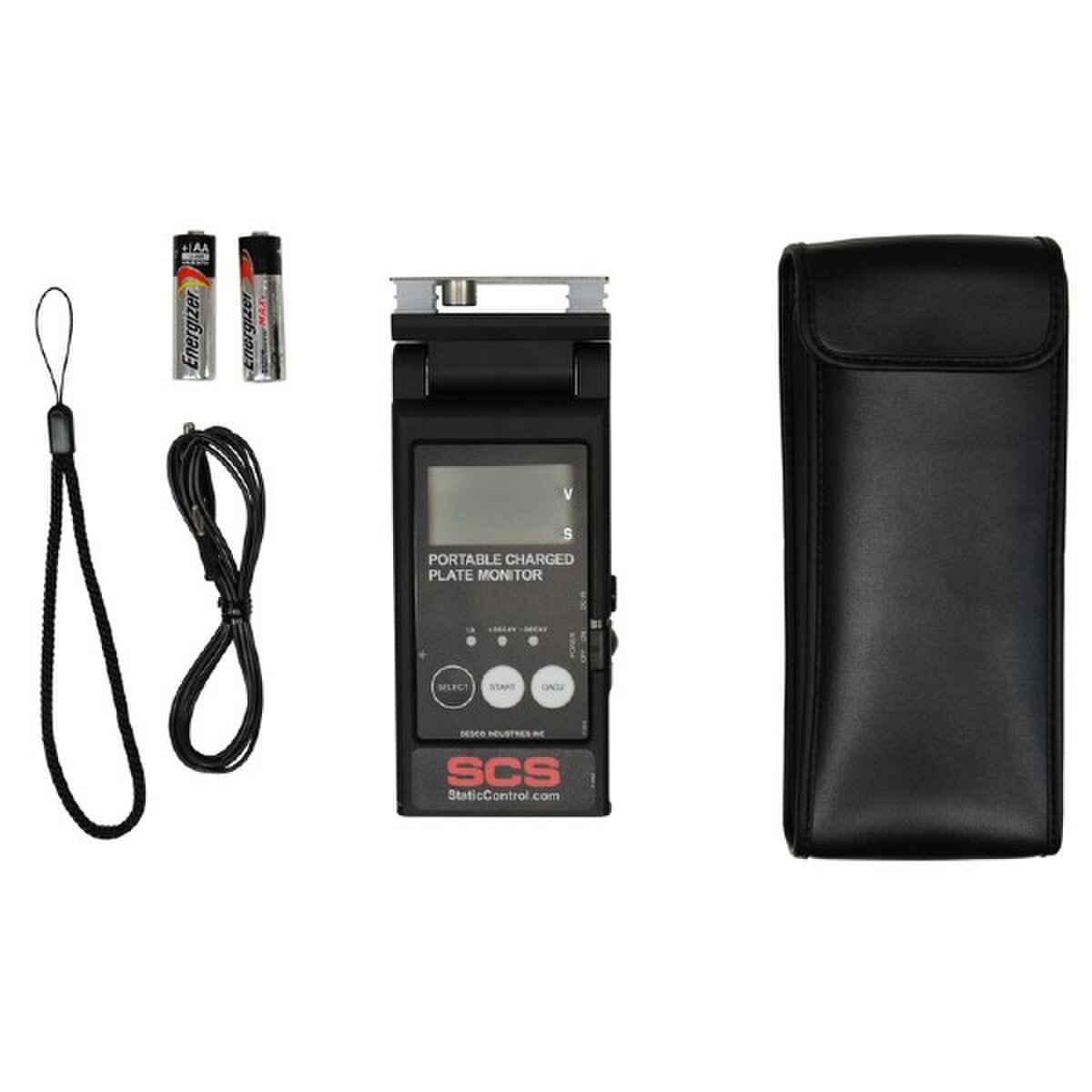

- Includes ground cord and soft carrying case
- NIST Calibrated & includes certificate
- Download the Spec Sheet
