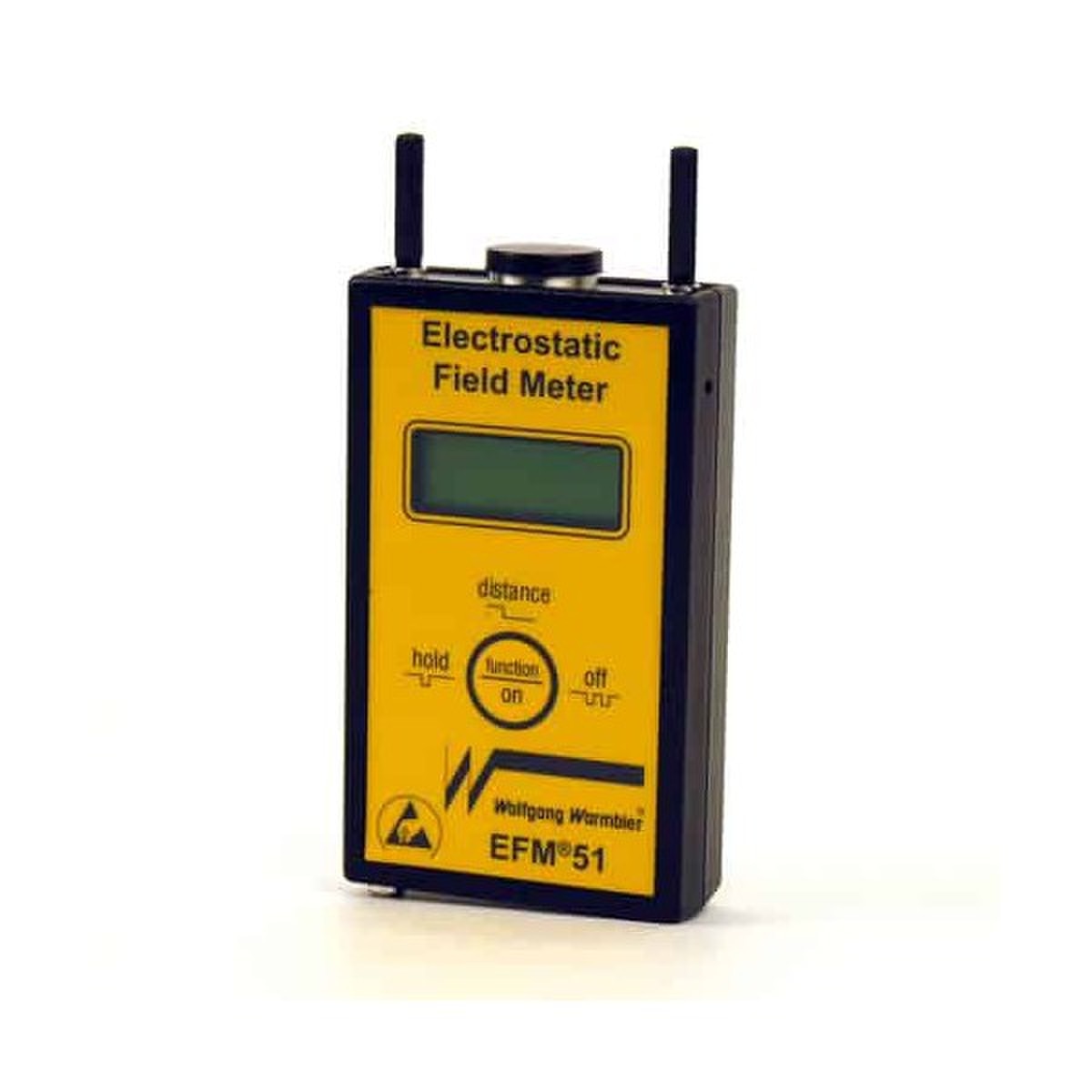

Warmbier 7100.EFM51 Electrostatic Field Meter
Description
The EFM51 is a full-featured hand-held field meter used to perform static surveys and evaluate charge accumulation in electronic manufacturing and in industrial operations. The electrostatic field strength value (V/m) will automatically be translated to the electrostatic potential (V) according to the preset distance. An additional field strength mode is also available. EFM51 may be supplemented by the EFM51.CPS “Charge Plate Set” and can also be used to check and verify ionizer efficiency and offset voltage. The kit measures static decay times from +/- 1.000volts to +/- 100volts.
FEATURES:
- Portable, Battery Powered Meter
- Digital LCD Results Display
- Test Ionizers with optional CPS Accessory Kit (sold separately)
PRODUCT SPECIFICATIONS:
- Weight: 4.6oz (without battery)
- Test Method: Rotating chopper
- Test Range: OV- +/- 160kV distance mode, 0-800 kV/m field strength mode
- Display: 2 lines, 12 digits alphanumeric LCD display
- Operation: 9V alkaline Battery operated
- Operating Time: Approx 10 hours at continuous operation with alkaline battery
