ACL 306 Two-Point Resistance Meter - Ideal for ESD Packaging
Description

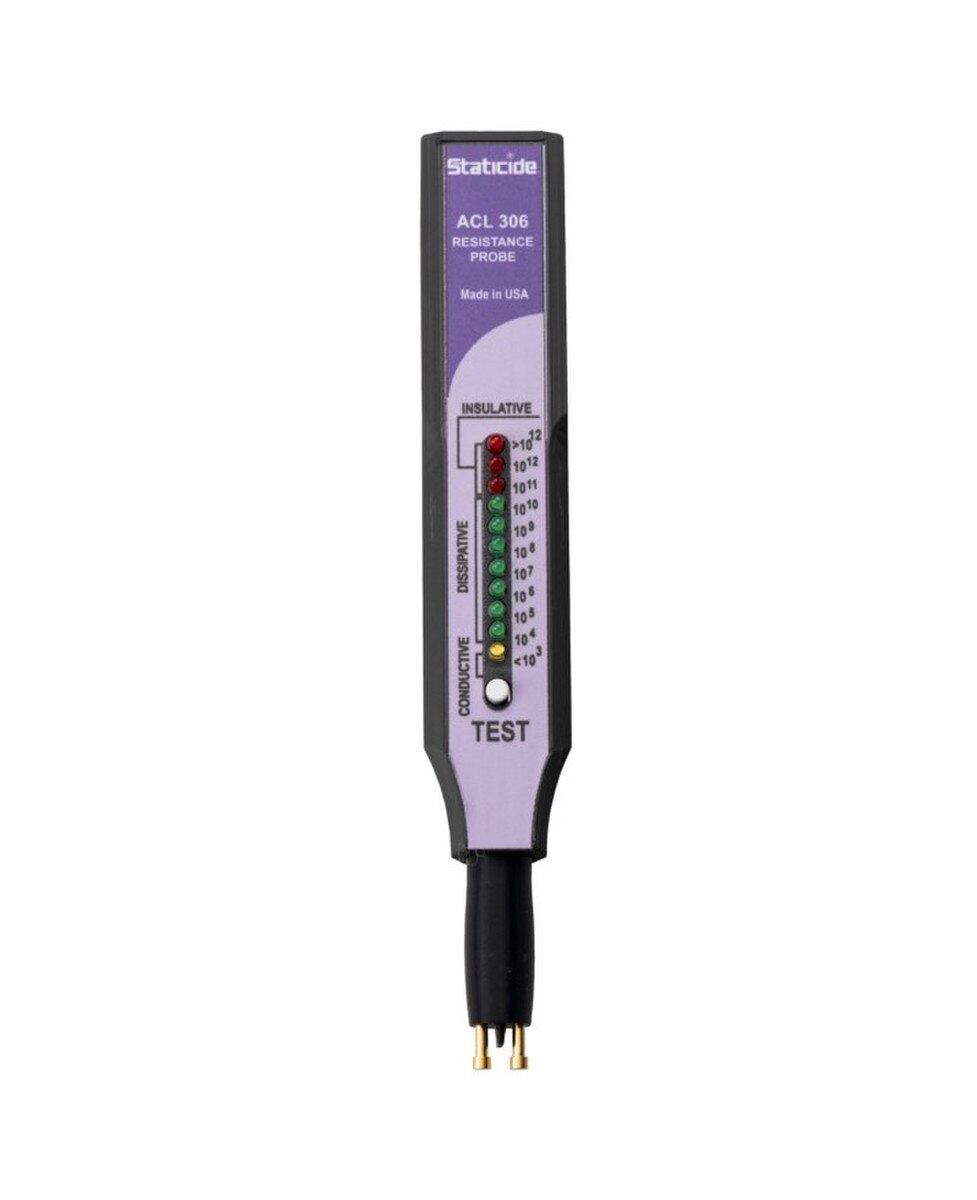

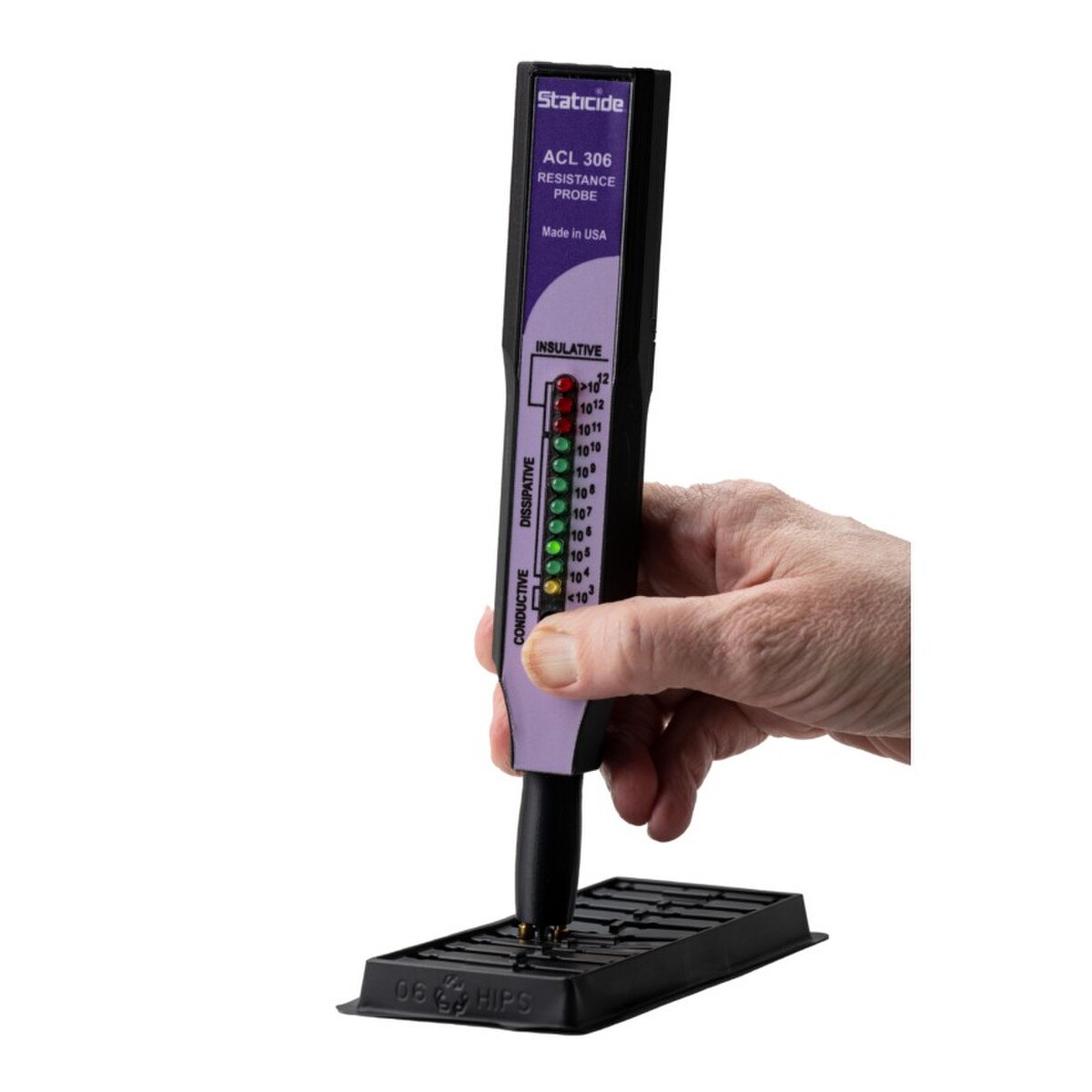

The ACL 306 handheld two-point resistance checker offers an all-in-one solution for those requiring resistance readings in small areas, but do not want to encumber themselves with added wires or a megohmeter. Portable and lightweight, this indicator is perfect for testing ESD packaging with nooks and recesses or any part on the assembly line that is too small for five-pound electrodes.

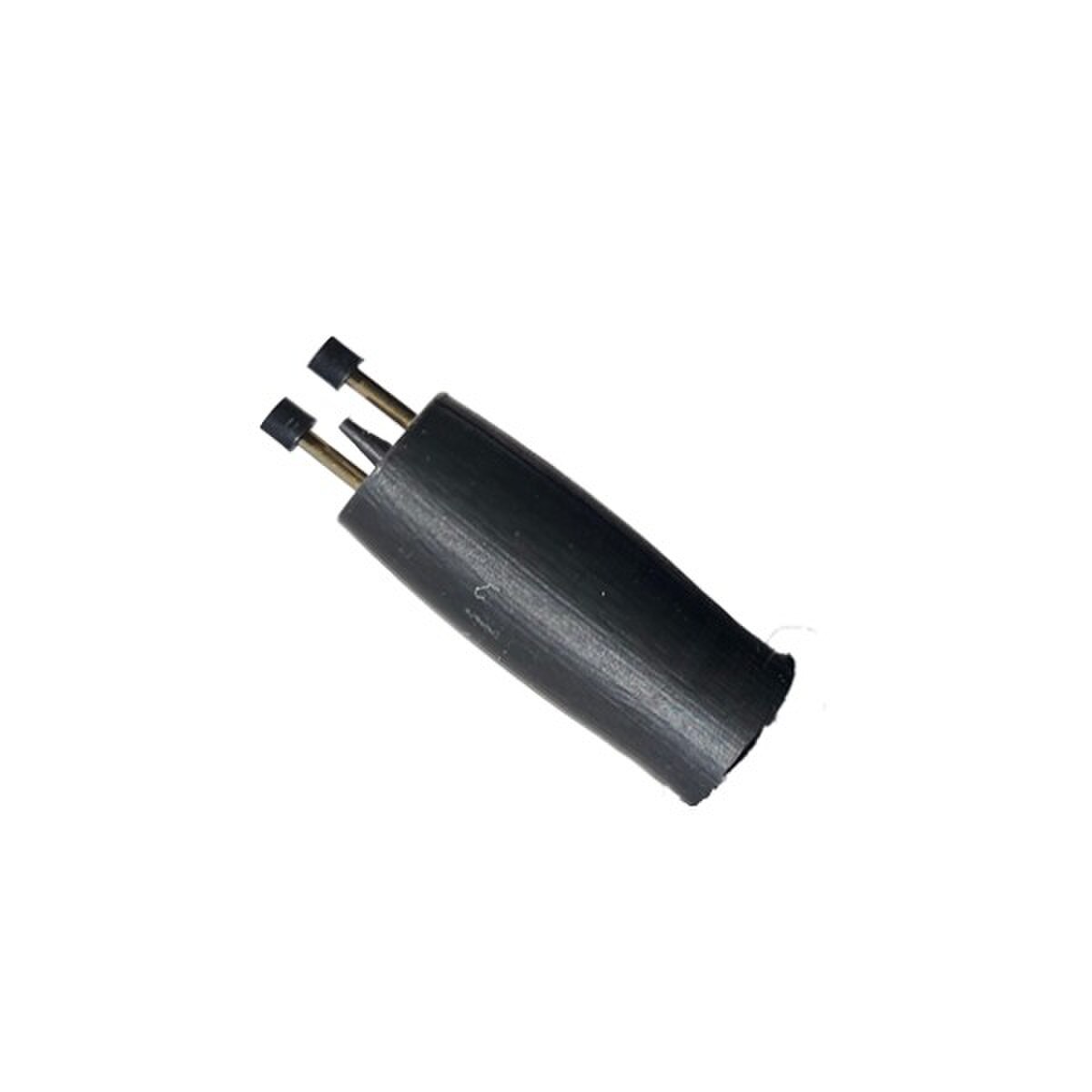

The spring-loaded pogo pins may be used with or without conductive rubber boots. The LED logarithmic scale is quick and easy to read and evaluate.
Applications:
Features:
The spring-loaded pogo pins may be used with or without conductive rubber boots. The LED logarithmic scale is quick and easy to read and evaluate.
Applications:
- ESD packaging and trays
- IC tubes and DIP packaging
- Maintenance checks
- Quality control and inspection
Features:
- Color LED display segments
- Measuring Range: 10e3 - 10e12 hms
- Measures 0.5" wide
- Conductive pogo pins
- Dimensions: 2.8" x 5.1" x 1.4"
- Includes Certificate of Calibration
- Made in the USA
