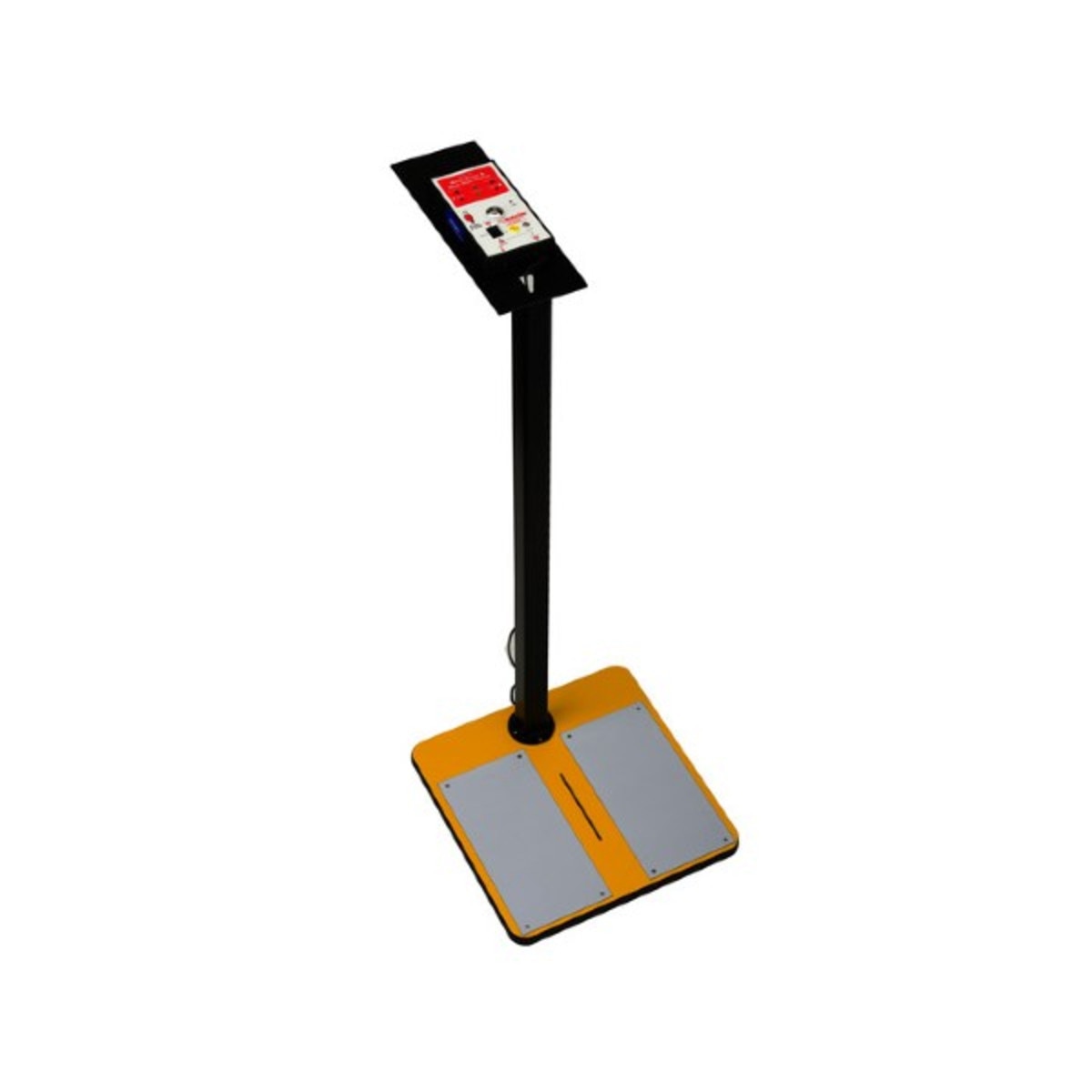

ACL Staticide 781 Economy Combo Tester with Foot Plate & Stand

(0)No Reviews yet
$1,302.60
SKU: 781

Description

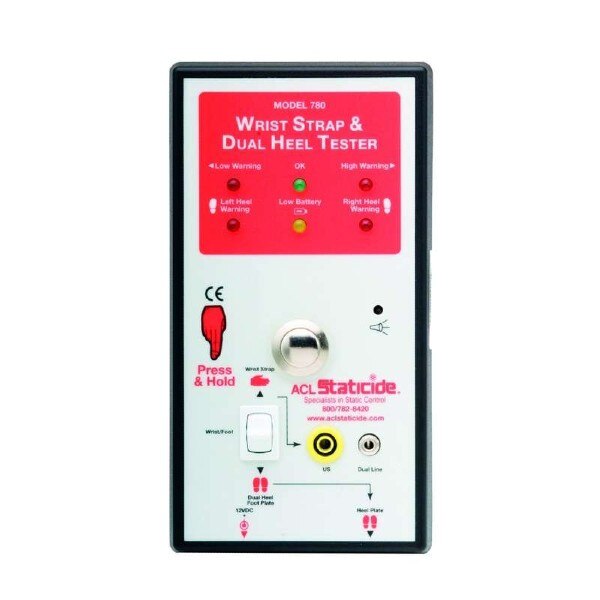

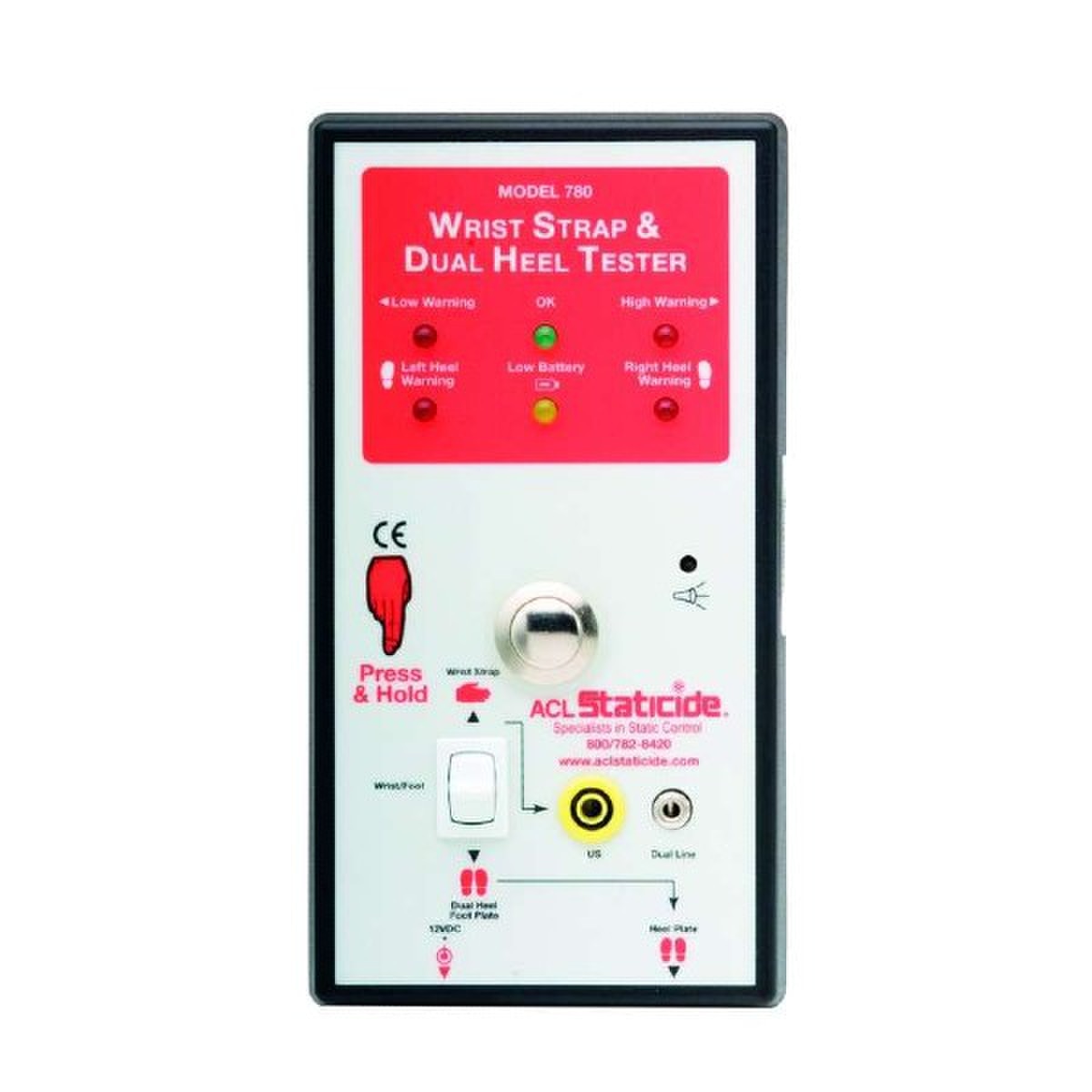

The ACL 781 Economy Combo Tester is an easy-to-use pass/fail unit that tests wrist straps and heel grounders simultaneously in less than three seconds.  With speed, ease, and clarity, the colored LED shows test results.

Ideal for the following applications:
  • Electronic manufacturing
  • Electronic assembly
  • Rework and repair

FEATURES:
  • Accuracy +/- 10% (tester only)
  • Conforms to ANSI/ESD S20.20 standard
  • Environment:  32 degrees F to 100 degrees F (0 C to 38 C); 15% to 95% RH
  • Test voltage: 19 volts DC +/- (open circuit)
  • Adjustable resistivity ranges
  • Includes Tester, Foot Plate & Stand

    Resistivity ranges
    Wrist straps and footwear
    Low range: 500k, 750k ohms
    High range: 2M, 5M, 10M, 25M, 35M, 50M, 75M, 100M

    Optional Accessories
    ACL 746: 1000 megohm setting
    ACL 740: Circuit relay for security doors
    ACL 795: Calibration box for on-site calibrations
