ACL Staticide 780 Economy Combo Tester with Foot Plate

(0)No Reviews yet
SKU: 780
Priced Per: Each | Usually ships within 2-3 days
Brand: ACL Staticide

This item is IN STOCK

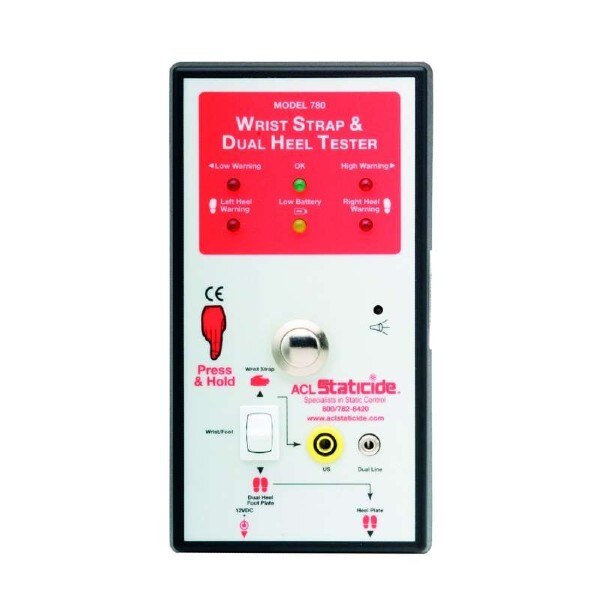

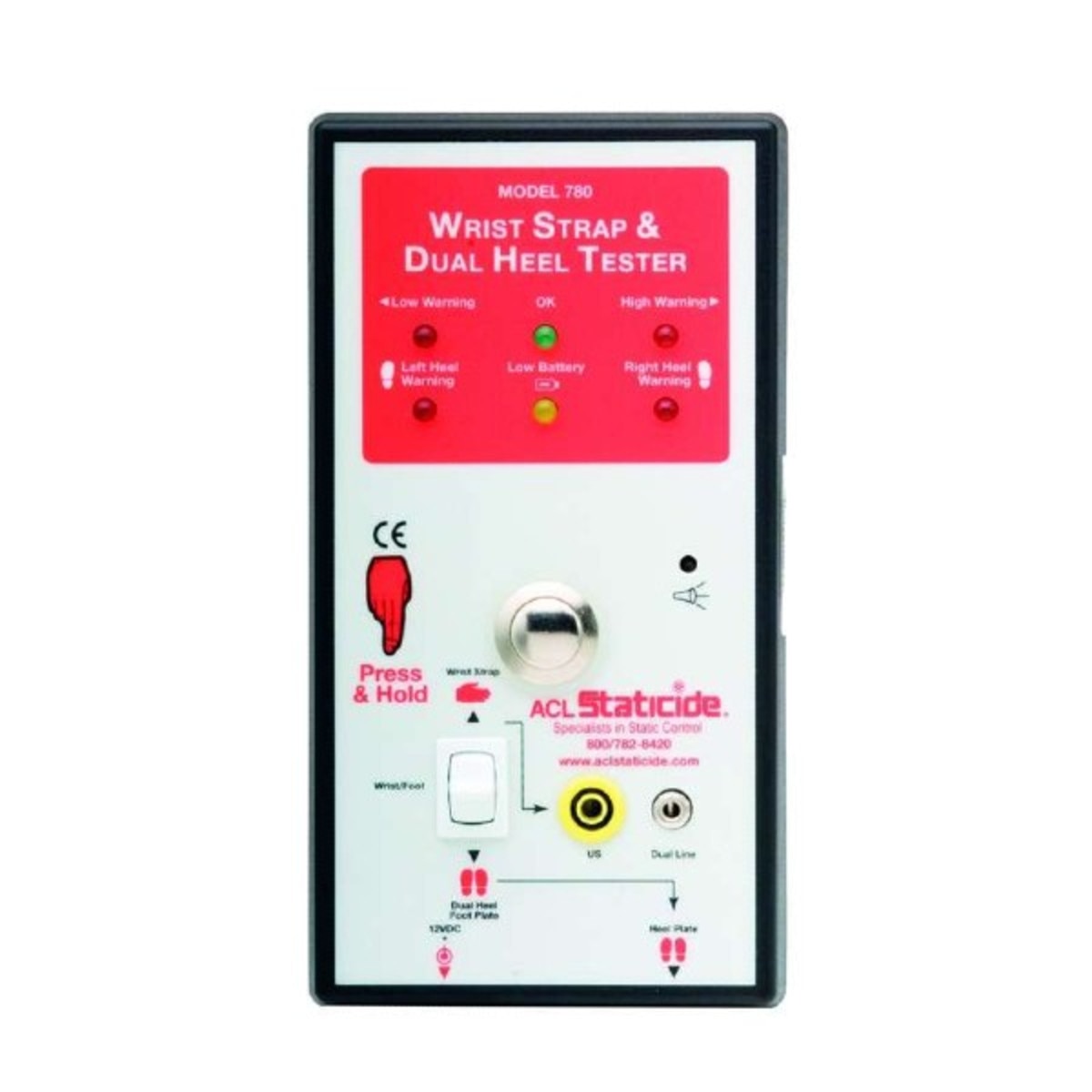

The ACL 780 Economy Combo Tester is an easy-to-use pass/fail unit that tests wrist straps and heel grounders simultaneously in less than three seconds.  With speed, ease, and clarity, the colored LED shows test results.

Ideal for the following applications:
  • Electronic manufacturing
  • Electronic assembly
  • Rework and repair

  • Accuracy +/- 10% (tester only)
  • Conforms to ANSI/ESD S20.20 standard
  • Environment:  32 degrees F to 100 degrees F (0 C to 38 C); 15% to 95% RH
  • Test voltage: 19 volts DC +/- (open circuit)
  • Adjustable resistivity ranges
  • Includes Tester & Foot Plate

    Resistivity ranges
    Wrist straps and footwear
    Low range: 500k, 750k ohms
    High range: 2M, 5M, 10M, 25M, 35M, 50M, 75M, 100M

    Optional Accessories
    ACL 746: 1000 megohm setting
    ACL 740: Circuit relay for security doors
    ACL 795: Calibration box for on-site calibrations
