SCS 770758 Dual Combination ESD Tester

(0)No Reviews yet
SKU: 770758
Priced Per: Each | Usually ships within 2-3 days
Brand: SCS

This item is IN STOCK

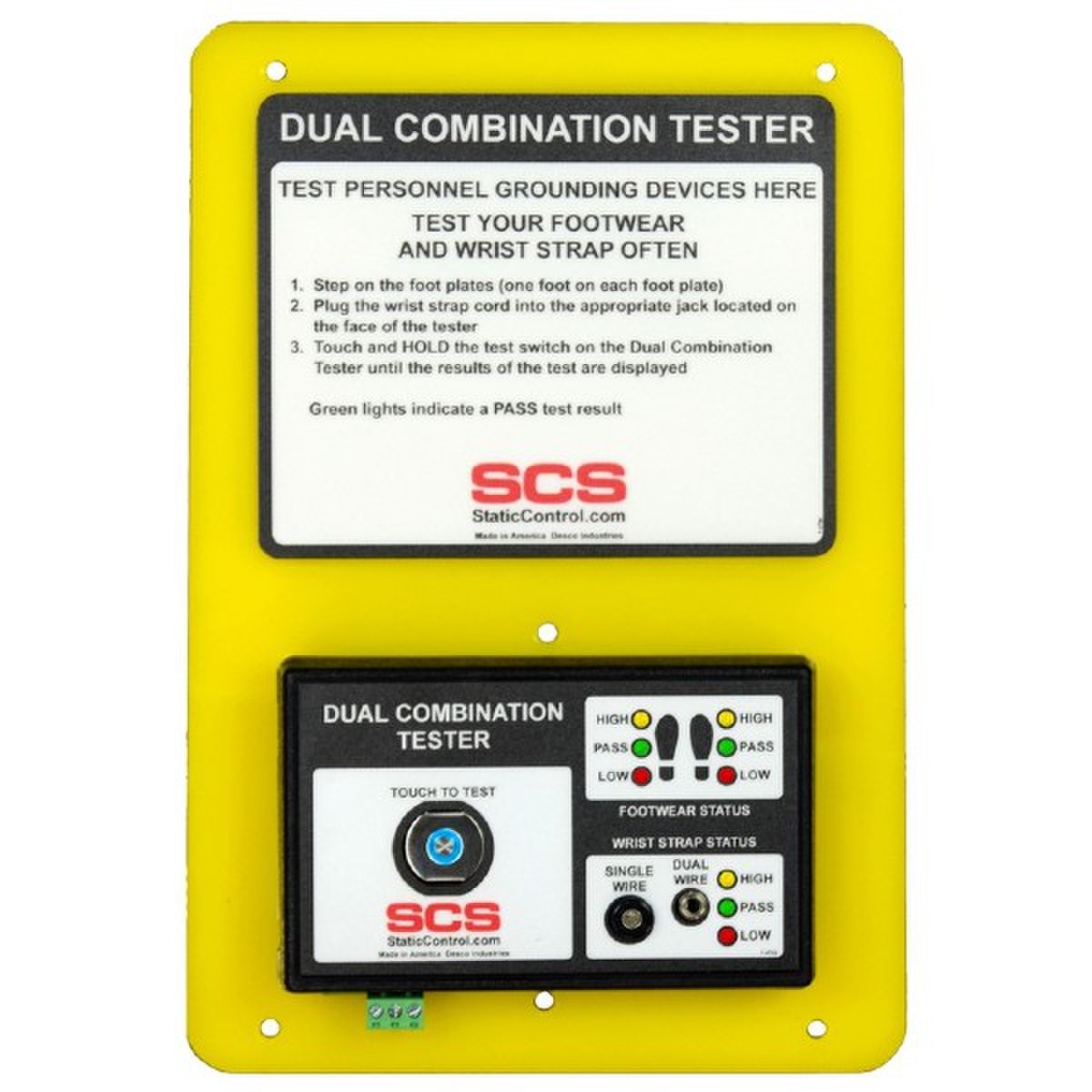

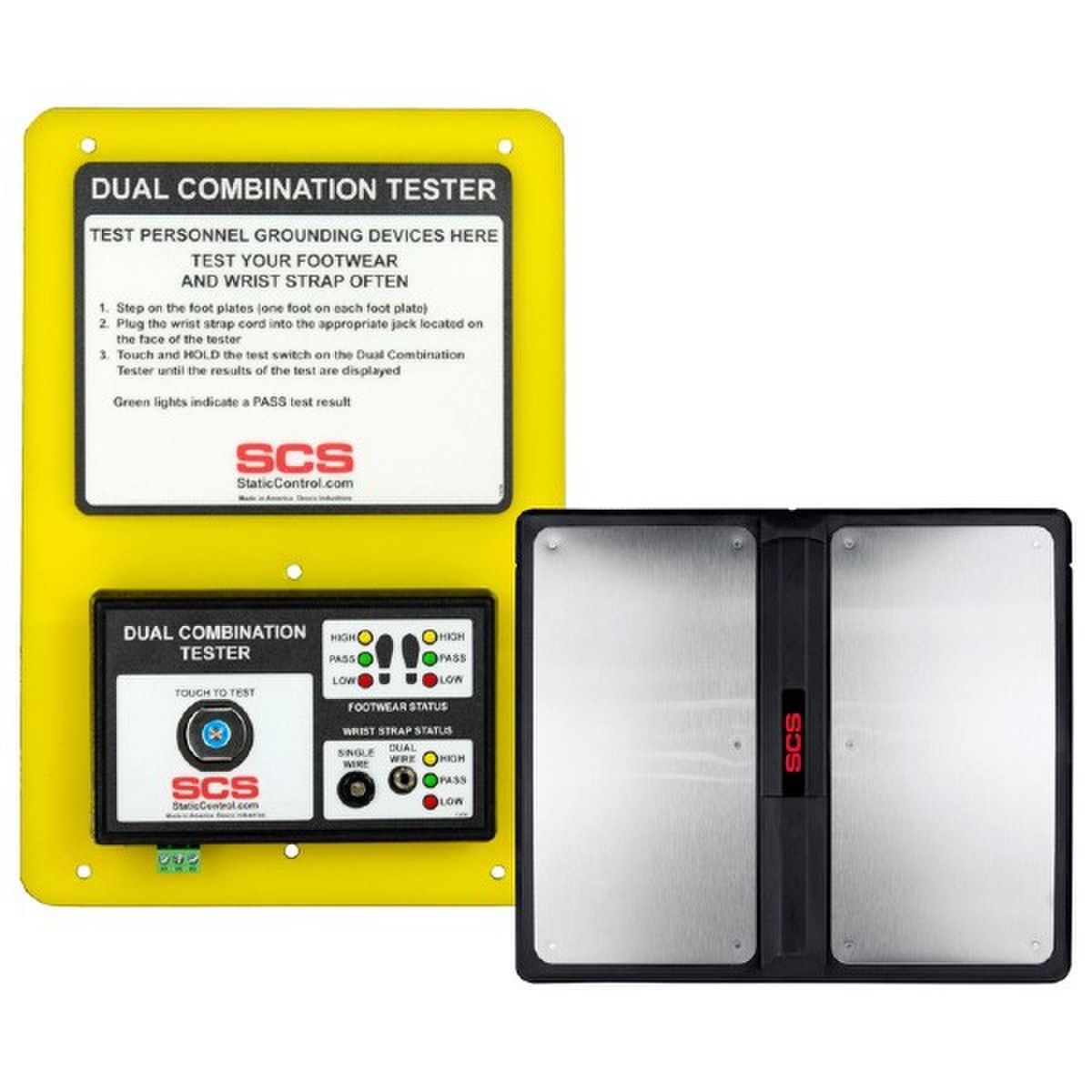

The SCS 770758 Dual Combination Tester verifies the functionality of personnel grounding devices such as wrist straps, foot grounders, ESD shoes and smocks.  Three independent tests are performed simultaneously on the wrist strap and each foot.  Green lights indicate a pass condition.  Red and yellow lights plus an audible alarm indicate when the wrist strap and/or footwear have failed.

  • Compatible with both Single-Wire & Dual-Wire Wrist Straps
  • Tests operator's path to ground, wrist strap limits 750  kilohms to 10 megohms, footwear limits 750 kilohms to 35  megohms

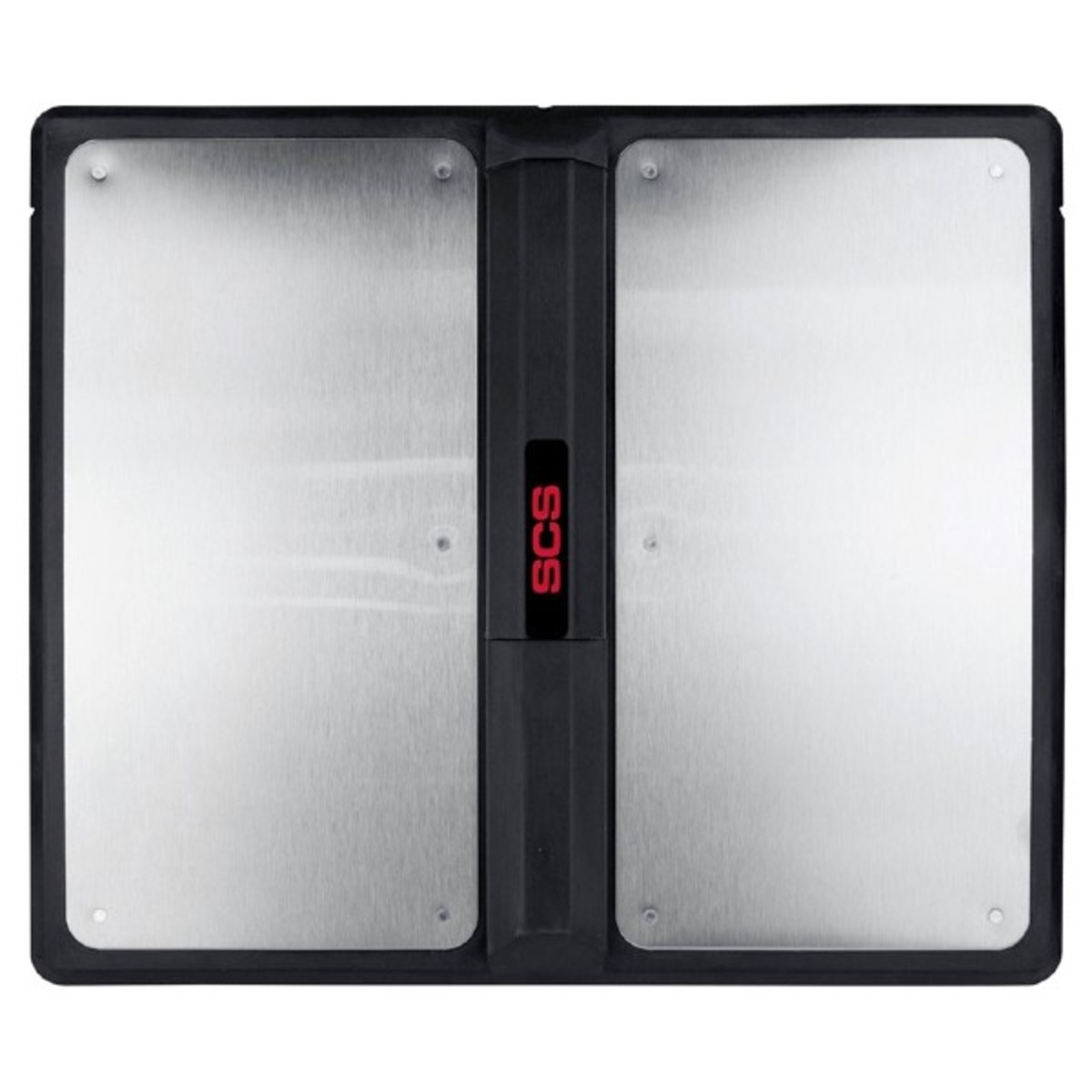

  • Split foot plate for testing foot grounders independently and at the same time
  • 30 volt test signal provides accurate tests that are not humidity dependent
  • Includes Power Adapter, 12 VDS, with interchangeable plugs (North America, UK/Asia, Europe)
  • NIST Calibrated with Certificate
  • Made in the USA
  • Download the Spec Sheet
