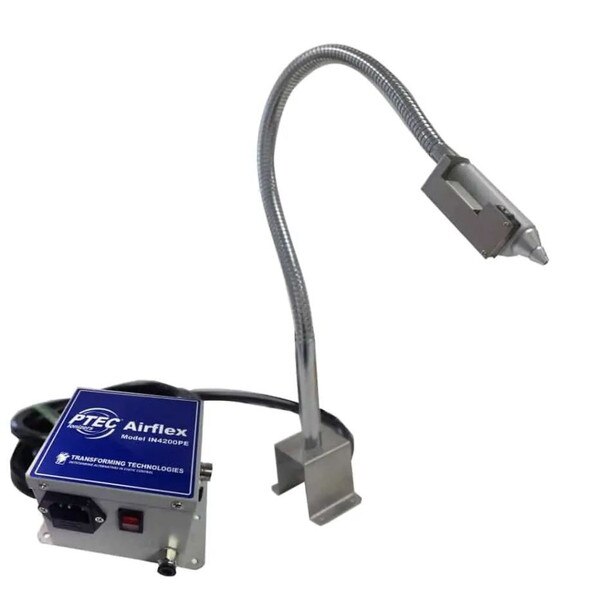

Transforming Technologies IN4200PE Ptec Airflex Ionizing Nozzle with Flexible Neck & Photoelectric Eye, Mountable

(0)No Reviews yet
$1,397.16
SKU: IN4200PE

Description

The IN4200PE Airflex ionizer from Transforming Technologies combines exceptionally fast static decay capability with excellent balance stability, all in a small footprint.  Designed to protect most static sensitive devices, the IN4200PE uses a specialized piezoceramic technology that makes all the Ptec™ ionizers so reliable.  The proximity sensor controls the power and air flow for easy hands-free precision ionization.  Airflow is triggered when the sensor detects a nearby object.

Maintenance Savings
Ptec™ ionizers save time and money because they require no calibration.  Emitter life is increased and maintenance frequency is reduced, due to 68KHz AC ion emission.

Ptec™ Focused Air Ionization
A specialized piezoceramic high voltage transformer drives the technology making Ptec™ ionizers among the most reliable ionizers available.  The model IN4200PE fixed position static eliminator produces a 68KHz AC output of approximately 2200V and a continuous stream of balanced air ions.  Stable, small, and lightweight, Ptec™ products detect and alarm if the high voltage output fails.

Ionizers that use Ptec™ technology do not require calibration and only minimal maintenance.

Benefits:
  • Inherently stable output.  Does not require calibration
  • Reduces emitter cleaning. Extends emitter life. Dense ion output
  • Easy to service emitters
  • Red output alarm illuminates to alert high voltage failure
  • Delivers clean air at the correct pressure for each application, when needed

Features:
  • Hands-Free operation with photoelectric eye
  • Ptec™ Technology
  • High-Frequency AC (68KHz) ion emission
  • Flexible, with multiple nozzle options
  • Alarm indicator
  • Foot switch operation and .01 micron filter

Specifications:
Power Input:  AC100-V-240V, 50/60Hz
Power Outlet:  un-fused, 0.5A or 1.0A max.
Ion Emission:  AC, 68KHz
Balance:  +/- 30 volts
Decay Time:  1000V - 100V, < 2 seconds @ 12"
Temperature:  66-78°F (19-25°C)
Humidity:  20-60% RH (non-condensing)
Air Pressure:  10-100 PSI, CDA or N2
Indicators:  Power: Green LED, Alarm:  Red
Controls:  On/off switch, Footswitch
Mounting:  Table mount
Emitter Points:  Tungsten Alloy
Dimensions:  12"H x 5.75"W x 7.25"D, (30.5 x 14.6 x 18.5 cm)
Filter Option:  .01 micron filter (replaceable)
