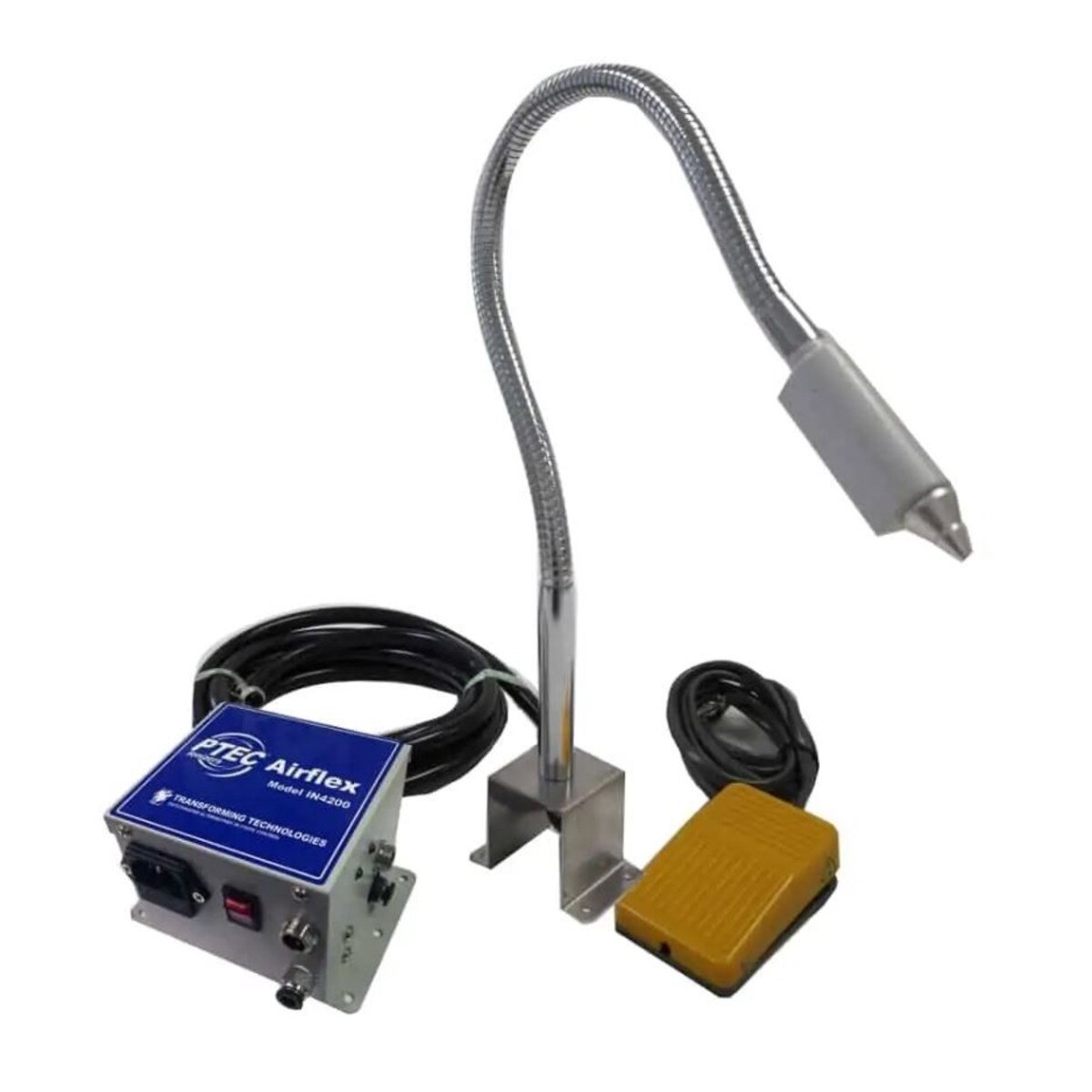

Transforming Technologies IN4200 Ptec Airflex Ionizing Nozzle with Flexible Neck, Mountable
Description
The IN4200 Airflex ionizer from Transforming Technologies combines exceptionally fast static decay capability with excellent balance stability, all in a small footprint. Designed to protect most static sensitive devices, the IN4200 uses a specialized piezoceramic technology that makes all the Ptec™ ionizers so reliable.
Maintenance Savings
Ptec™ ionizers save time and money because they require no calibration. Emitter life is increased and maintenance frequency is reduced, due to 68KHz AC ion emission.
Ptec™ Focused Air Ionization
A specialized piezoceramic high voltage transformer drives the technology making Ptec™ ionizers among the most reliable ionizers available. The model IN4200 fixed position static eliminator produces a 68KHz AC output of approximately 2200V and a continuous stream of balanced air ions. Stable, small, and lightweight, Ptec™ products detect and alarm if the high voltage output fails.
Ionizers that use Ptec™ technology do not require calibration and only minimal maintenance.
Benefits:
Features:
Specifications:
Power Input: AC100-V-240V, 50/60Hz
Power Outlet: un-fused, 0.5A or 1.0A max.
Ion Emission: AC, 68KHz
Balance: +/- 30 volts
Decay Time: 1000V - 100V, < 2 seconds @ 12"
Temperature: 66-78°F (19-25°C)
Humidity: 20-60% RH (non-condensing)
Air Pressure: 10-100 PSI, CDA or N2
Indicators: Power: Green LED, Alarm: Red
Controls: On/off switch, Footswitch
Mounting: Table mount
Emitter Points: Tungsten Alloy
Dimensions: 12"H x 5.75"W x 7.25"D, (30.5 x 14.6 x 18.5 cm)
Filter Option: .01 micron filter (replaceable)
Maintenance Savings
Ptec™ ionizers save time and money because they require no calibration. Emitter life is increased and maintenance frequency is reduced, due to 68KHz AC ion emission.
Ptec™ Focused Air Ionization
A specialized piezoceramic high voltage transformer drives the technology making Ptec™ ionizers among the most reliable ionizers available. The model IN4200 fixed position static eliminator produces a 68KHz AC output of approximately 2200V and a continuous stream of balanced air ions. Stable, small, and lightweight, Ptec™ products detect and alarm if the high voltage output fails.
Ionizers that use Ptec™ technology do not require calibration and only minimal maintenance.
Benefits:
- Inherently stable output. Does not require calibration
- Reduces emitter cleaning. Extends emitter life. Dense ion output
- Easy to service emitters
- Red output alarm illuminates to alert high voltage failure
- Delivers clean air at the correct pressure for each application, when needed
Features:
- Ptec™ Technology
- High-Frequency AC (68KHz) ion emission
- Flexible, with multiple nozzle options
- Alarm indicator
- Foot switch operation and .01 micron filter
Specifications:
Power Input: AC100-V-240V, 50/60Hz
Power Outlet: un-fused, 0.5A or 1.0A max.
Ion Emission: AC, 68KHz
Balance: +/- 30 volts
Decay Time: 1000V - 100V, < 2 seconds @ 12"
Temperature: 66-78°F (19-25°C)
Humidity: 20-60% RH (non-condensing)
Air Pressure: 10-100 PSI, CDA or N2
Indicators: Power: Green LED, Alarm: Red
Controls: On/off switch, Footswitch
Mounting: Table mount
Emitter Points: Tungsten Alloy
Dimensions: 12"H x 5.75"W x 7.25"D, (30.5 x 14.6 x 18.5 cm)
Filter Option: .01 micron filter (replaceable)
