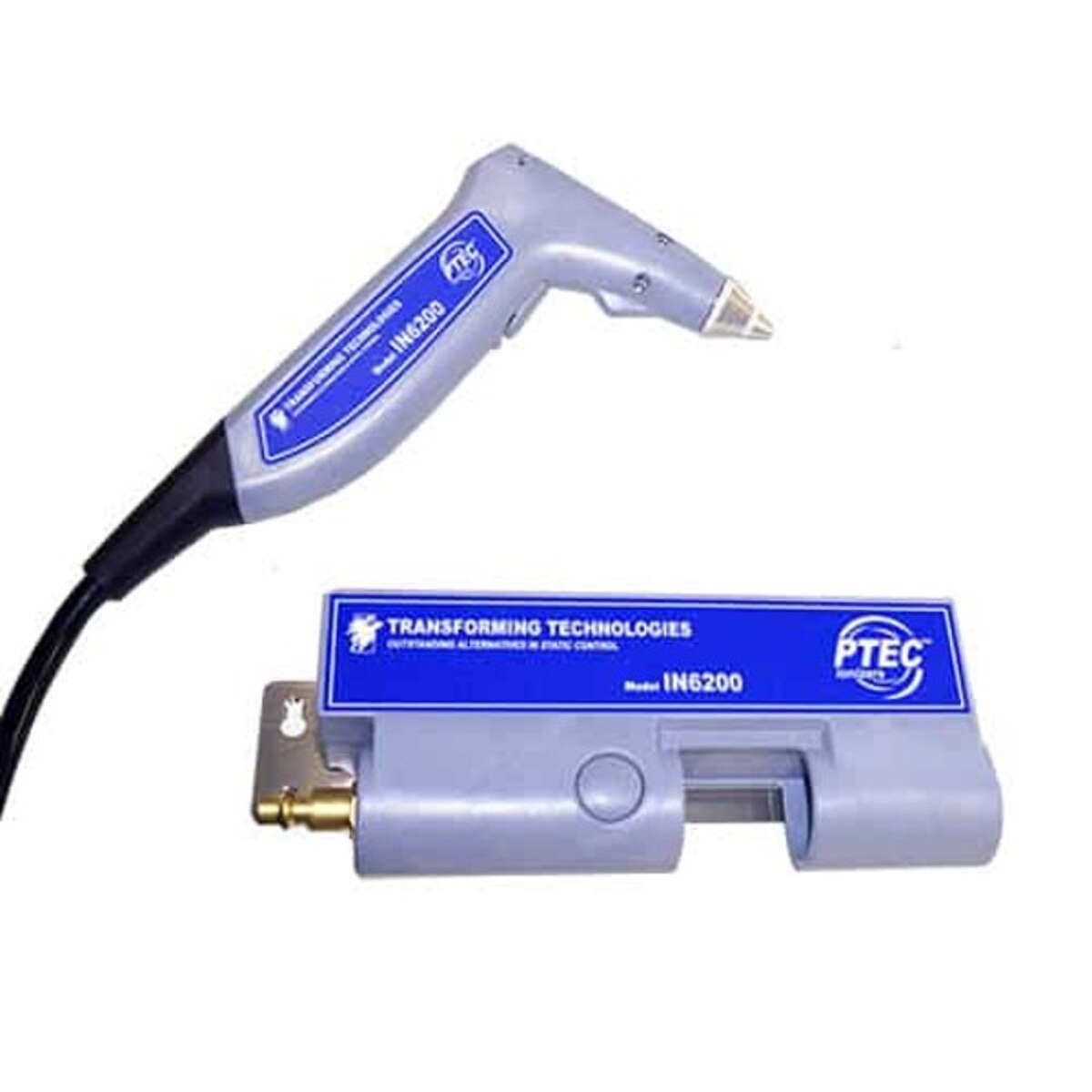

Transforming Technologies IN6200 Ptec Quick-Connect Ionizing Air Gun
Description
The IN6200 Quick-Connect Ionizing gun from Transforming Technologies is a point-of-use static neutralizer that removes charges as well as contamination by dislodging charged dust and debris. This ionizing gun is a lightweight but durable static removal gun. It provides superior control and targeted particulate clean-up for a wide variety of industrial applications. As a forceful neutralizer and blow-off gun, IN6200 easily removes stubborn particulate from surfaces. As a neutralizer, the IN6200 gets rid of troublesome charges responsible for the attraction of contaminants to product surfaces.
The IN6200 is designed for the user's comfort with its flexible cord and easy-to-use trigger switch. The controls are integrated into the gun body, including ionization monitoring light, replaceable long-lasting air filter, and air output regulator. The cable is protected by heavy vinyl-covered metal shielding. The included power supply mounts with ease above or below the worksurface. The unit's "shockless" design prevents users from experiencing uncomfortable shocks if the ionizing point is touched. The IN6200 accepts both compressed air and inert gases, including nitrogen.
High voltage cables are eliminated by locating the power supply in the ionizing gun handle. OSHA-compliant emitter nozzle protects both the operator and ionizer. Emitter contamination and wear are virtually non-existent with AC ionizing guns.
Ptec™ Stability
IN6200 uses Ptec™, a specialized piezoceramic technology, to create a high-frequency AC ionizing output with exceptional balance and decay performance. A specialized piezoelectric high voltage transformer makes Ptec™ ionizers among the most reliable ionizers manufactured. Small, lightweight, and stable, Ptec™ products are designed to remain in balance and to alarm when the HV output affects performance. The model IN6200 static eliminator produces a 68KHz AC output of approximately 2200V and a continuous stream of balanced air ions.
Ionizers that use Ptec™ technology do not require calibration and only minimal maintenance. AC technology produces a balanced output of air ions (+/- volts) with lower maintenance requirements than DC ionizers. Emitter contamination and wear are virtually non-existent with AC ionizing guns.
Applications:
The IN6200 is designed to neutralize electrostatic charges in personal bench top environments, sensitive materials assembly, SMT, Electronics Assembly, Automotive packaging, clean room, and laboratory environments.
Features:
The IN6200 is designed for the user's comfort with its flexible cord and easy-to-use trigger switch. The controls are integrated into the gun body, including ionization monitoring light, replaceable long-lasting air filter, and air output regulator. The cable is protected by heavy vinyl-covered metal shielding. The included power supply mounts with ease above or below the worksurface. The unit's "shockless" design prevents users from experiencing uncomfortable shocks if the ionizing point is touched. The IN6200 accepts both compressed air and inert gases, including nitrogen.
High voltage cables are eliminated by locating the power supply in the ionizing gun handle. OSHA-compliant emitter nozzle protects both the operator and ionizer. Emitter contamination and wear are virtually non-existent with AC ionizing guns.
Ptec™ Stability
IN6200 uses Ptec™, a specialized piezoceramic technology, to create a high-frequency AC ionizing output with exceptional balance and decay performance. A specialized piezoelectric high voltage transformer makes Ptec™ ionizers among the most reliable ionizers manufactured. Small, lightweight, and stable, Ptec™ products are designed to remain in balance and to alarm when the HV output affects performance. The model IN6200 static eliminator produces a 68KHz AC output of approximately 2200V and a continuous stream of balanced air ions.
Ionizers that use Ptec™ technology do not require calibration and only minimal maintenance. AC technology produces a balanced output of air ions (+/- volts) with lower maintenance requirements than DC ionizers. Emitter contamination and wear are virtually non-existent with AC ionizing guns.
Applications:
The IN6200 is designed to neutralize electrostatic charges in personal bench top environments, sensitive materials assembly, SMT, Electronics Assembly, Automotive packaging, clean room, and laboratory environments.
Features:
- Point-and-Shoot Precision Ionization

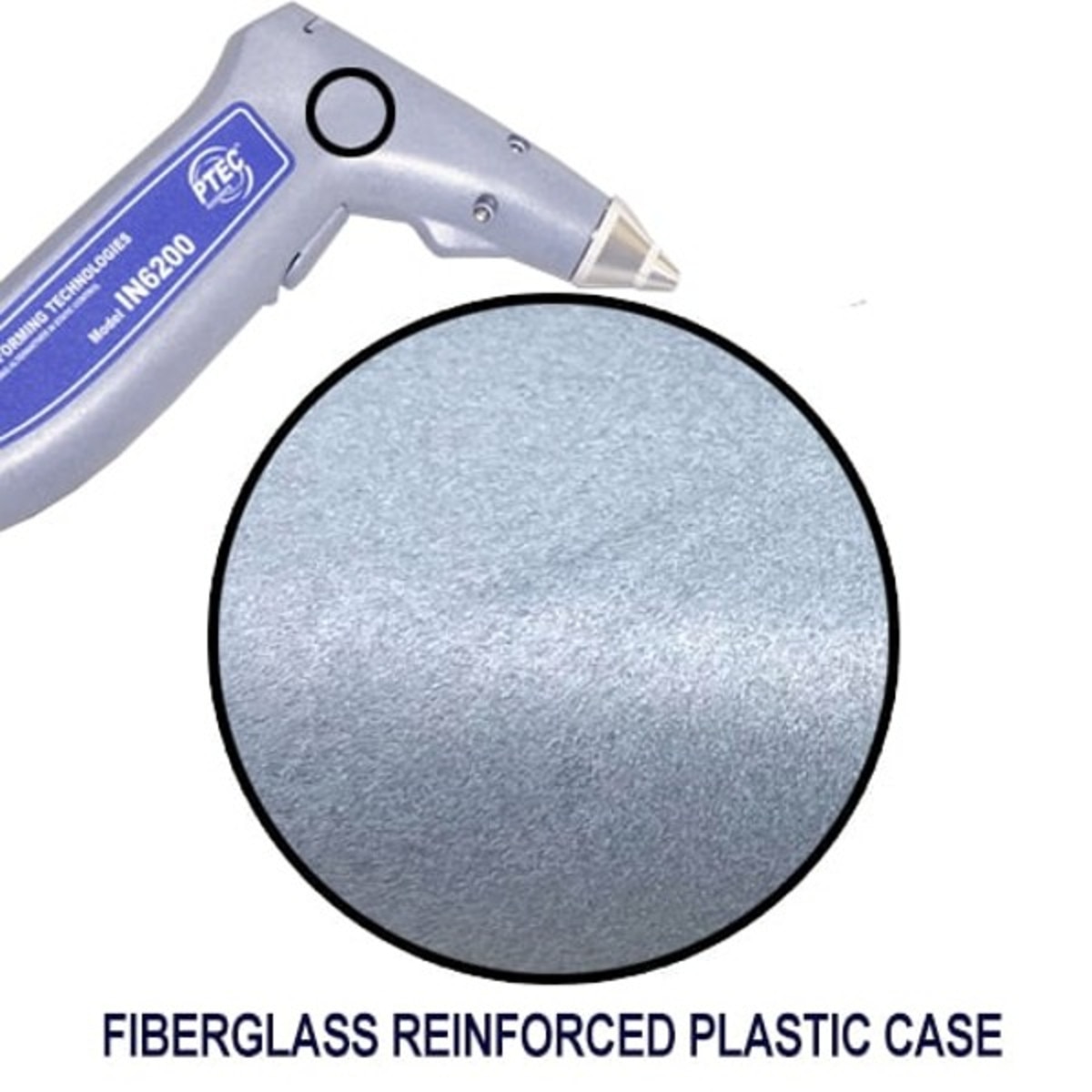

- Durable, Impact Resistant Fiberglass Reinforced Plastic Case

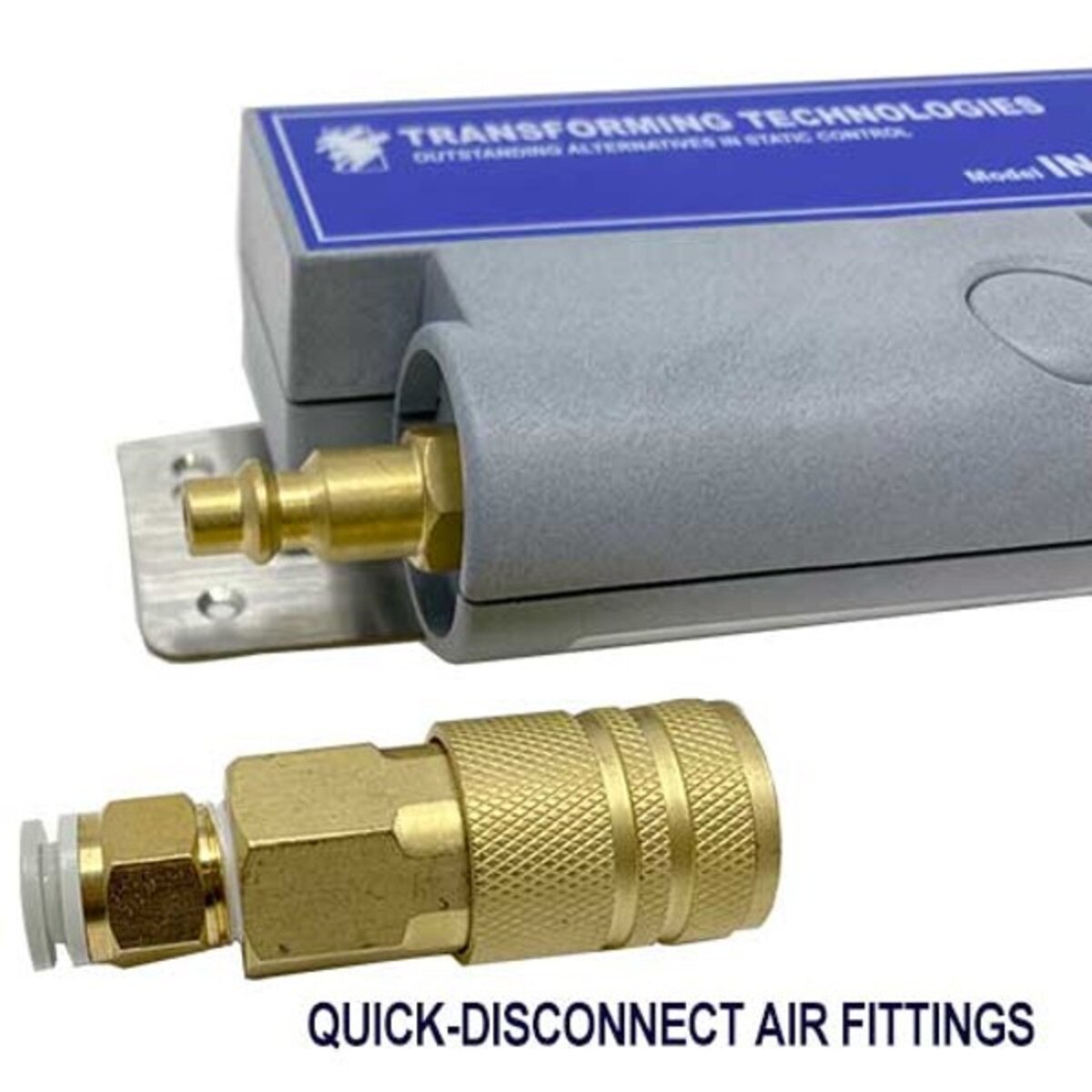

- Quick-Disconnect Air Fittings
- Inherently Stable Ptec™ Technology
- Dense Output of High-Frequency AC (68KHz) Ion Emission
- Single Integrated Air/Power Cable with Strain Relief Protects Cables.
- Ergonomic Handle Design
- Decay: 1000V - 100V, <2 seconds at 12"
- Balance +/- 15 volts
- Air Pressure: Typical Range 20-75 PSI, CDA or N2
- Filter Included
