SCS 770716 Portable Static Sensor for Testing Electrostatic Fields
Description

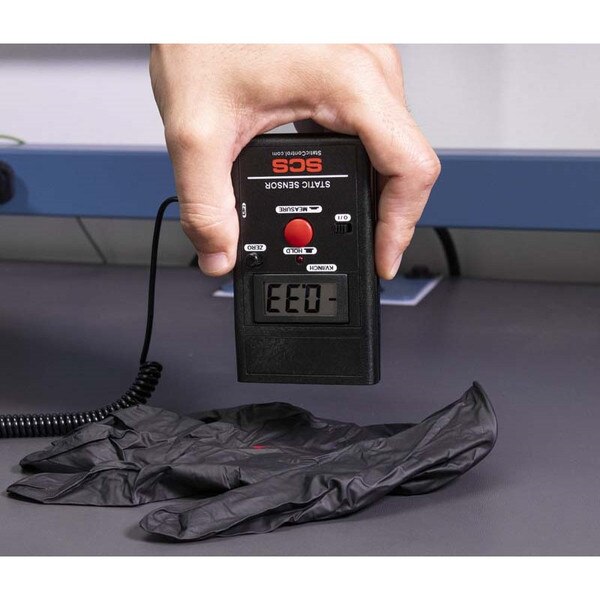

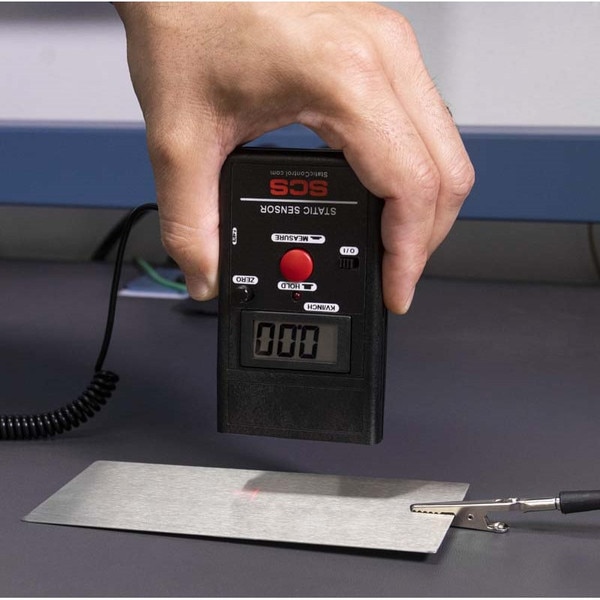

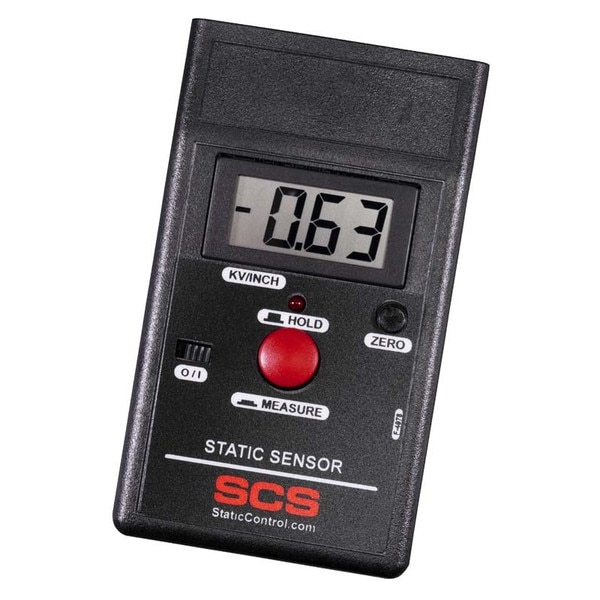

The SCS 770716 Static Sensor indicates surface voltage and polarity on objects. The meter has a measurement range of 0 to +/-19.99kV at a distance of 1 inch and a measurement accuracy of +/-5%. It utilizes a chopper-stabilized sensor for use in both normal and ionized environments. The meter's enclosure is dissipative and features a 7mm snap and ground cord for bonding to equipment ground. A rotary zero knob sets the zero-reference point with finely tuned precision, and a Hold button allows the user to “freeze” a displayed measurement for evaluation. A LED range indicator assists with placing the meter at the correct distance from the object being measured.
Features:
- Measures surface voltage and polarity on objects up to +/-19kV at 1 inch
- Chopper Stabilized - Yields accurate measurements in both normal and ionized environments
- Dissipative Enclosure with 7mm ground snap grounds the meter when held by a grounded operator or bonded to ground using the included ground cord
- Rotary Zero Knob - sets the zero-reference point with finely tuned precision

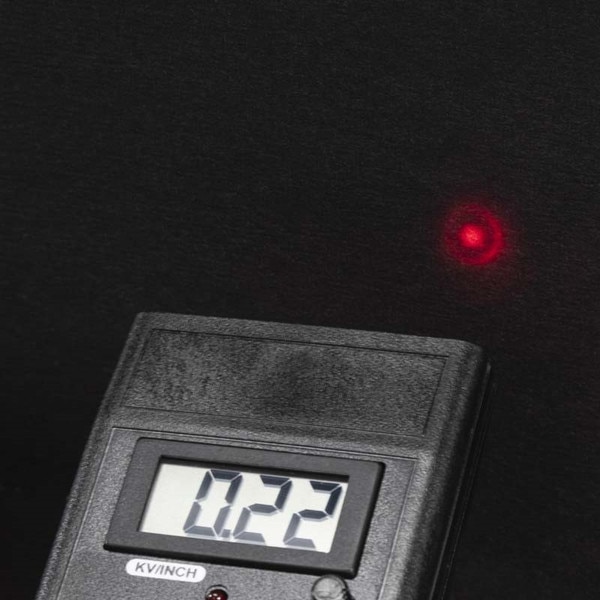

- LED Range Indicator - assist with placing the meter at the correct distance
- Hold Button allows measurements to be retained for easy reading
- NIST Calibrated
- Made in the USA
- Download the Spec Sheet

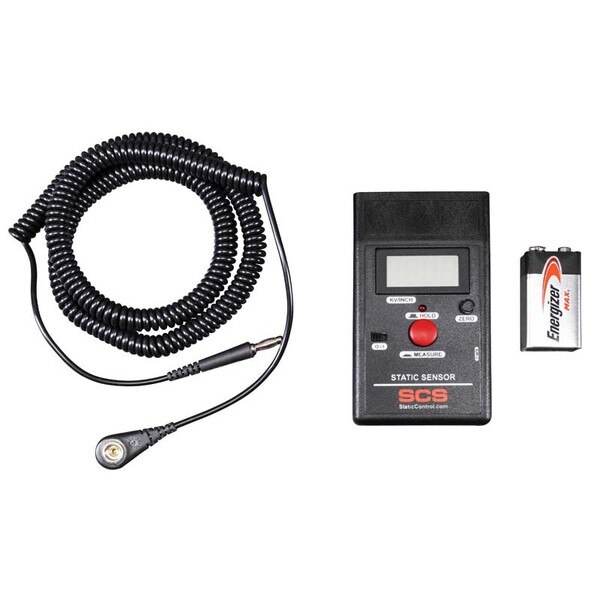

Includes:
- Static Sensor
- Coiled Ground Cord, 12" Length
- 9V Alkaline Battery
- Certificate of Calibration
