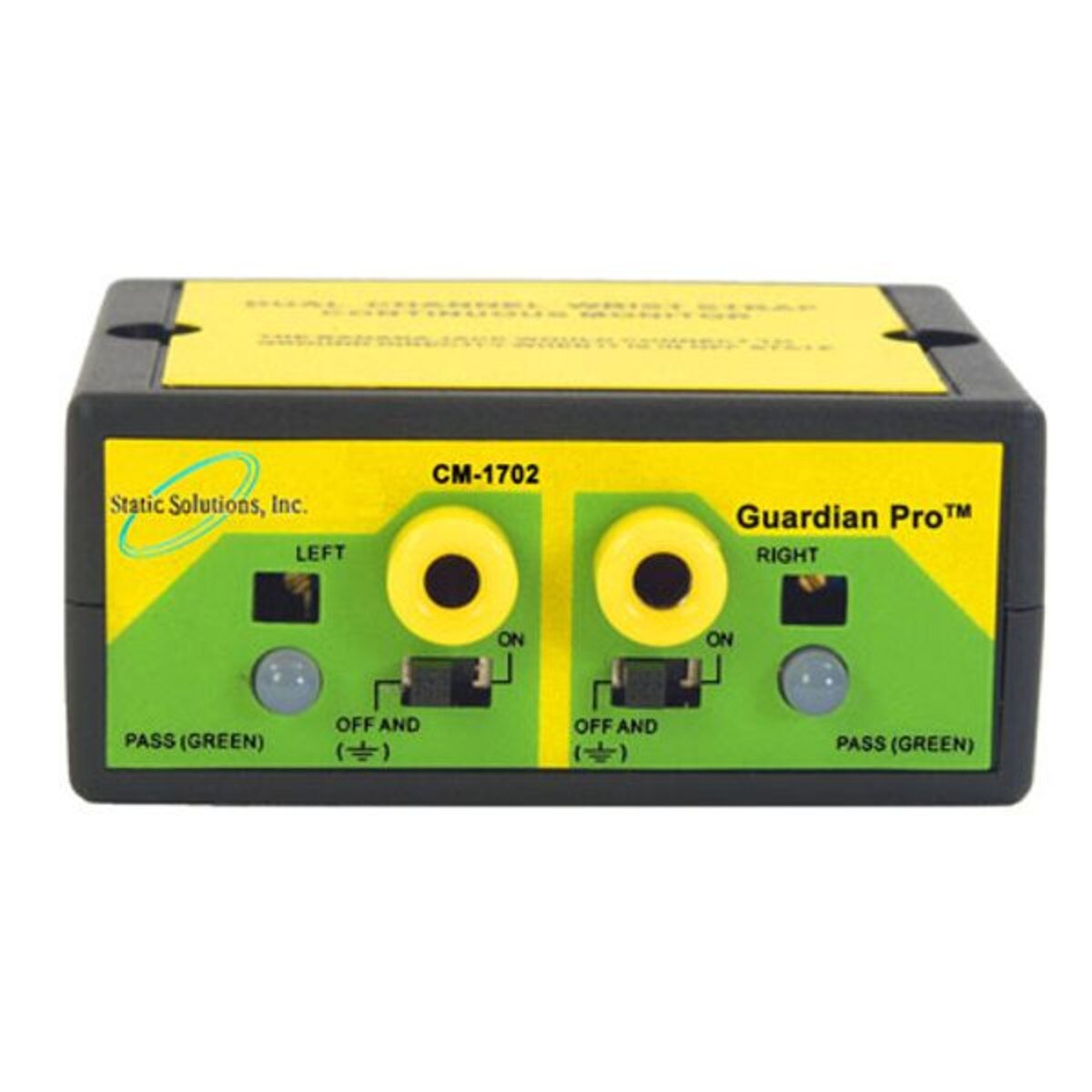

Ohm Stat CM1702 Guardian ESD Constant Monitor, Two Operators & Two Wrist Straps

(0)No Reviews yet
$131.61
SKU: CM-1702

Description

Static Solutions CM-1702 Guardian Pro monitors two wrist straps and two operators.

Operation-Active when switch turned on, wrist strap on operator and green LED is on. Inactive when power switch turned off, and cord on docking snap. Wrist strap and person is connected to ground even if monitor is turned off. Trigger impedance is not changed by a change of incoming voltage.

  • Visual alarm: Red=Fail, Green=Pass
  • Audio Alarm: Piezo Buzzer
  • NIST calibration included with certificate, valid for one year
  • Safe limits: Under 1.2 megohms. Impedance can be adjusted according to weight and size of operator
  • Fail limits: Over 1.3 megohms which can be adjusted
  • Socket: Banana plug
  • Works with standard one conductor wrist straps/cords
  • Size: 3" x 3.75" x 1"
