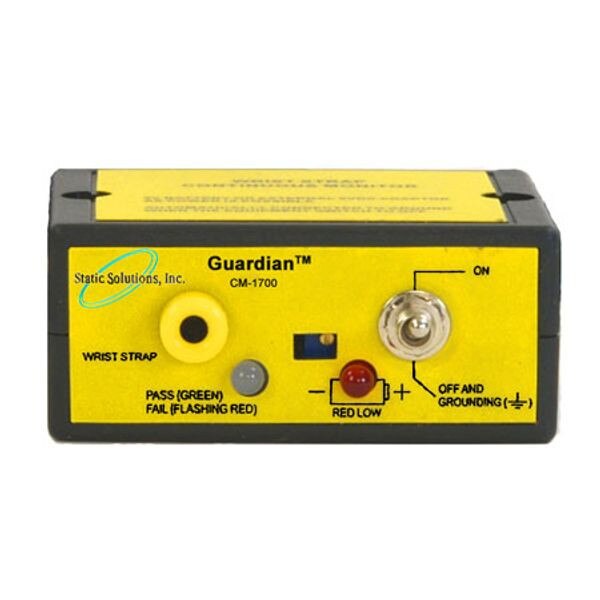

Ohm Stat CM1700 Guardian ESD Constant Monitor, Single Operator & Wrist Strap

(0) No Reviews yet
1 – 4$49.00
5 +$46.55
SKU: CM-1700
Priced Per: Each | Usually ships within 3-5 days

This item is IN STOCK


Static Solutions CM-1700 Guardian monitors one wrist strap and one operator.

Operation-Active when switch turned on, wrist strap on operator and green LED is on.  Inactive when power switch turned off, and cord on docking snap.  Wrist strap and person is connected to ground even if monitor is turned off.  Trigger impedance is not changed by a change of incoming voltage.

• Visual alarm: Red=Fail, Green=Pass
• Audio Alarm: Piezo Buzzer
• NIST calibration included with certificate, valid for one year
• Safe limits: Under 1.2 megohms. Impedance can be adjusted according to weight and size of operator
• Fail limits: Over 1.3 megohms which can be adjusted
• Socket: Banana plug and 4mm docking snap
• Works with standard one conductor wrist straps/cords
• Size: 3" x 2.75" x 1"
