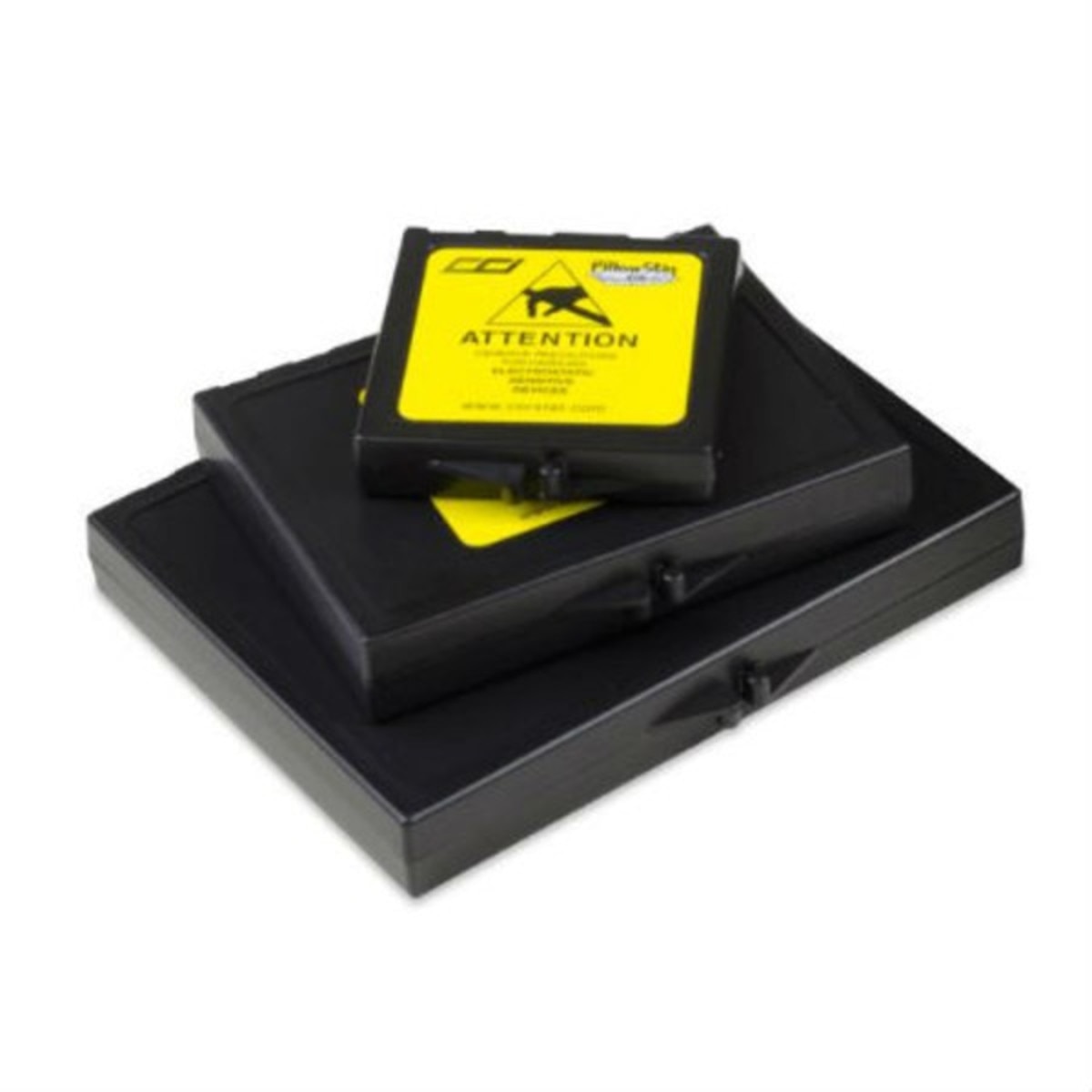

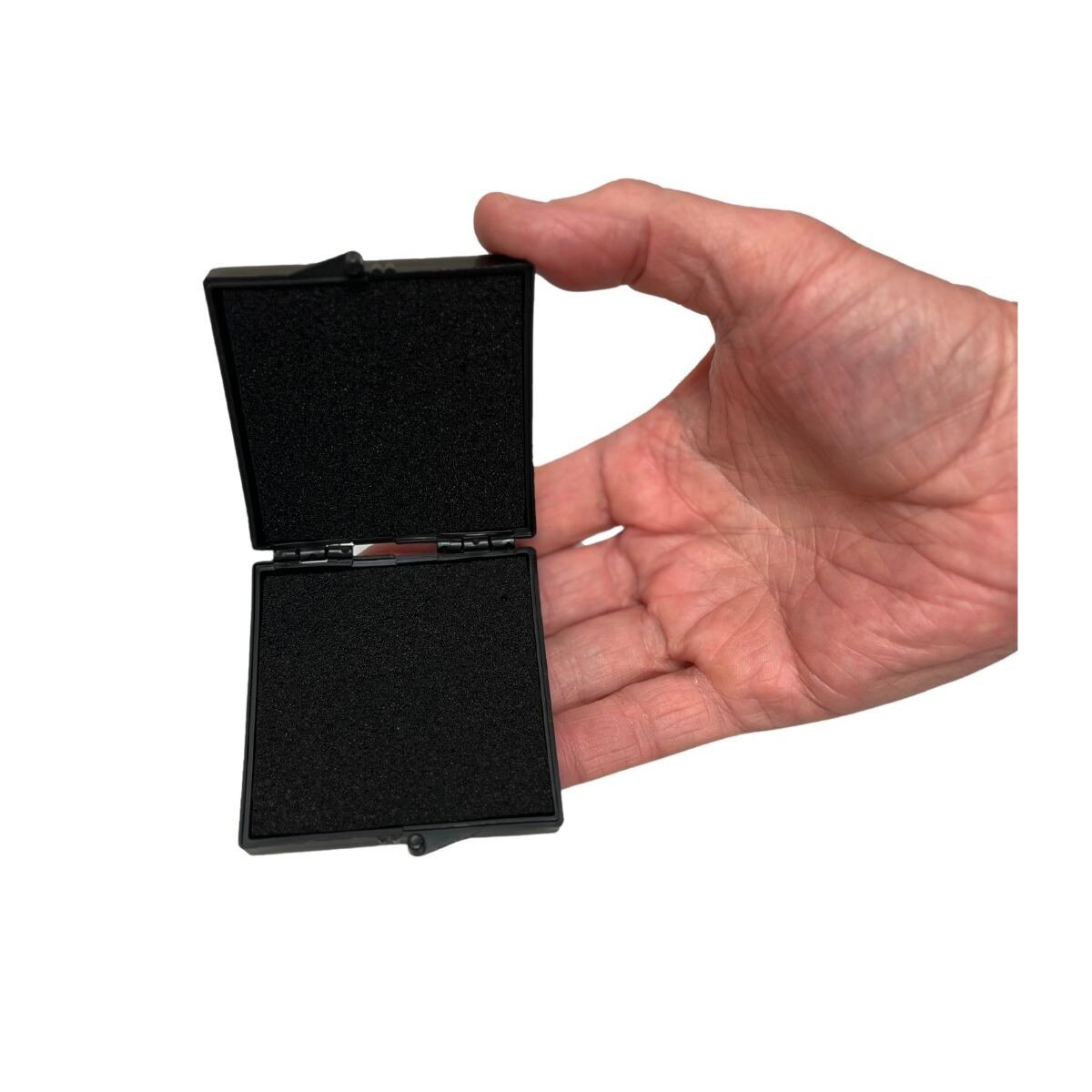

PP2525 PillowStat Conductive Plastic Box with Hinges and Black Conductive Memory Foam, 2-9/16" X 2-9/16" X 1/2", 150/Case
Description

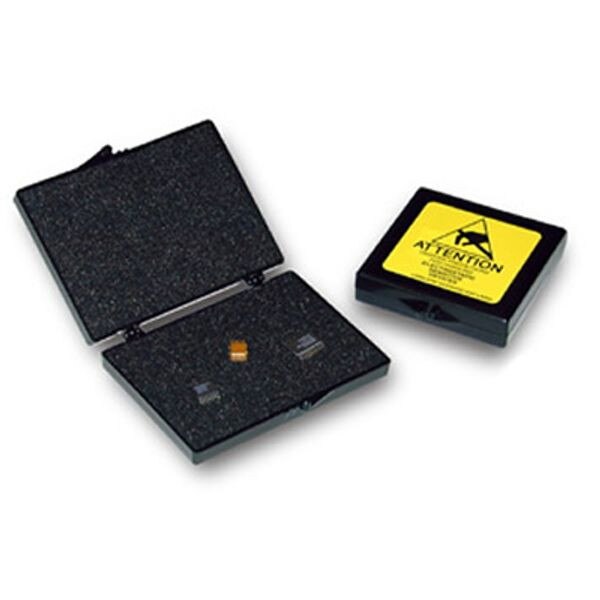

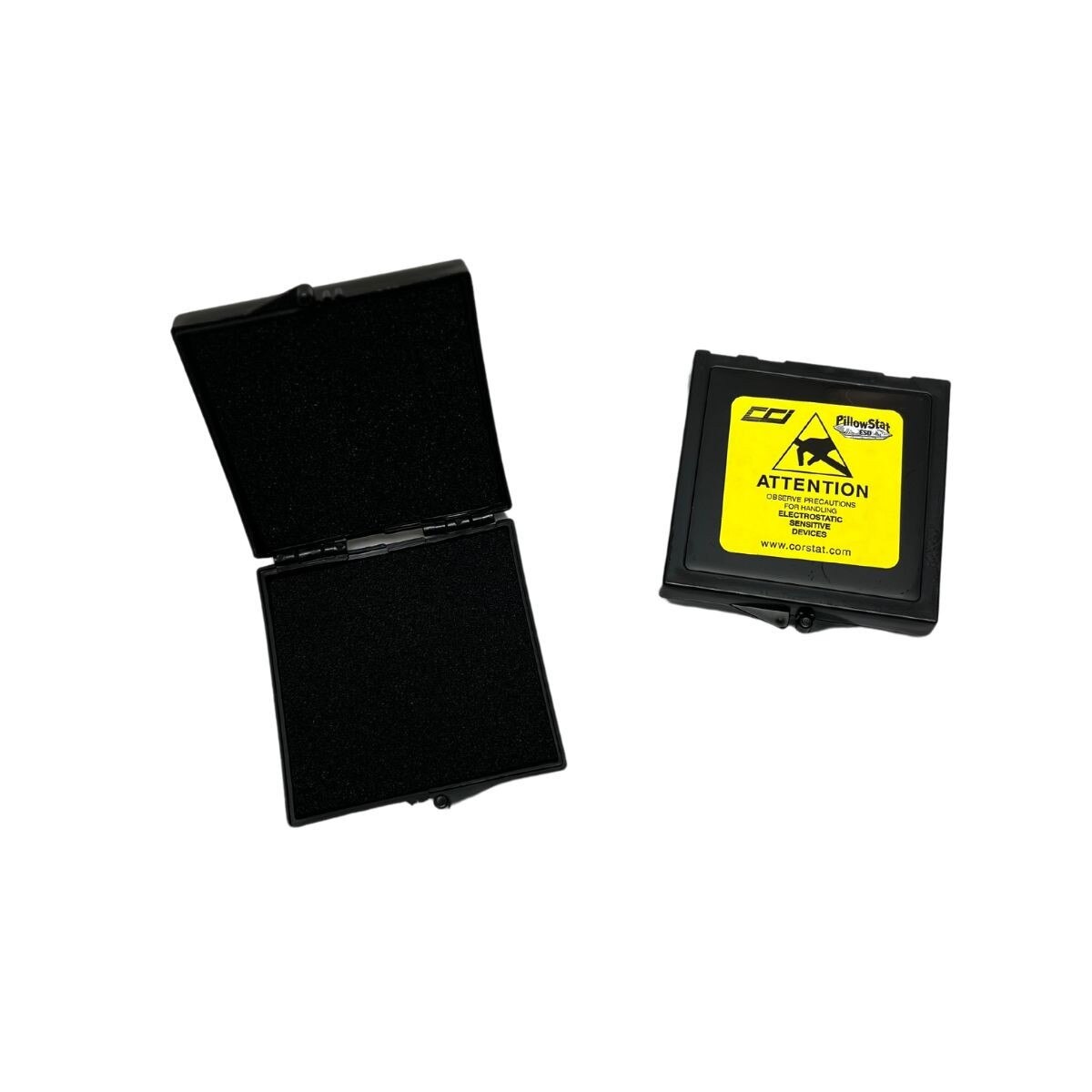

The Pillowstat PP2525 offers a secure and efficient packaging solution for ESD-sensitive devices, eliminating the need for custom tooling. Its distinctive feature, the PillowStat Memory Foam, conforms to the shape of the encapsulated item, providing a customized fit. This product is suitable for various applications, including ball grid arrays, wafers, and components with fine-pitched leads. The conductive plastic box arrives fully assembled, with foam inserted and an ESD-safe label attached, ensuring convenience and protection. The Pillowstat PP2525 presents a competitive advantage over "sticky gel" products, offering superior ESD properties and a more cost-effective solution. Unlike the potentially insulative nature of sticky gel, the conductive foam ensures no charge generation, providing an added layer of safety.
Key Product Features
- Provides physical and static shielding protection
- Unique PillowStat Memory Foam forms around parts
- Injection molded boxes feature strong hinges and latches with tongue & groove closure
- Fits a variety of component sizes
- Perfect for fragile high value components
Specifications
- Inside Dimensions: 2-9/16" x 2-9/16" x 1/2"
- Style: Conductive Hinged Plastic Box with PillowStat Memory Foam
- Packaging: Sold in cases of 150
- Custom Printing Available - Please Inquire
Conductive Hinged Plastic Boxes Specifications
| Characteristics | Results | Test Method |
|---|---|---|
| Surface Resistivity | <10e6 Oms/sq | D257 |
| Volume Resistivity | <1e3 Ohms/sq | D257 |
| Electrostatic Decay Rate | <2 Sec | FTMS101C 4046.1 |
| Impact Strength IZOD | ||
| ** Notched 1/8" Section | 5.0 ft-lb/in | D256 |
| ** Unnotched 1/8" Section | No Break | D4812 |
| Tensile Strength | 3200 psi | D638 |
| Tensile Elongation | >10.0% | D638 |
| Tensile Module | .15 x 10e6 psi | D638 |
| Flexural Strength | 4700 psi | D790 |
| Flexural Modulus | .17 x 10e6 psi | D790 |
Conductive Pillowstat Memory Foam Specifications
| Characteristics | Results | Test Method |
|---|---|---|
| Color | Black | Visual |
| Volume Resistance | 10e3 - 10e5 | ANSI-ESD STM11.12-2021 |
| Surface Resistance | 10e3 - 10e5 | ANSI-ESD STM11.11-2022 |
| Static Decay Rate | 0.01 Sec | ASTM D-257 |
| Density | 4.8 - 5.2 lbs/ft3 | ASTM D-3574-01 |
| Ohms | 10e3 - 10e5 point-to-point | ASTM D-257 |
| Indent Force Deflection @ 25% | 7-17 psi | ASTM D-3574-01 |
| Flame Resistance | N/A | |
| Shelf Life | Long Term |
Ideal Use Cases

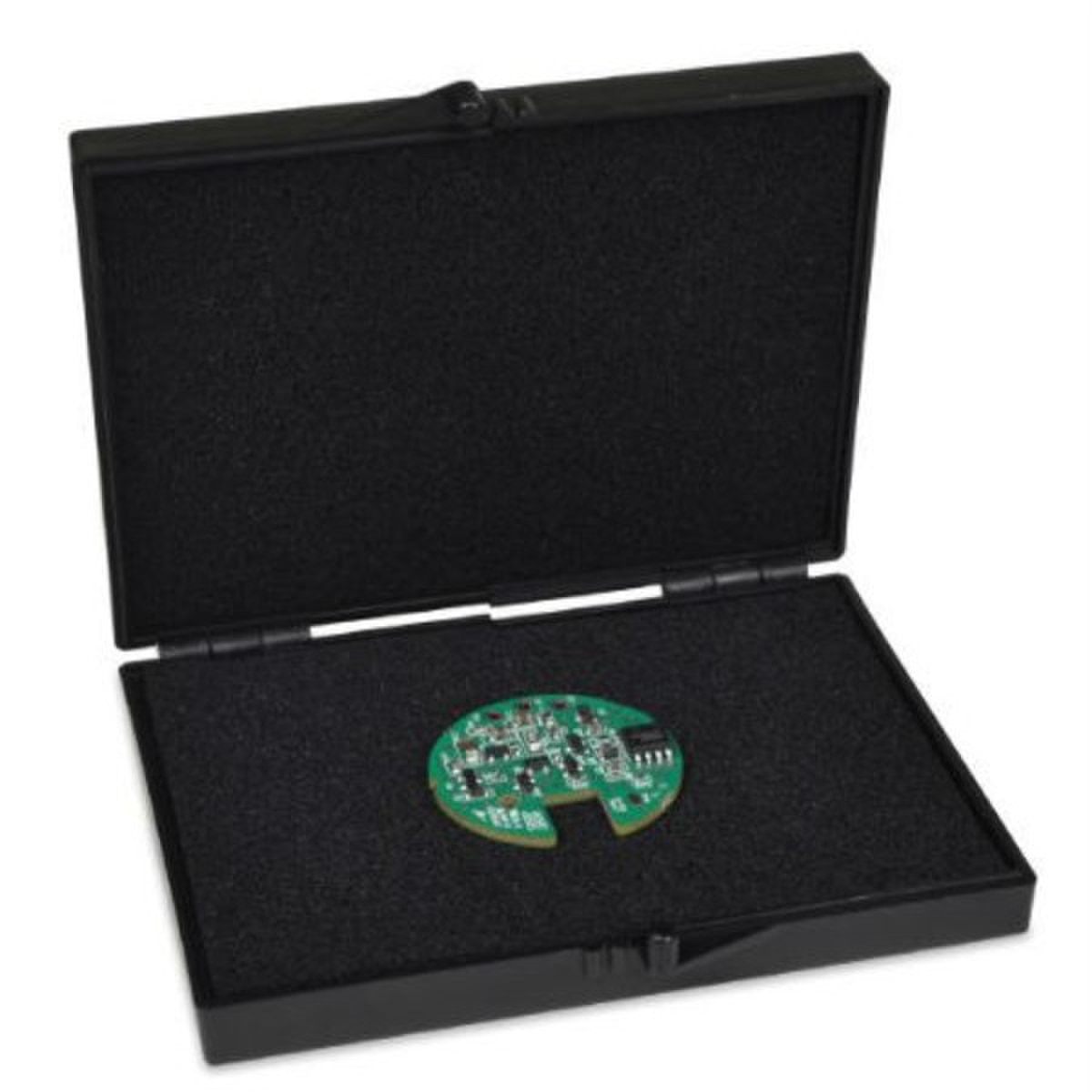

This Pillowstat Shipper is an ideal solution for packaging ball grid arrays, wafers and components with fine pitched leads. It ensures that components are securely stored and remain undamaged during transportation.
Commitment to Quality
Correct Products is committed to delivering high-quality products that meet the stringent standards required by industries handling sensitive electronic components.
Ordering and Contact Information
For purchasing or to learn more about the PP2525 PillowPak Shipper customers are encouraged to contact Correct Products directly. The company offers expert consultation to provide tailored solutions that best fit the specific requirements of your ESD packaging needs.
For further details or to place an order contact Correct Products.
