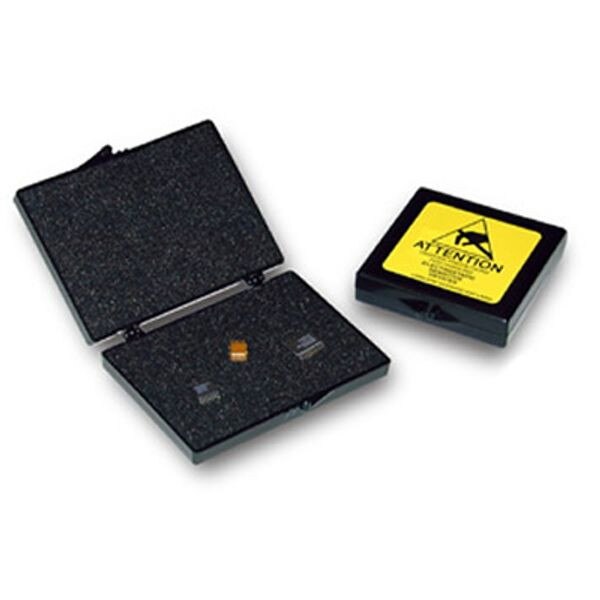

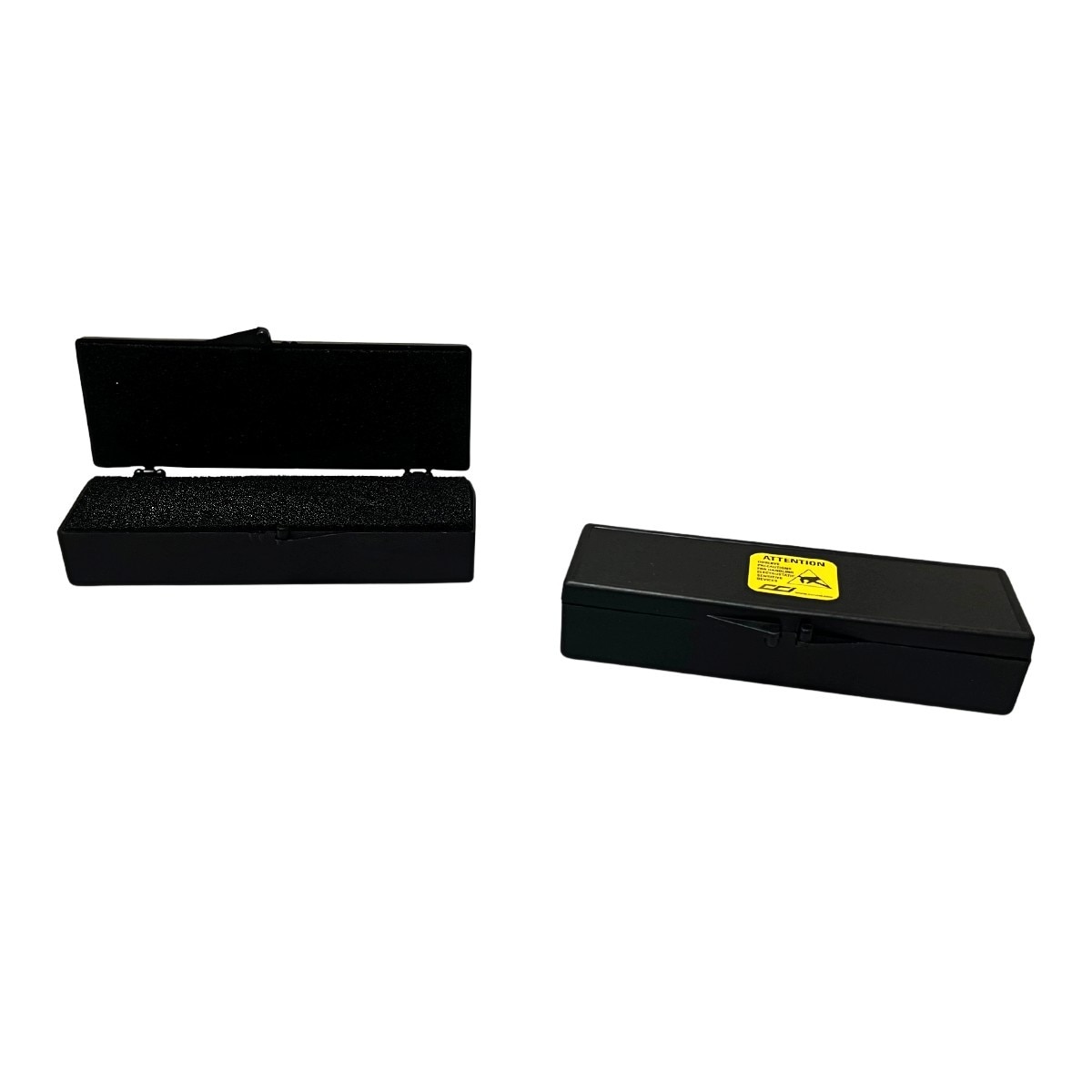

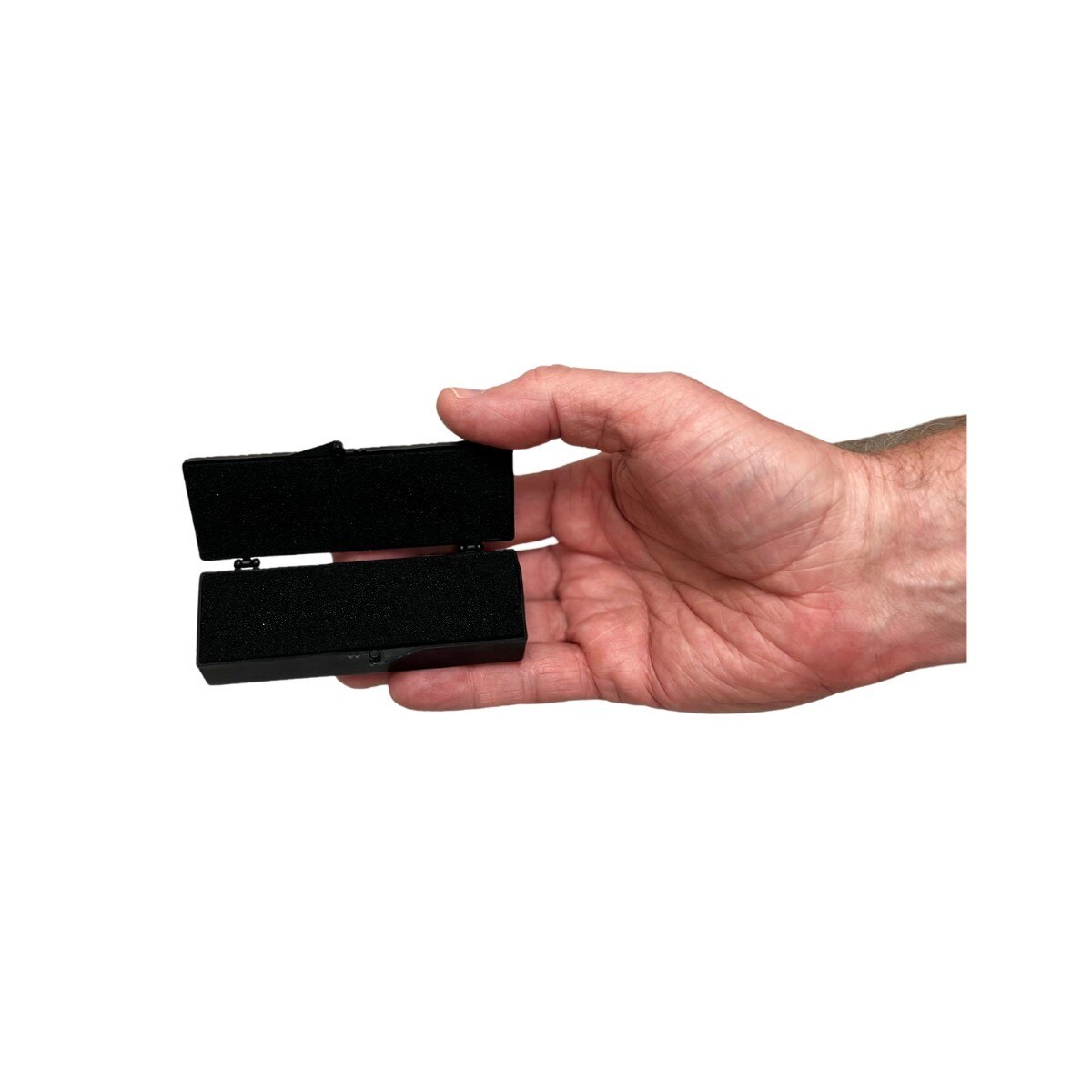

PP1030 PillowStat Conductive Plastic Box with Hinges and Black Conductive Memory Foam, 3-3/4" X 1-3/16" X 5/8", 100/Case

The Pillowstat PP1030 offers a secure and efficient packaging solution for ESD-sensitive devices, eliminating the need for custom tooling. Its distinctive feature, the PillowStat Memory Foam, conforms to the shape of the encapsulated item, providing a customized fit. This product is suitable for various applications, including ball grid arrays, wafers, and components with fine-pitched leads. The conductive plastic box arrives fully assembled, with foam inserted and an ESD-safe label attached, ensuring convenience and protection. The Pillowstat PP1030 presents a competitive advantage over "sticky gel" products, offering superior ESD properties and a more cost-effective solution. Unlike the potentially insulative nature of sticky gel, the conductive foam ensures no charge generation, providing an added layer of safety.

Key Product Features

• Provides physical and static shielding protection
• Unique PillowStat Memory Foam forms around parts
• Injection molded boxes feature strong hinges and latches with tongue & groove closure
• Fits a variety of component sizes
• Perfect for fragile high value components

Specifications

• Inside Dimensions: 3-3/4" x 1-3/16" x 5/8"
• Style: Conductive Hinged Plastic Box with PillowStat Memory Foam
• Packaging: Sold in cases of 100
• Custom Printing Available - Please Inquire

Conductive Hinged Plastic Boxes Specifications

Characteristics	Results	Test Method
Surface Resistivity	<10e6 Oms/sq	D257
Volume Resistivity	<1e3 Ohms/sq	D257
Electrostatic Decay Rate	<2 Sec	FTMS101C 4046.1
Impact Strength IZOD
** Notched 1/8" Section	5.0 ft-lb/in	D256
** Unnotched 1/8" Section	No Break	D4812
Tensile Strength	3200 psi	D638
Tensile Elongation	>10.0%	D638
Tensile Module	.15 x 10e6 psi	D638
Flexural Strength	4700 psi	D790
Flexural Modulus	.17 x 10e6 psi	D790

Conductive Pillowstat Memory Foam Specifications

Characteristics	Results	Test Method
Color	Black	Visual
Volume Resistance	10e3 - 10e5	ANSI-ESD STM11.12-2021
Surface Resistance	10e3 - 10e5	ANSI-ESD STM11.11-2022
Static Decay Rate	0.01 Sec	ASTM D-257
Density	4.8 - 5.2 lbs/ft3	ASTM D-3574-01
Ohms	10e3 - 10e5 point-to-point	ASTM D-257
Indent Force Deflection @ 25%	7-17 psi	ASTM D-3574-01
Flame Resistance	N/A
Shelf Life	Long Term

Ideal Use Cases

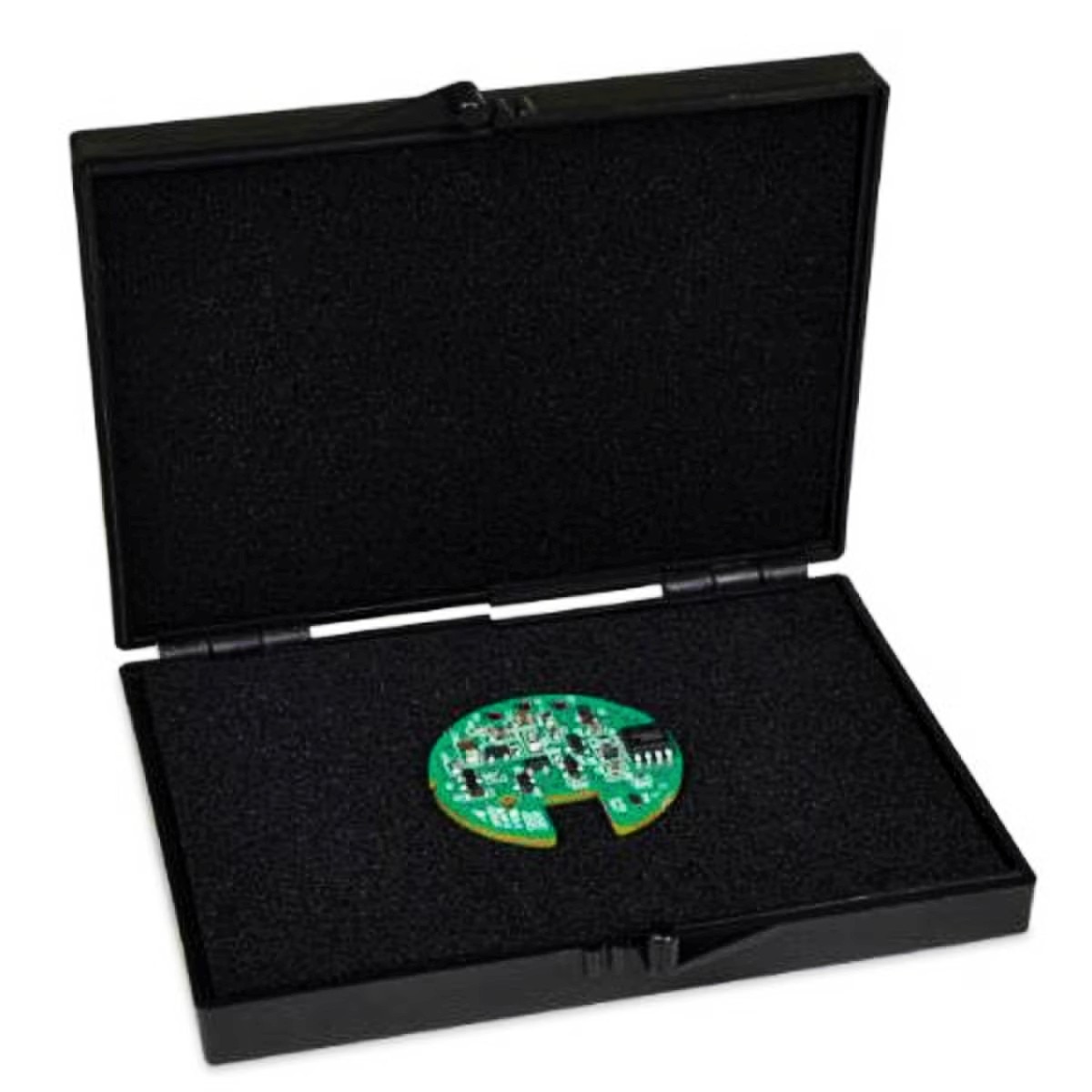

This Pillowstat Shipper is an ideal solution for packaging ball grid arrays, wafers and components with fine pitched leads. It ensures that components are securely stored and remain undamaged during transportation.

Commitment to Quality

Correct Products is committed to delivering high-quality products that meet the stringent standards required by industries handling sensitive electronic components.

Ordering and Contact Information

For purchasing or to learn more about the PP1030 PillowPak Shipper customers are encouraged to contact Correct Products directly. The company offers expert consultation to provide tailored solutions that best fit the specific requirements of your ESD packaging needs.
For further details or to place an order contact Correct Products.

Shipping Made Easy

Choose the delivery method that works best for you. You can even ship using your own UPS or FedEx account number for complete control over your logistics.

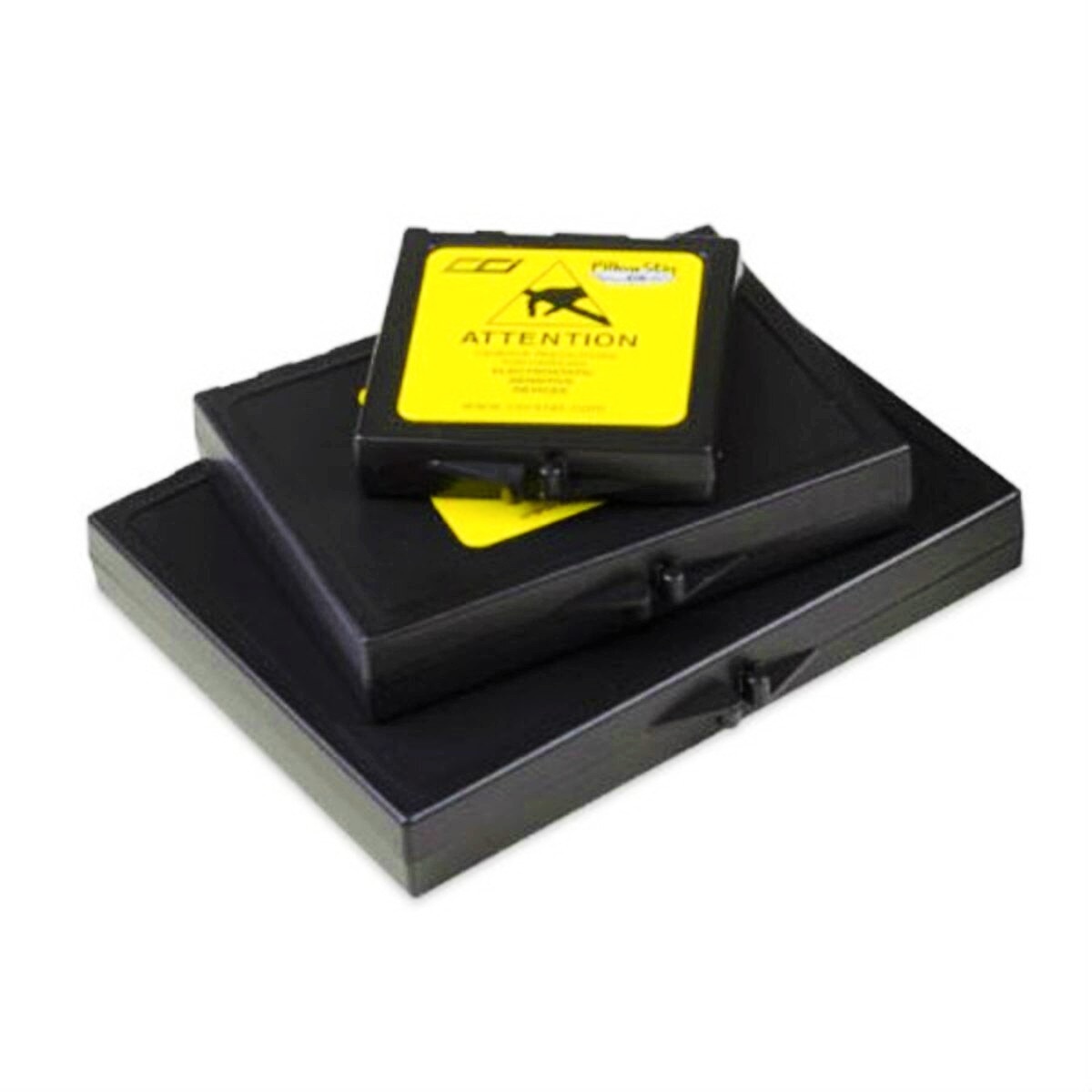

Conductive PillowStat Boxes Bulk Orders Welcome
