CP5007R Conductive Foam, High Density Polyethylene, Lead Insertion Grade, 24" x 36" x 1/2"
Description

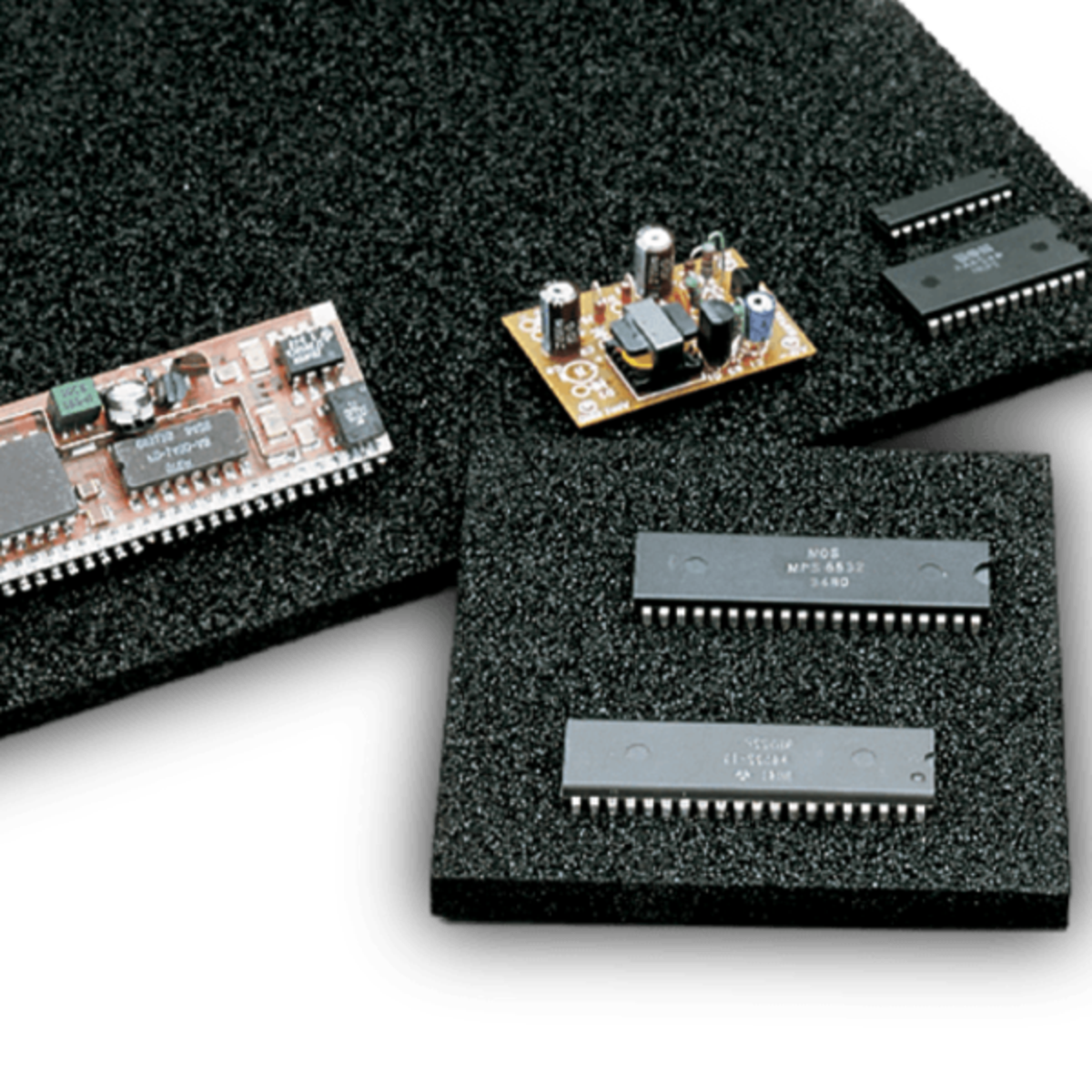

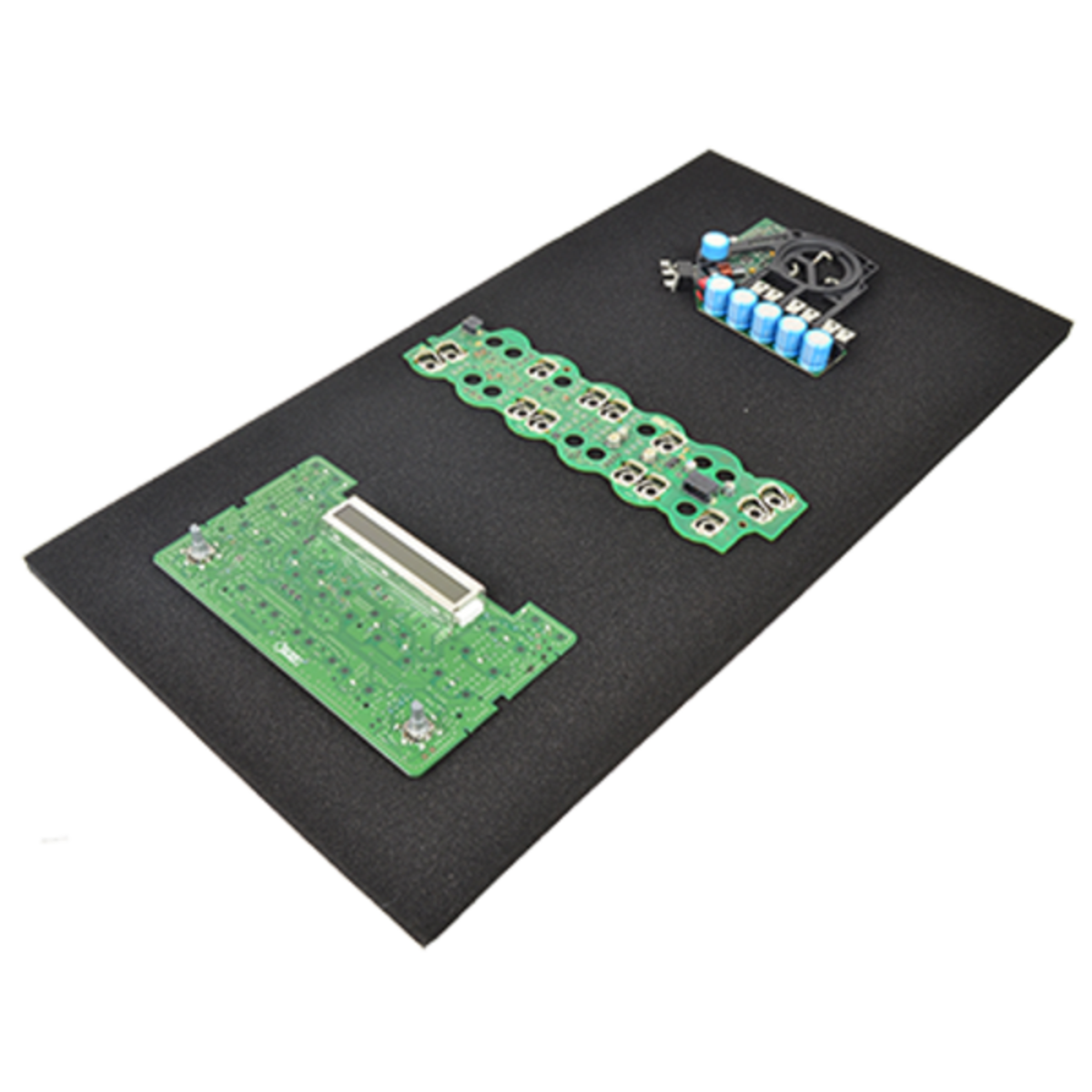

Black Conductive Polyethylene foam offers chemical and physical stability and is good for long term storage. This high density closed cell foam is ideal for lead insertion, but can also be used for ESD shelf liners, lining the bottom of conductive totes and pads for ESD shipping boxes. This material can be die cut or waterjet cut to make precise cavities to hold devices secure when ESD or FOD are of high concern - contact us for custom configurations!
- Excellent pin-insertion and pin-retention characteristics without particulation
- Volume Resistance: 10e3-10e5 ohms/sq
- Surface Resistance: 10e3-10e5 ohms/sq
- Density: 1.99 lbs/ft3
- Color: Black
- Low FOD
- Easy to die cut or waterjet
- Permanent ESD characteristics
- Size: 24" x 36" x 1/2"
- Color: Black
- Download the Spec Sheet
