SCS 724 Constant Workstation Monitor For Dual Wire ESD Wrist Straps
Description

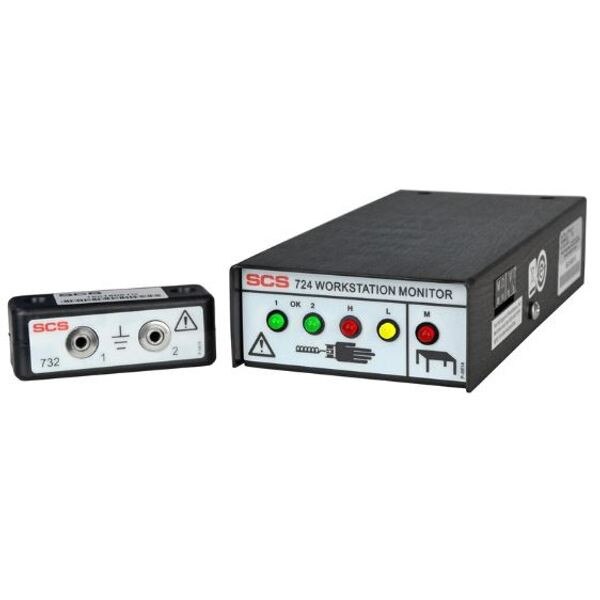

The SCS 724 wrist strap workstation monitor continuously verifies the resistance of the operator and worksurface ground connections. Features audible and visual fault alarms; the loudness of the alarm is adjustable. The 724 can monitor a visitor to the workstation or a second operator at the same workstation. In addition, the 733 remote splitter kit may be used to monitor two operators at independent workstations that are in close proximity.
- For use with SCS dual conductor wrist bands and cords (purchased separately)
- Meets ANSI/ESD S20.20 Continuous Monitor required limits
- Adjustable operator test voltage and upper limit

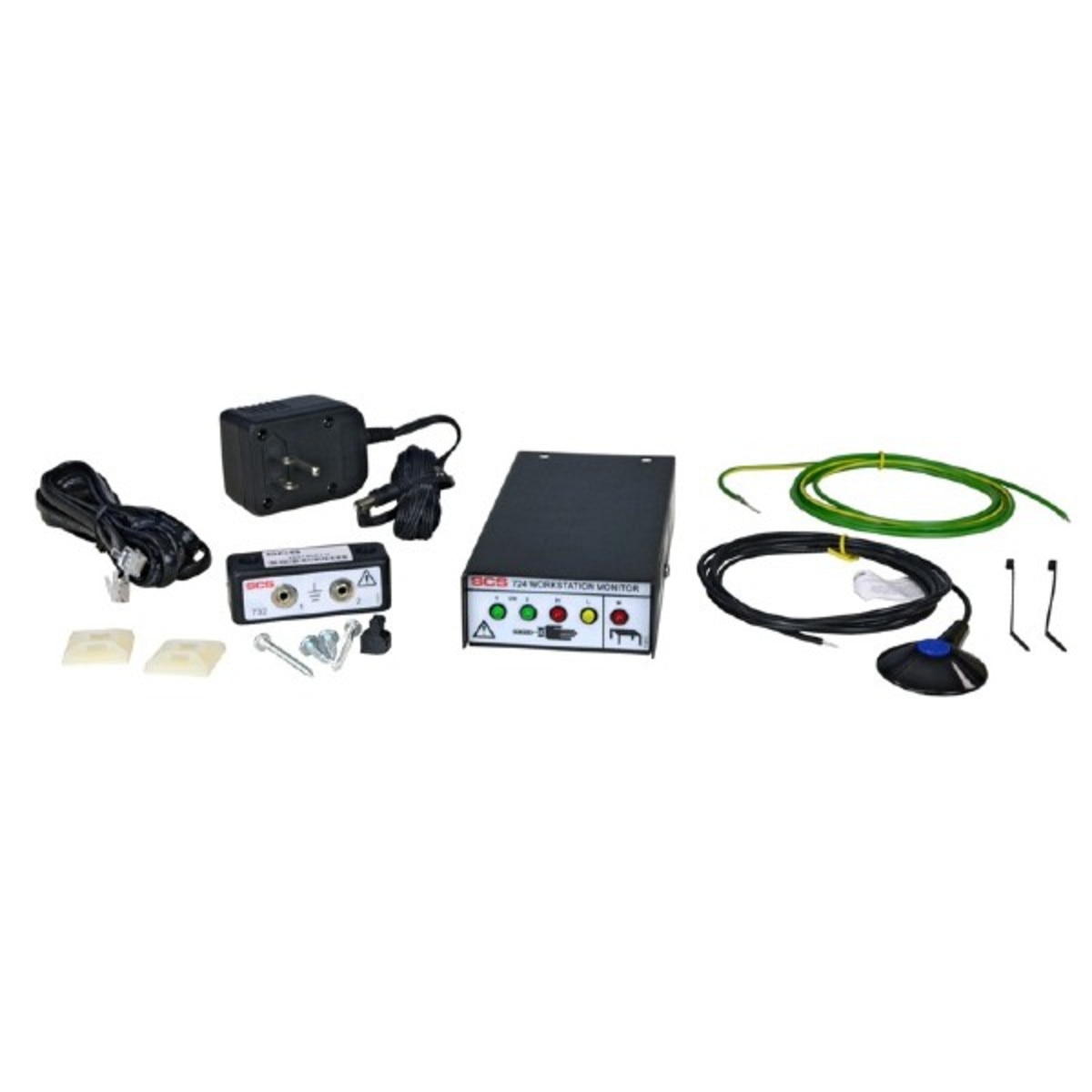

SCS 724 Workstation Monitor Includes:
1 - 724 Workstation Monitor
1 - 732 Dual Remote Input Jack
1 - North American Power Adaptor
1 - Monitor Ground Cord
1 - 2380D Mat Monitor Cord
1 - Two-Wire Connector
4 - Mounting Screws
2 - Wire Management Clips
1 - Certificate of Calibration
