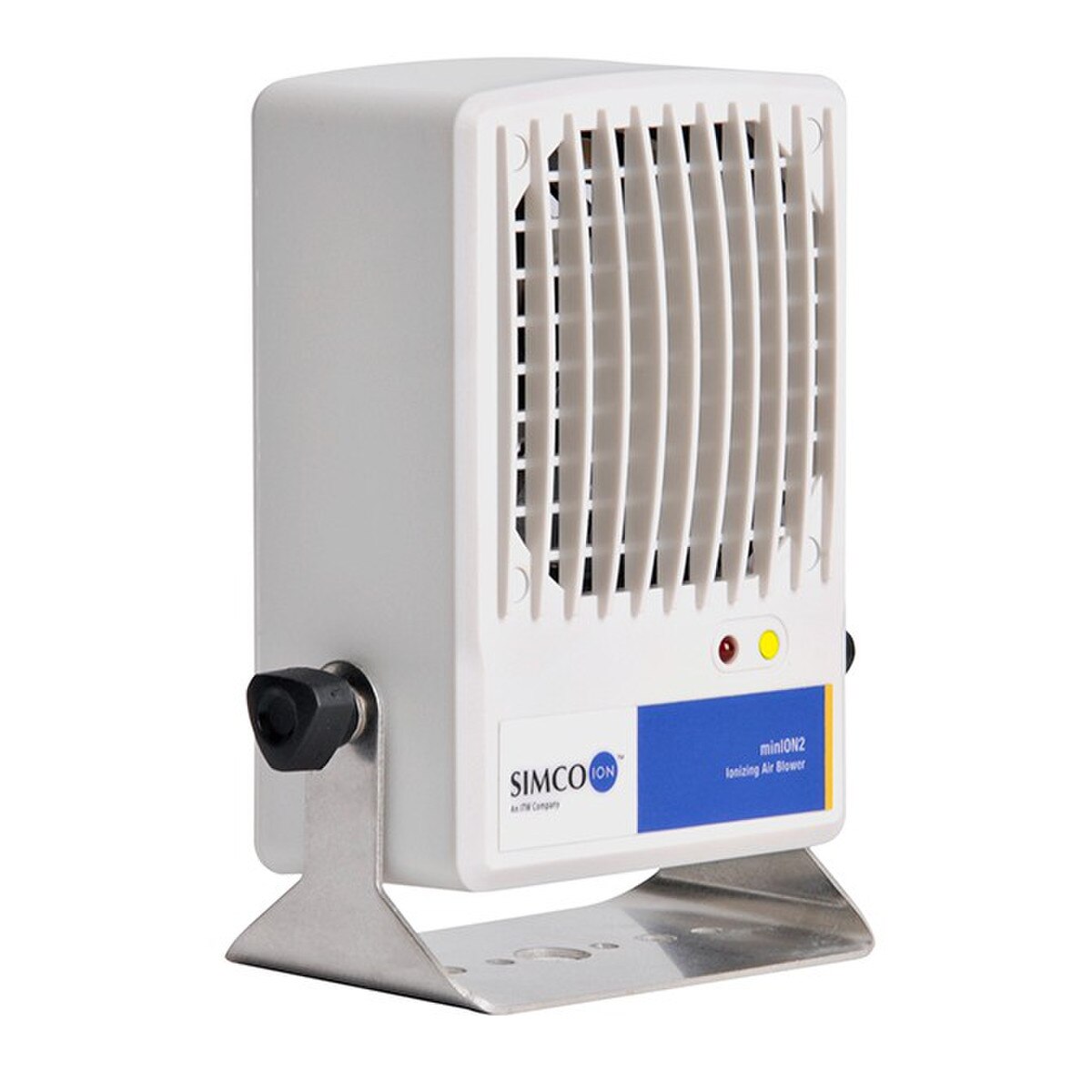

Simco-Ion 4011425 MinION2 Personal ESD Ionizer

(0)No Reviews yet
SKU: 4011425

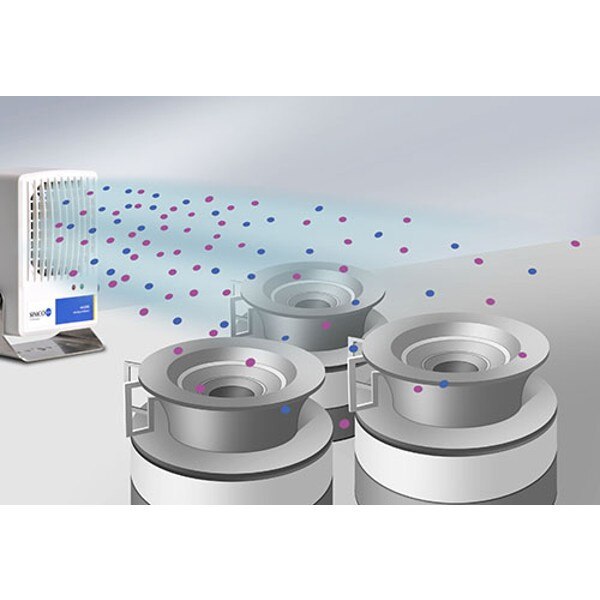

Simco-Ion's minION2 Ionizing Blower is designed to control electrostatic charges in sensitive electronics assembly and automated tool applications requiring stable operation with fast discharge time performance.  The minION2 is built to deliver big performance and reliability in a compact package with a practical feature set.

A combination of unique, patented features incorporated in this product makes it possible for the minION2 to deliver industry-leading performance.  Simco-Ion's steady-state DC corona ion technology provides a patented control circuitry to deliver consistent performance.  Performance is enhanced by the use of a patented radial ion emitter design.  A unique geometry and airflow control provides performance meeting the demands of electronics and critical assembly manufacturers with corona ion technology.

The minION2 uses a modular wiring system that allows power delivery by "daisy-chaining" up to 3 units on one standard, modular power supply.  Hardwiring of power can be accommodated by the use of a terminal block located on the back of the unit.  The terminal block also features a relay contact output of the fault signal to enable remote monitoring.;

An optional clamp-on articulating arm stand is available for applications requiring an elevated position or to save work surface space.

  • Compact design
  • Self-balancing control circuit technology
  • Modular Wiring System
  • Local LED and relay contact alarm signal
  • Balance:  +/-10V using auto-adjust
  • Discharge:  2 sec @ 1"(30 mil.) fan high (1000-100V)
  • Coverage:  1" x 3" (30x91 cm) area
  • Controls:  Two positions OFF/ON
  • Dimensions:        3.875"W x 5.375"Hx2.375"D

  • Portable enough for field service applications; large enough for permanent benchtop or in-tool operation
  • Self-monitoring to ensure controlled, consistent ion output
  • 24 VDC input power supplied by a wall AC adapter or by local tool power; up to 3 units daisy-chained from one power source
  • Convenient indication of fault ionization operation
