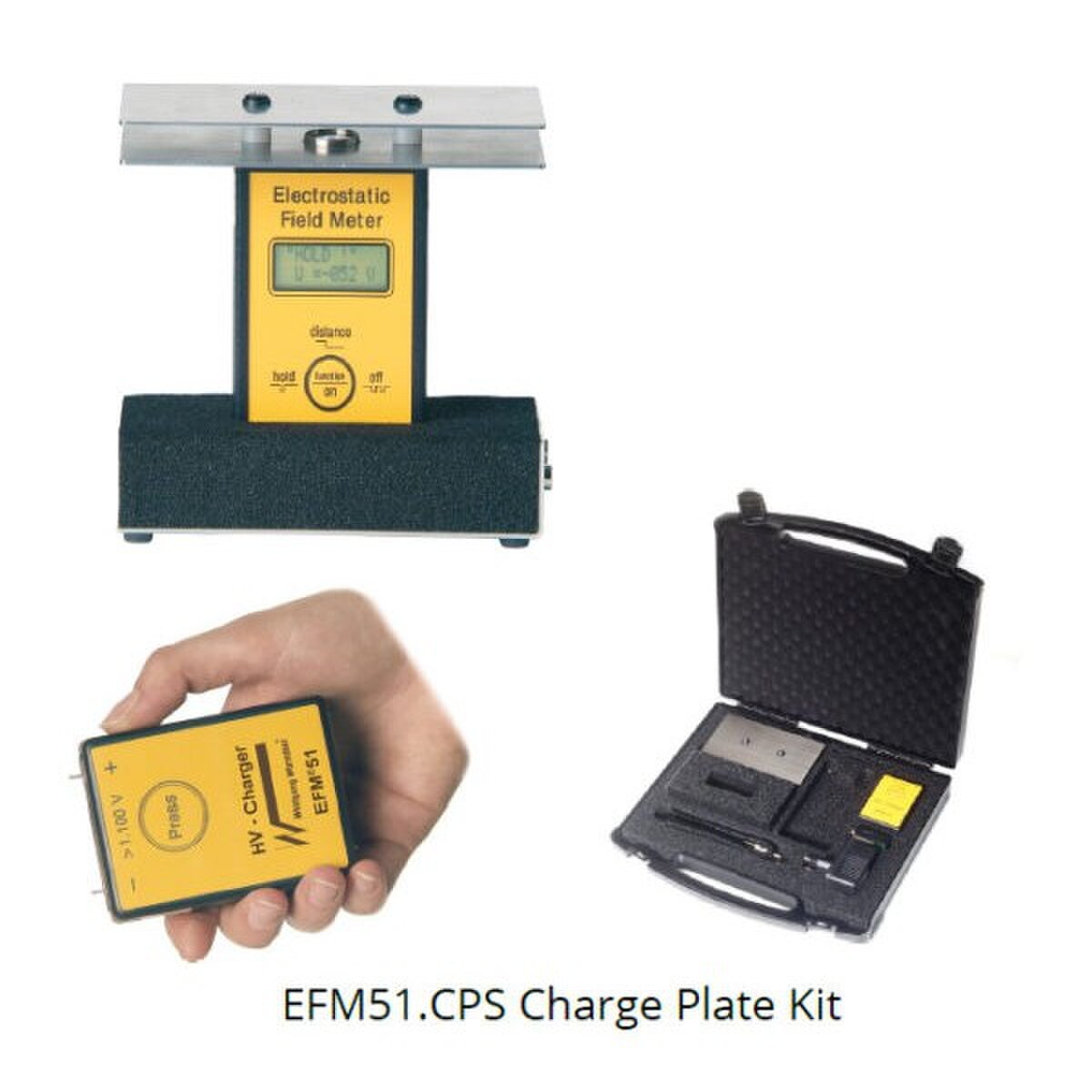

Warmbier 7100.EFM51.CPS Full Charge Plate Kit, Includes Field Meter, Voltage Generator, Charge Plate, Base & Carrying Case

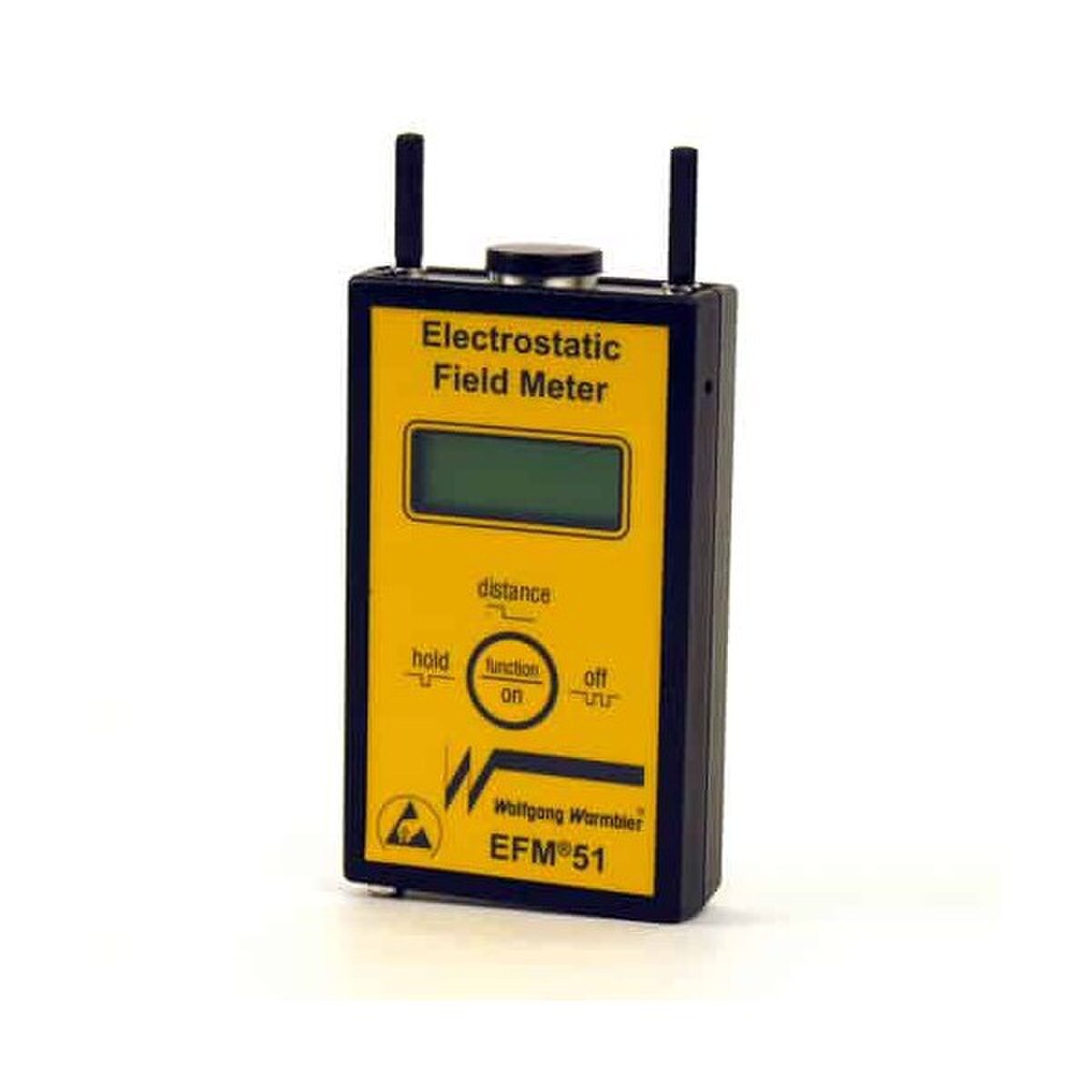

The Warmbier 7100.EFM51.CPS Charge Plate System Kit includes is a full-featured hand-held field meter used to perform static surveys and evaluate charge accumulation in electronic manufacturing and in industrial operations. The electrostatic field strength value (V/m) will automatically be translated to the electrostatic potential (V) according to the preset distance. An additional field strength mode is also available. Included i the kit is a Charge Plate Set that can be used to check and verify ionizer efficiency and offset voltage. The kit measures static decay times from +/- 1.000volts to +/- 100volts.

FEATURES:

• Portable, Battery Powered Meter
• Digital LCD Results Display
• Test Ionizers

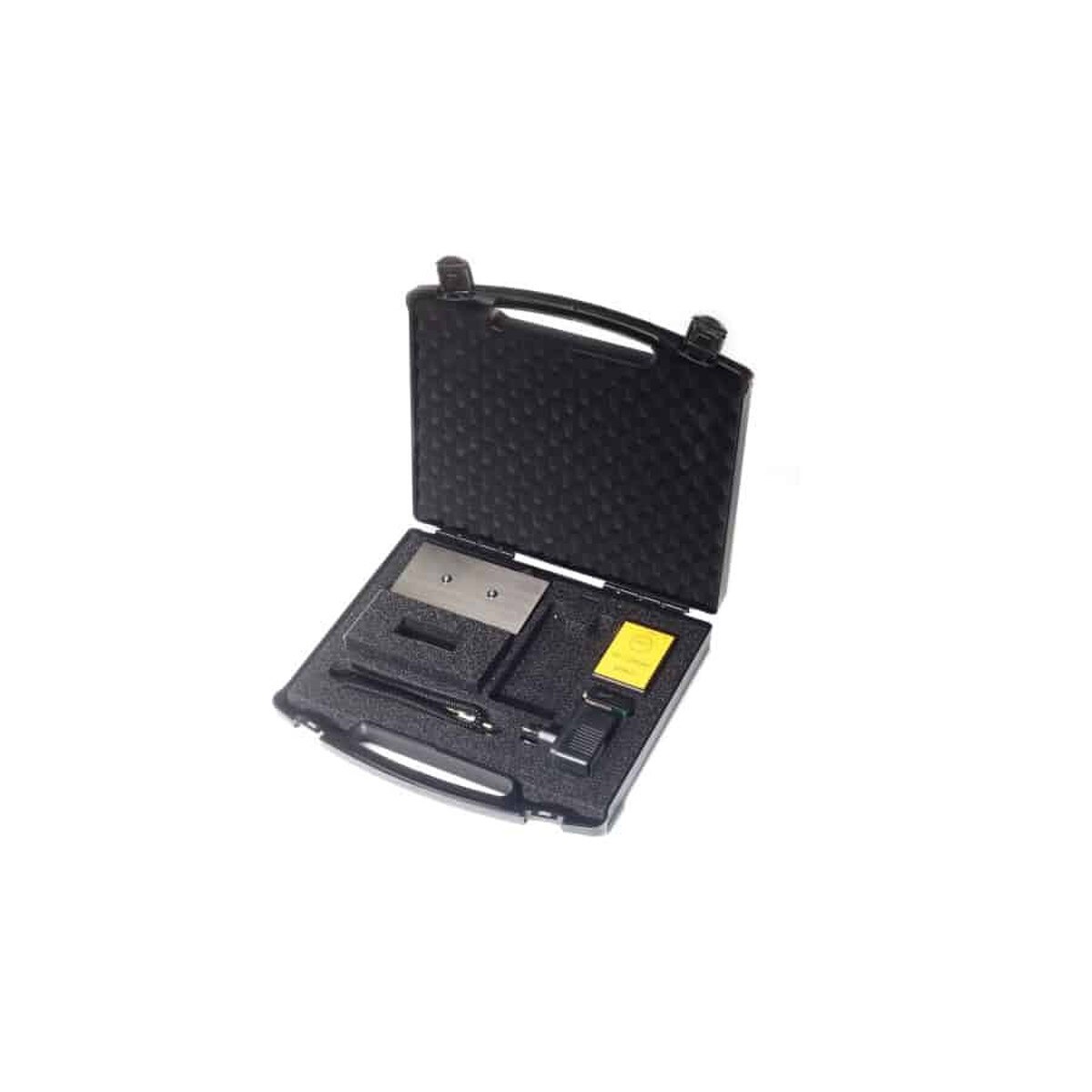

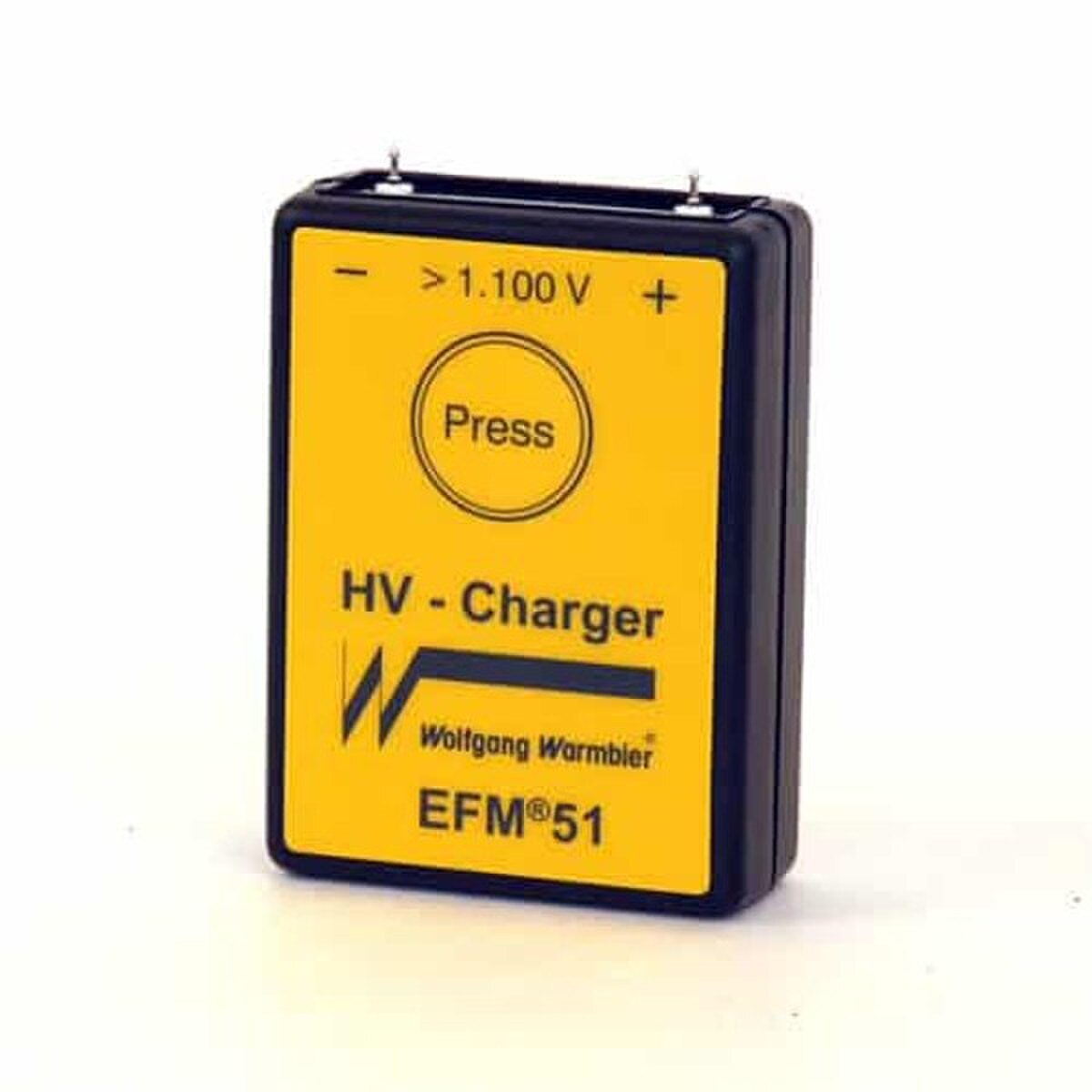

• This full kit includes the EFM51 Field Meter, High Voltage Generator, Base, Charging Plate, Ground Connection Carrying Case and Batteries




PRODUCT SPECIFICATIONS:

• Test Method: Rotating chopper
• Test Range: OV- +/- 160kV distance mode, 0-800 kV/m field strength mode
• Display: 2 lines, 12 digits alphanumeric LCD display
• Operation: 9V alkaline Battery operated
• Operating Time: Approx 10 hours at continuous operation with alkaline battery
