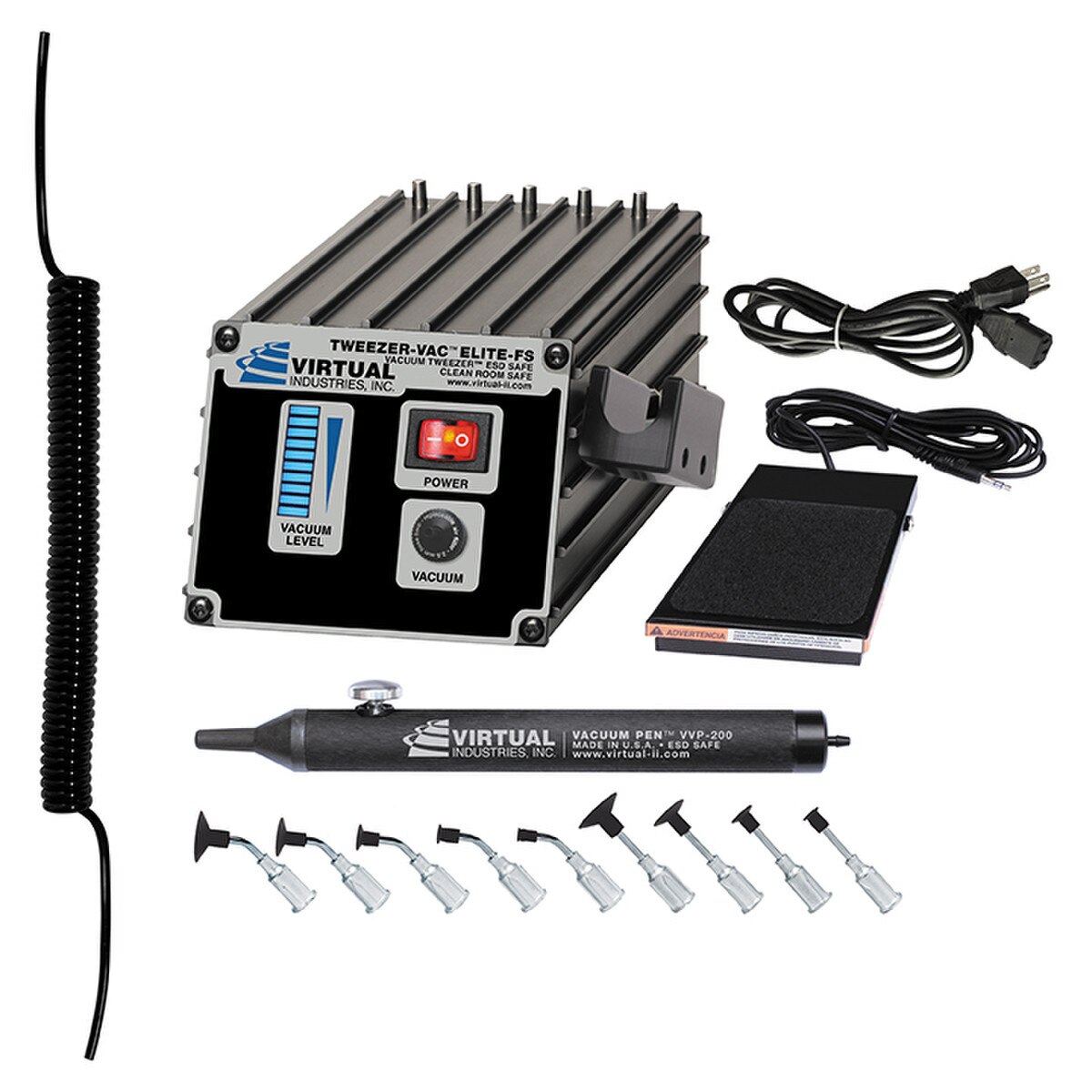

Virtual TV-1500-ELITE-FS-110 TWEEZER-VAC™ ELITE ESD-SAFE Kit With Foot Switch, And Buna-N Static Dissipative Non-Marking Vacuum Cups With Probes
Description
This TWEEZER-VAC™ uses an integrated ten segment bar-graph-display that visibly shows the vacuum level present during operation. The bar graph will show minimum vacuum pressure until a part is grasped and then when a part is grasped the bar graph displays the vacuum level presented to the part being handled. Additionally, the vacuum port integrates a user replaceable inlet filter that protects operation of the tool from dust particles.
These ESD-SAFE kits feature:
- Five vacuum tip holders on top of tool.
- Bar graph power-on and vacuum-level indicator.
- Rubber no-skid feet.
- ESD ground connection is by three wire power cord.
- Produces vacuum up to ten inches of mercury.
- Long life pump.
- Side mounted handle holder with sensor.
- Replaceable inlet filter.
- Dimensions 8” X 3” X 3.5” (203mm X 76mm X 89mm).
- Class 100 Cleanroom Safe.
This Kit includes:
- ESD Safe coiled permanent static dissipative vacuum hose 5’ (VCH-2.5mm-5)
- Push-Button Vacuum Pen (VVP-200-2.5mm)
- Foot Switch (VFS-X) with internal solenoid
- Vacuum Cup Kit-9 (VCS-9-B)
- 3 Wire Power Cord
- 110 Volt or 220 Volt
- Hose color may vary
