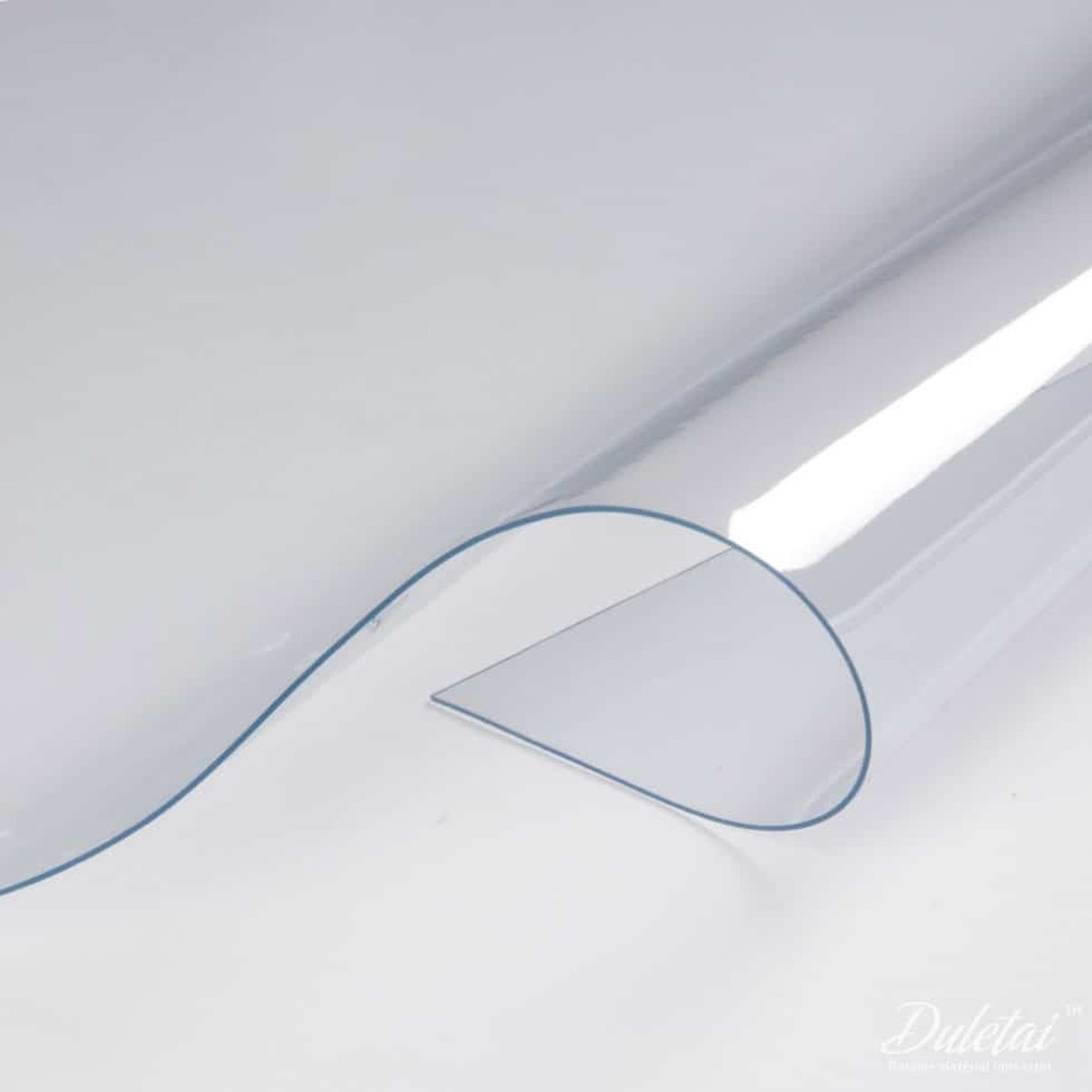

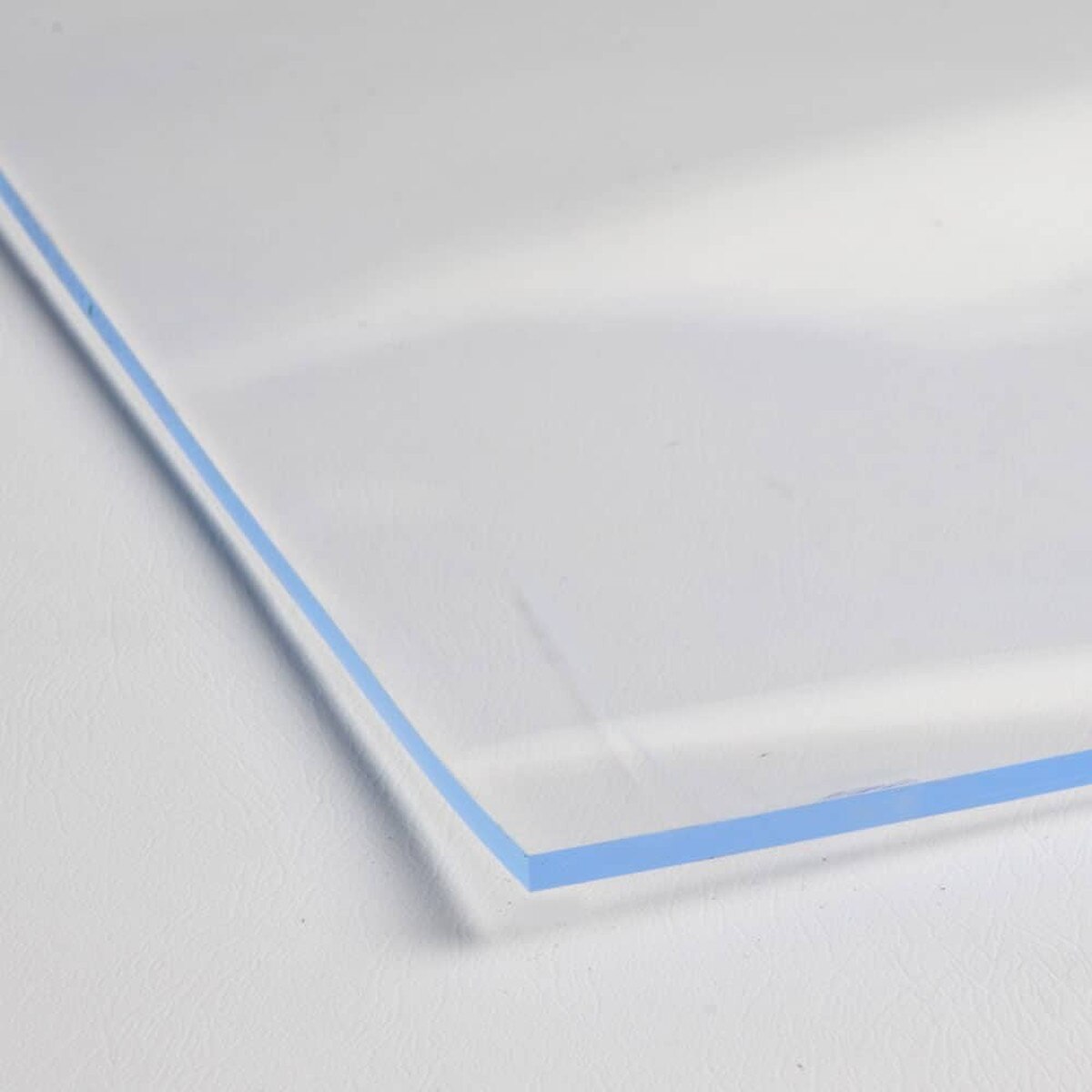

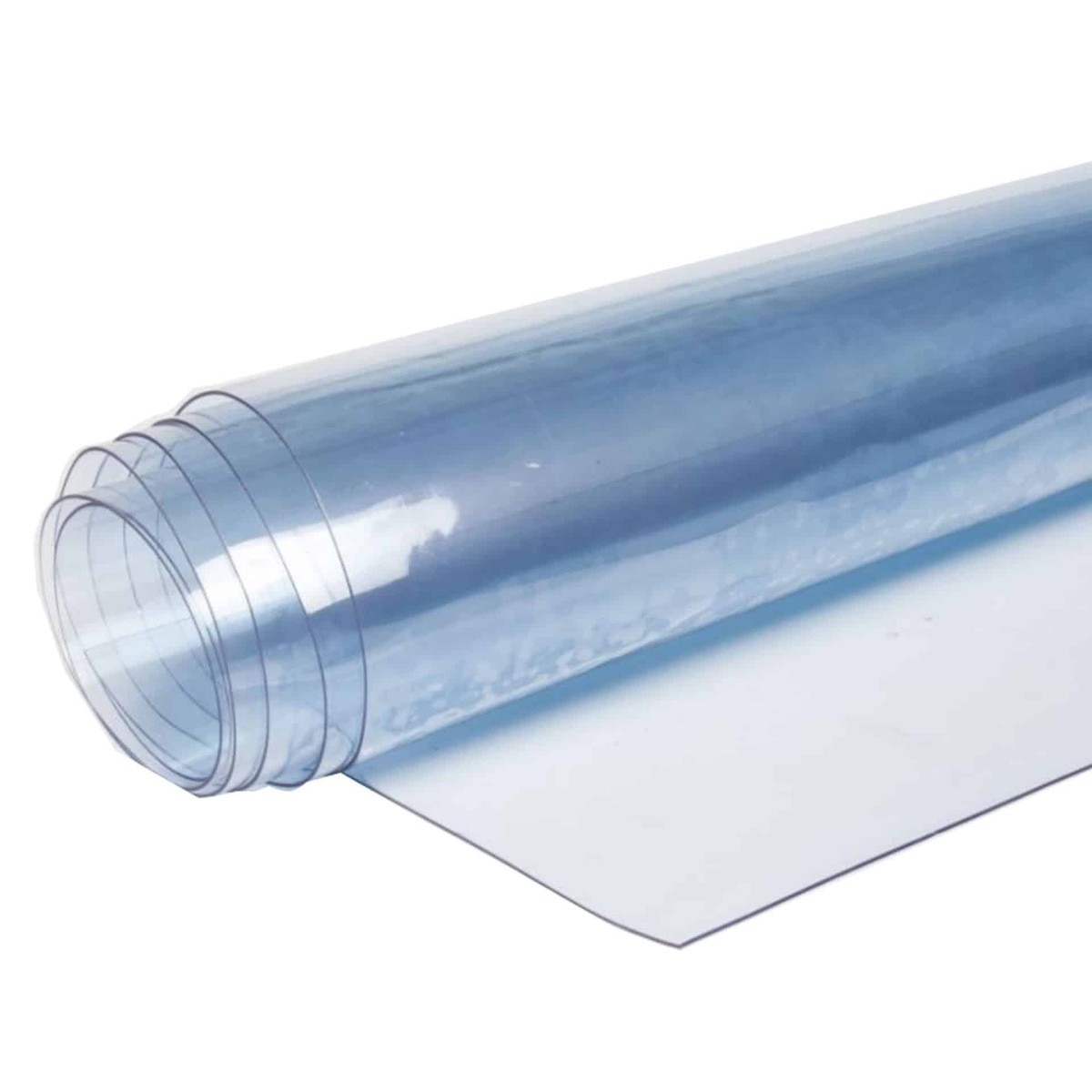

Transforming Technologies MT554860 IDP-Stat Cleanroom ESD Table Mat, 4' x 5', .040" Thick
Description
Protect your sensitive items with this ultra-clean, particle-free, permanently static dissipative cleanroom ESD matting. The IDP-STAT 5500 series utilizes a patented inherently static dissipative polymer alloy system to provide clean, permanent ESD protection. The IDP-STAT 5500 series provides consistent static dissipation that is not dependent on humidity and will last the life of the mat.
With minimal cleaning requirements, the IDP-STAT material is ideal for cleanroom settings. Engineered with superior durability and see-through clarity, the IDP-STAT 5500 is an ideal material for softwall panels to separate working areas in controlled environments such as cleanrooms and data centers. The IDP-STAT 5500 series meets for exceed the requirements of ESD STM-4.1-2017, ESD STM-4.2-2012 and ANSI/ESD S-20.20
Applications:
Ideal for use in controlled environments such as cleanrooms. Creates an ultra-clean ESD-safe work area by grounding for electrical charges as well as protecting the work surface from damage.
Specifications:
Thickness: 1MM (0.040 MIL)
Hardness: 60 Shore A
Temperature: 190F (87C)
Color: Transparent
Material: TPU Alloy
Resistance to Ground (RTF): 3 x 10^8 ohms
Resistance Point to Point (RTT): 5x10^8 ohms
Static Decay: 0.01 Seconds (+5000V to 50V), 0.01 Seconds (-5000V to -50V), 0.1 Seconds (+1000V to 100V)
- Non-outgassing, non-blooming
- Contains no particulates, plasticizers or phthalates
- Made with IDP-STAT Alloy-permanent static dissipative properties
- Transparent - can be used as Softwalls
With minimal cleaning requirements, the IDP-STAT material is ideal for cleanroom settings. Engineered with superior durability and see-through clarity, the IDP-STAT 5500 is an ideal material for softwall panels to separate working areas in controlled environments such as cleanrooms and data centers. The IDP-STAT 5500 series meets for exceed the requirements of ESD STM-4.1-2017, ESD STM-4.2-2012 and ANSI/ESD S-20.20
Applications:
Ideal for use in controlled environments such as cleanrooms. Creates an ultra-clean ESD-safe work area by grounding for electrical charges as well as protecting the work surface from damage.
Specifications:
Thickness: 1MM (0.040 MIL)
Hardness: 60 Shore A
Temperature: 190F (87C)
Color: Transparent
Material: TPU Alloy
Resistance to Ground (RTF): 3 x 10^8 ohms
Resistance Point to Point (RTT): 5x10^8 ohms
Static Decay: 0.01 Seconds (+5000V to 50V), 0.01 Seconds (-5000V to -50V), 0.1 Seconds (+1000V to 100V)
