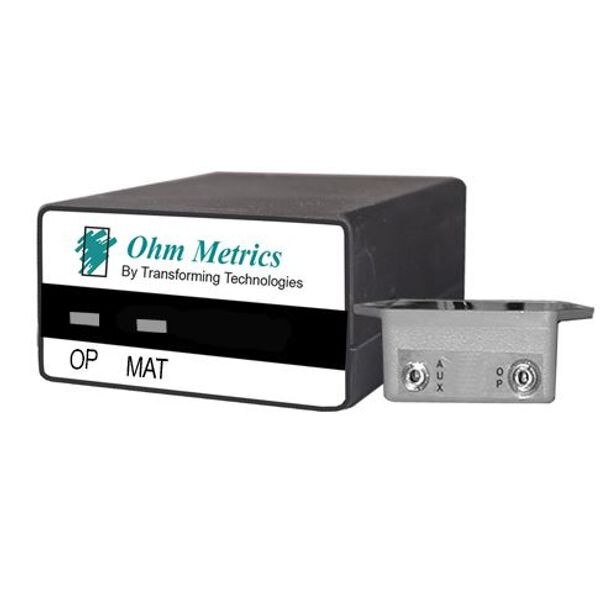

Transforming Technologies CM1602 Dual Conductor Resistance Monitor, Single Operator & ESD Mat
Description
The CM1602 RangerTwo is an extremely sensitive monitor that accurately measures the electrical resistance of an ESD wrist band and work surface and signals if the devices fail. Audible and visible alarms are triggered if the operator’s resistance exceeds 35 meg ohm. Constant monitors save time by eliminating the need for daily testing of wrist straps and coil cords.
Resistance based monitoring is the most complete wrist strap monitoring system available. Workstations using resistance monitors are almost never at risk for a failed ground connection. This type of monitor is used with a two wire (dual conductor) wrist strap. When a person is wearing a wrist strap, the monitor observes the resistance of the loop, consisting of a wire, a person, a wristband, and a second wire. If any part of the loop should open (become disconnected or have out of limit resistance), the circuit will go into the alarm state.
Resistance based monitoring is the most complete wrist strap monitoring system available. Workstations using resistance monitors are almost never at risk for a failed ground connection. This type of monitor is used with a two wire (dual conductor) wrist strap. When a person is wearing a wrist strap, the monitor observes the resistance of the loop, consisting of a wire, a person, a wristband, and a second wire. If any part of the loop should open (become disconnected or have out of limit resistance), the circuit will go into the alarm state.
- Monitors one wrist strap & one ESD work surface
- Compatible with dual wire wrist straps
- Audible and visual alarm indicators
