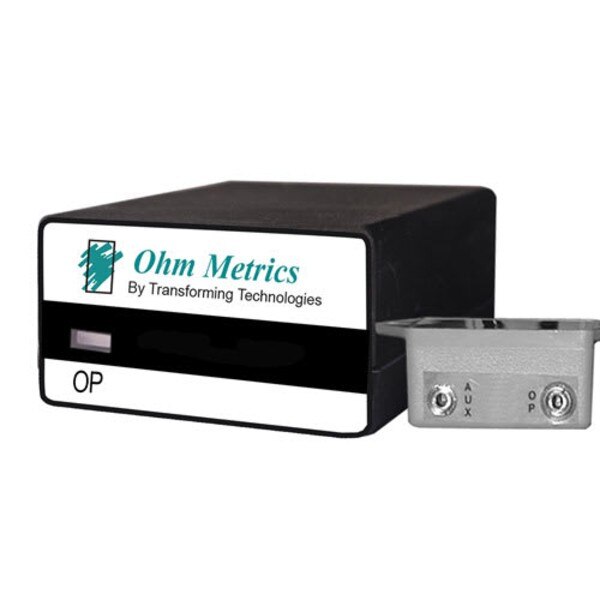

Transforming Technologies CM1601 Dual Conductor Resistance Monitor, Single Operator

(0)No Reviews yet
SKU: CM1601


The CM1601 RangerOne is an extremely sensitive monitor that accurately measures the electrical resistance of an ESD wrist band and signals if the device fails. Audible and visible alarms are triggered if the operator’s resistance exceeds 35 meg ohm. Constant monitors save time by eliminating the need for daily testing of wrist straps and coil cords.

Resistance based monitoring is the most complete wrist strap monitoring system available. Workstations using resistance monitors are almost never at risk for a failed ground connection. This type of monitor is used with a two wire (dual conductor) wrist strap. When a person is wearing a wrist strap, the monitor observes the resistance of the loop, consisting of a wire, a person, a wristband, and a second wire. If any part of the loop should open (become disconnected or have out of limit resistance), the circuit will go into the alarm state.

  • Monitors one wrist strap
  • Compatible with dual wire wrist straps
  • Audible and visual alarm indicators
