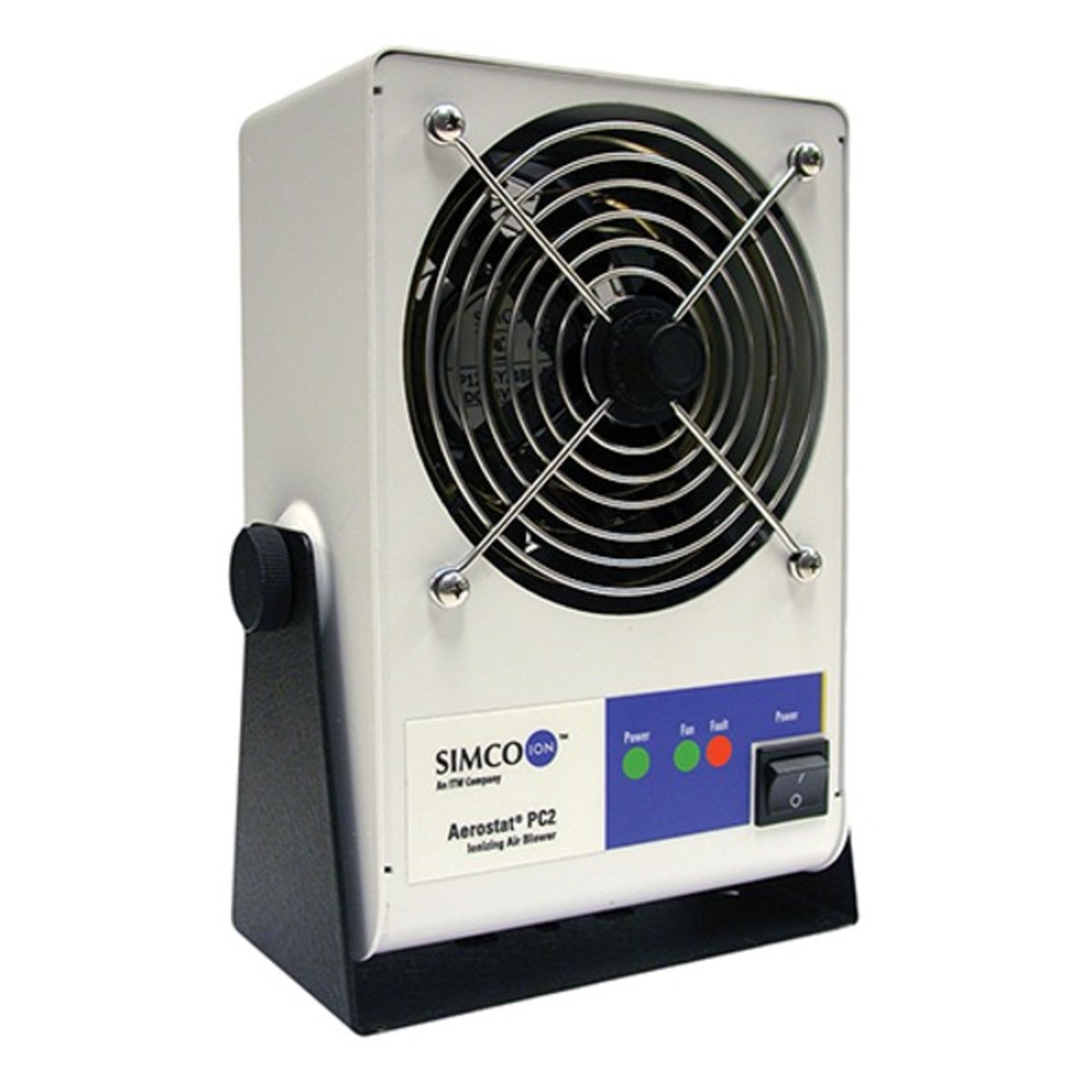

Simco-Ion 91-PC2-US-01HA Benchtop Ionizer with Audible Alarm and Heater
Description

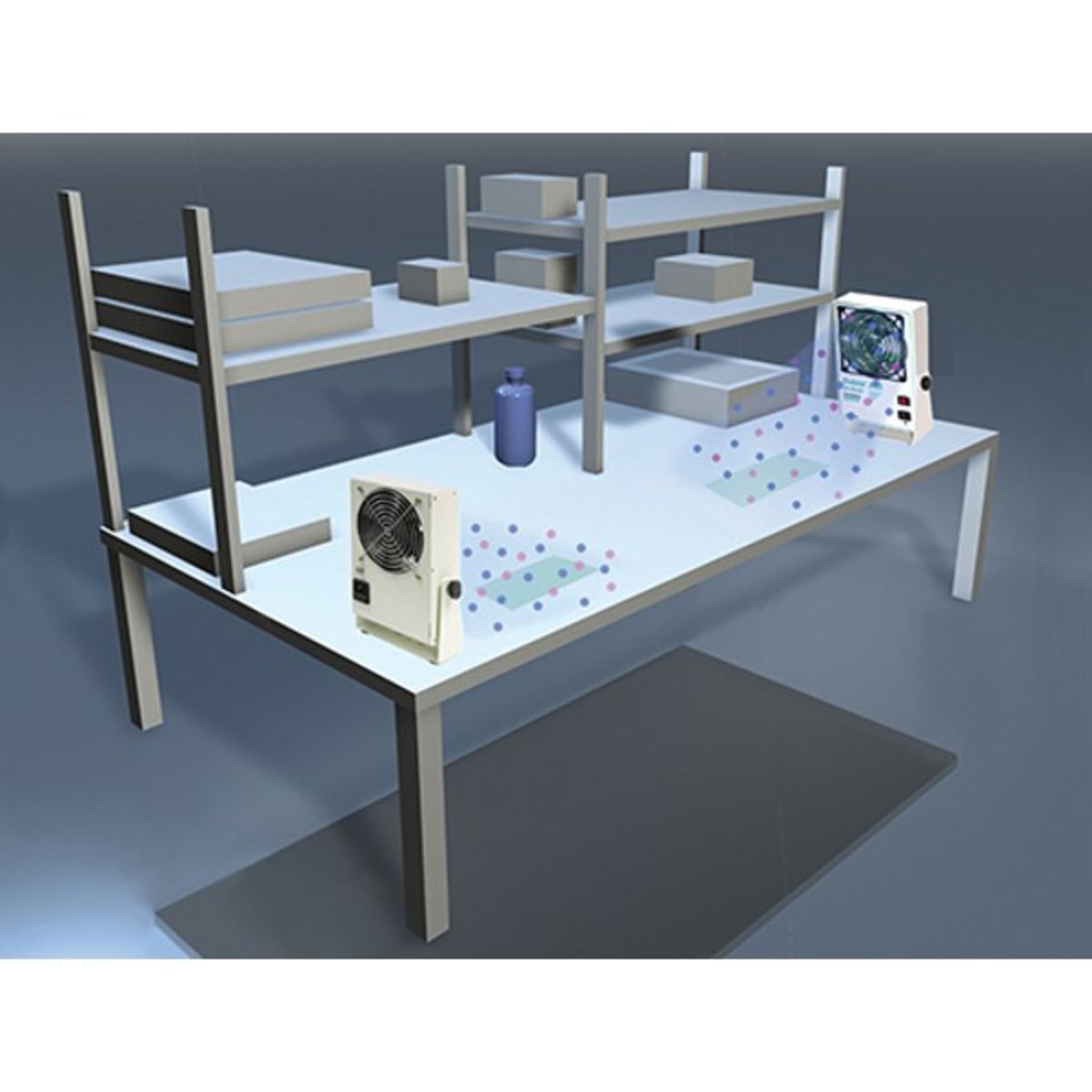

Simco-Ion's new Aerostat PC2 provides complete mini-environment ionization protection. As with its predecessor, the Aerostat PC Ionizing Blower, the Aerostat PC2 is designed and built for reliable, long-term static control for a variety of electronic, semiconductor, flat-panel display, and life science assembly applications. The PC2 offers outstanding charge neutralization for targeted mini environments and has sufficient air velocity to provide static control up to 4 feet (1.2m) across a bench-top work surface. The combination of size with the weight-saving design allows the Aerostat PC2 to be easily mounted inside process tools while creating a blanket of ionized air throughout the inside tool area.
The Aerostat PC2 offers inherent balance to 0+/- 10V for protection of sensitive electronic components. The PC2 is loaded with usability features including an adjustable locking stand, fan speed control, and separate balance and fan stall alarm LEDs with an optional audible alarm. These features make the Aerostat PC2 the ideal mini-environment ionization blower for assembly, test and packaging areas.
Features:
Benefits:
Specifications:
Coverage: 1'W x 4'L (30x122cm) area
Ion Emission: Micropulse AC Ionization
Emitters: Stainless Steel emitter points
Controls: POWER ON/OFF, FAN SPEED control LOW/MEDIUM/HIGH Indicators: Green POWER on, red FAN alarm, red FAULT alarm LED's
Air Volume: 129 cfm (high fan speed)
Audible Alarm: Fault and Fan Stall
Dimensions: 9.1"H x 6.8"Wx3.3"D (23.1H x 17.3Wx8.4D cm) with stand
Weight : 2.8 lbs (1.25kg) with stand with skid-resistant rubber feet
The Aerostat PC2 offers inherent balance to 0+/- 10V for protection of sensitive electronic components. The PC2 is loaded with usability features including an adjustable locking stand, fan speed control, and separate balance and fan stall alarm LEDs with an optional audible alarm. These features make the Aerostat PC2 the ideal mini-environment ionization blower for assembly, test and packaging areas.
Features:
- Discharge time of <2.0 seconds at 1 foot
- Lightweight, compact and quiet for unobtrusive use
- Local alarm LEDs, Facility Monitoring System (FMS) connection, and audible alarm
- +/-10V self-balancing (Micropulse) technology
- Built-in emitter point cleaner
- Integrated heater for warm airflow
Benefits:
- Fast, targeted neutralization of static charges
- Directed ionization designed for both workbench or in-tool areas
- Worry-free Ionization status can easily be monitored locally and at a remote location
- High precision balance ensures controlled and consistent ion output
- Minimizes the time required to perform normal maintenance
- Ensure a user-comfort environment
Specifications:
Coverage: 1'W x 4'L (30x122cm) area
Ion Emission: Micropulse AC Ionization
Emitters: Stainless Steel emitter points
Controls: POWER ON/OFF, FAN SPEED control LOW/MEDIUM/HIGH Indicators: Green POWER on, red FAN alarm, red FAULT alarm LED's
Air Volume: 129 cfm (high fan speed)
Audible Alarm: Fault and Fan Stall
Dimensions: 9.1"H x 6.8"Wx3.3"D (23.1H x 17.3Wx8.4D cm) with stand
Weight : 2.8 lbs (1.25kg) with stand with skid-resistant rubber feet
