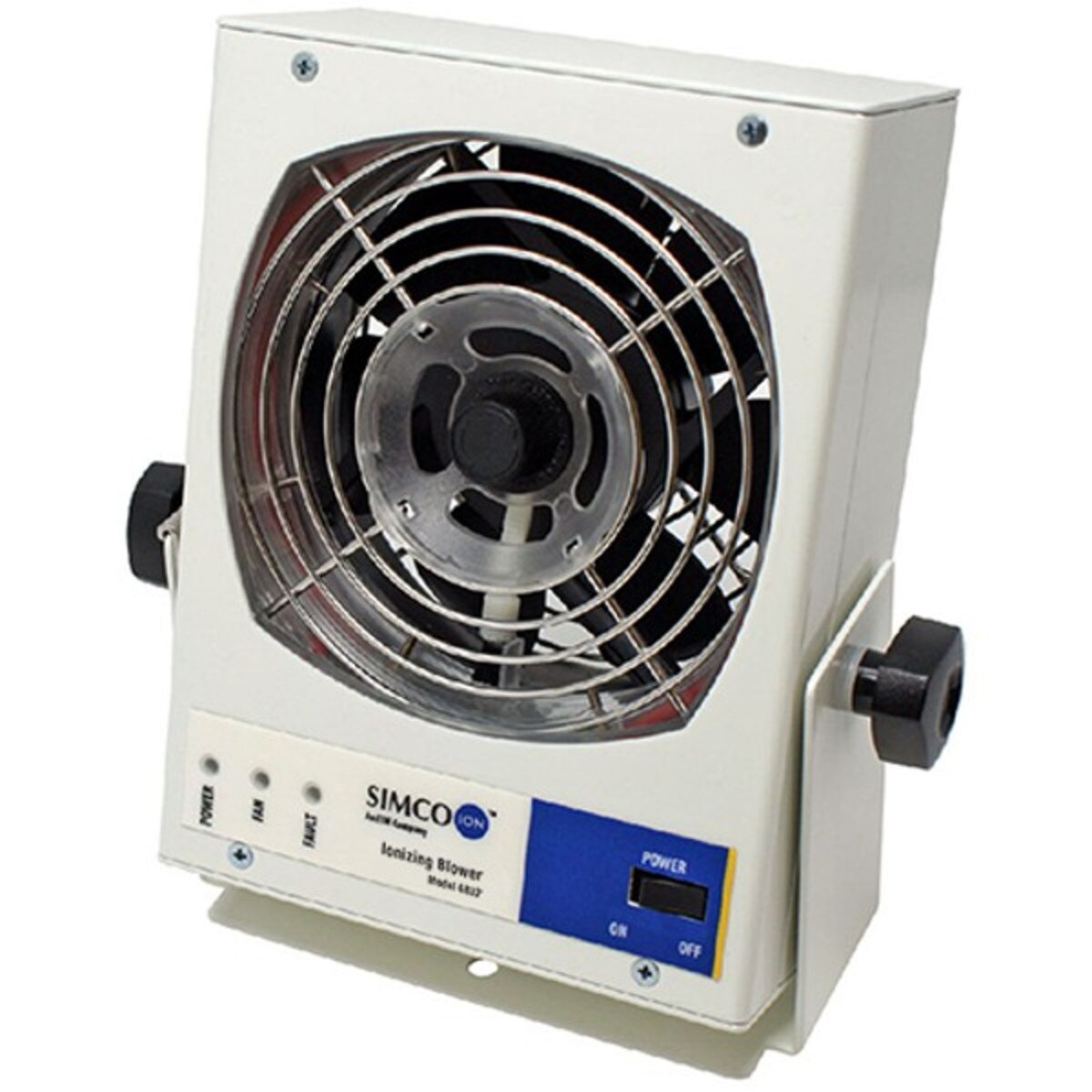

Simco-Ion 91-6832-01 General Purpose Electronics Benchtop Ionizing Blower

(0)No Reviews yet
$667.00
Brand: Simco-Ion
Category: Benchtop Ionizers
SKU: 91-6832-01
Priced Per: Each | Usually ships within 5-7 days

Description

The Simco-Ion General Electronic Blower Model 6832 provides reliable, fast static charge control for benchtop work areas or mounted in confined spaces, allowing optimal electrostatics management that minimizes cost and maximizes protection for ESD-sensitive areas.  An internal automatic balance control system ensures ionization continues to reach your target with complete accuracy presenting significant time and cost savings.

Model 6832 delivers precisely balanced and directed ionization to your target without taking up valuable room in your environment.  A greater concentration of emitter points and internal circuitry suited for high humidity applications makes the Model 6832 the standard choice for environments that need quality ESD protection with a proven design.

Features:
  • +/-10V or better balance
  • Cleanliness rated at ISO 14644 Class 4 (Fed. Std. 209e Class 10)
  • FMS connection and alarms for management control
  • Manual emitter point cleaning system
  • Small footprint @ 60 mm depth

Benefits
  • Provides the best corona-based ESD protection for maximizing yields
  • Designed for use in an environment with a controlled level of contamination
  • Increased control with immediate notification of alarms
  • Reducing maintenance costs and improved performance
  • Designed for confined space applications

Specifications:
Discharge: <2 sec @ 1' (30cm)(typ) taken in-line from center of fan (+/-1000-100V)
Ion Emission: Steady-state DC (corona discharge)
Emitters: Titanium emitter points, 8 per fan
Airflow: 129 cfm (typ) @ high speed
Cleanroom Class: Meets ISO 14644 Class 4 (Fed Std. 209E Class10)
Indicators:  Green POWER on, red FAN stall, red FAULT with optional AUDIBLE ALARM
Controls: Power/fan speed DIP switch with 4 speed/velocity settings, balance adjustment, FMS connections
Dimensions: 7.33"H x 5.12"W x 2.36"D
Weight: 2.03 lb
