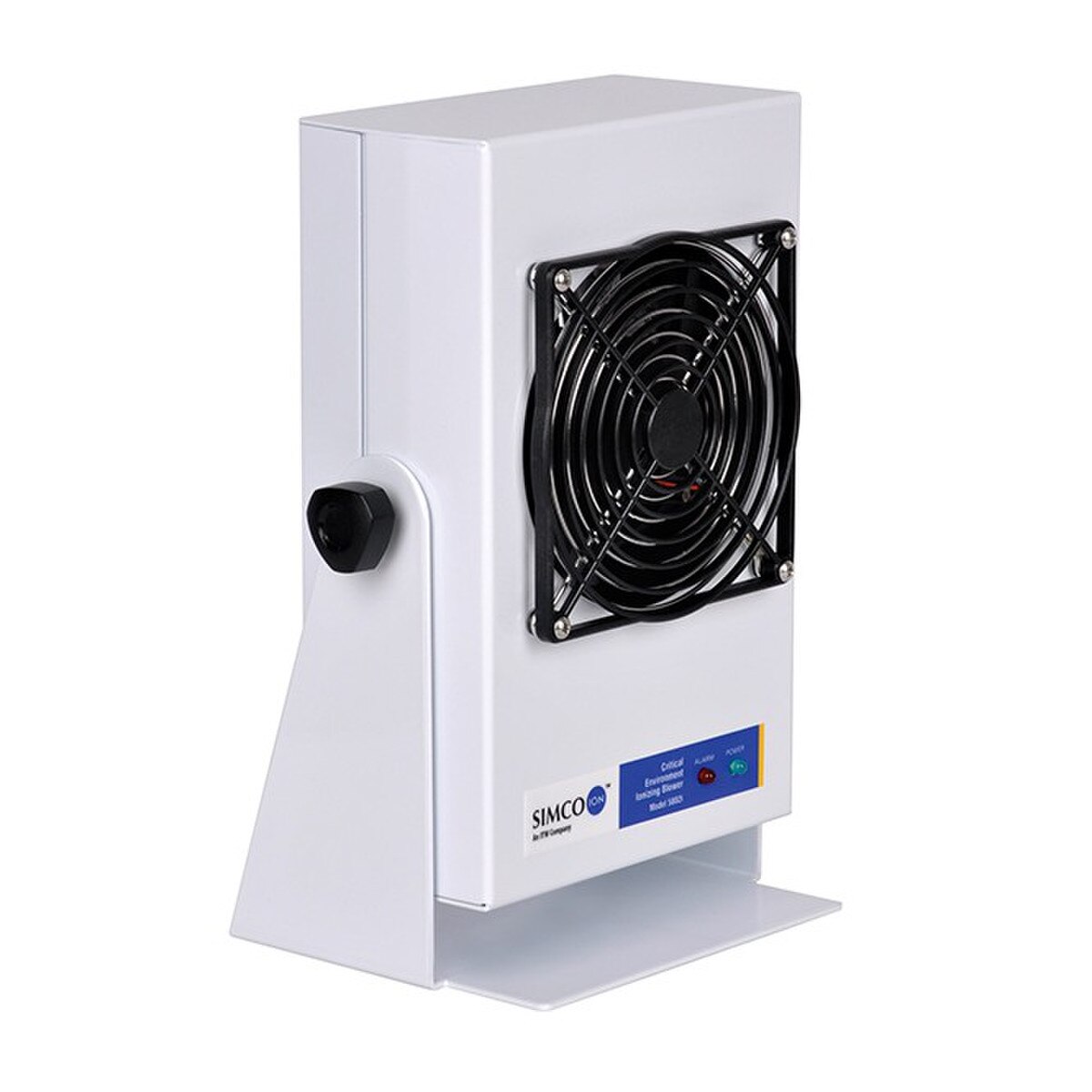

Simco-Ion 91-5802i-CXL Critical Environment Benchtop Ionizing Blower

(0)No Reviews yet
SKU: 91-5802i-CXL

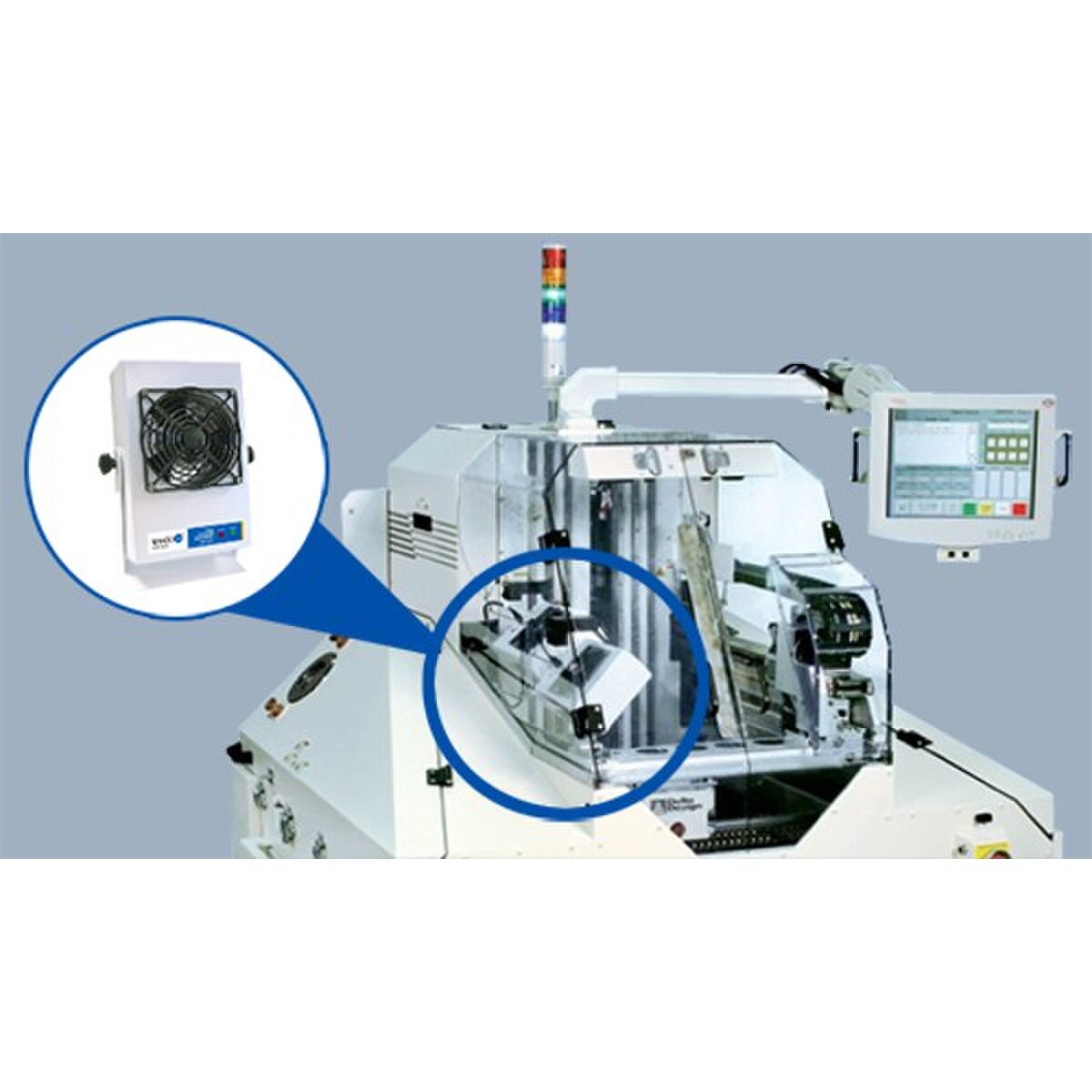

The Simco-Ion Critical Environment Benchtop Blower Model 5802i provides reliable, fast static charge control for benchtop work areas and small spaces, allowing optimal electrostatics management that minimizes cost and maximizes protection for ESD-sensitive areas.  An internal automatic balance correction system ensures ionization continues to reach your target with complete accuracy presenting significant time and cost savings.

The ionizer can operate with external sensors to maintain precise balance (better than +/-1V) by altering ion output and adapting to environmental changes.  With the optional sensor and collimator, the  5802i delivers precisely balanced and directed ionized air to your target without taking up valuable room in your environment.  A greater concentration of emitter points and internal circuitry suited for high humidity applications makes the Model 5802i the standard choice for environments that need quality ESD protection with solid design.

  • +/-3V or better balance (+/-1V with the optional external feedback system)
  • Cleanliness rated at ISO 14644 Class 4 (Fed. Std. 209e Class 10)
  • Options for sensor input, FMS connection, alarms and management control
  • Unique airflow directing collimator option
  • Auto-Clean System option

  • Provides the best corona-based ESD protection for maximizing yields
  • Designed for use in an environment with a controlled level of contamination
  • Increased control with immediate alarm notifications; prevention of unauthorized adjustment to power/fan speed
  • Significantly improves airflow delivery with faster discharge times from greater distances
  • Automates emitter point cleaning, reducing maintenance costs and time

Cleanroom Class:  Meets ISO 14644 Class 4 (Fed Std. 209E Class 10)
Indicators: Green POWER on, red FAULT alarm LEDs with optional AUDIBLE ALARM
Controls: Power/fan speed slide switch with off/low/high settings (pre-set fixed high speed available as an option), balance adjustment, optional sensor gain adjustment, sensor type selection and FMS connections
Dimensions: 10.5"Hx7.6"Wx5"D
Weight: 3 lbs
