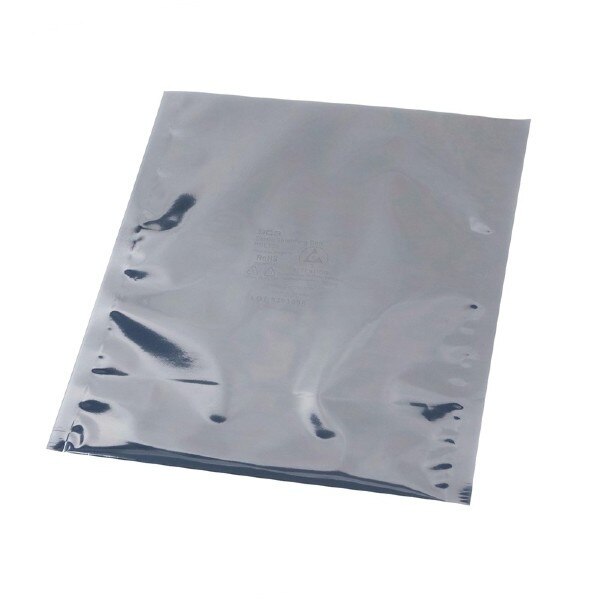

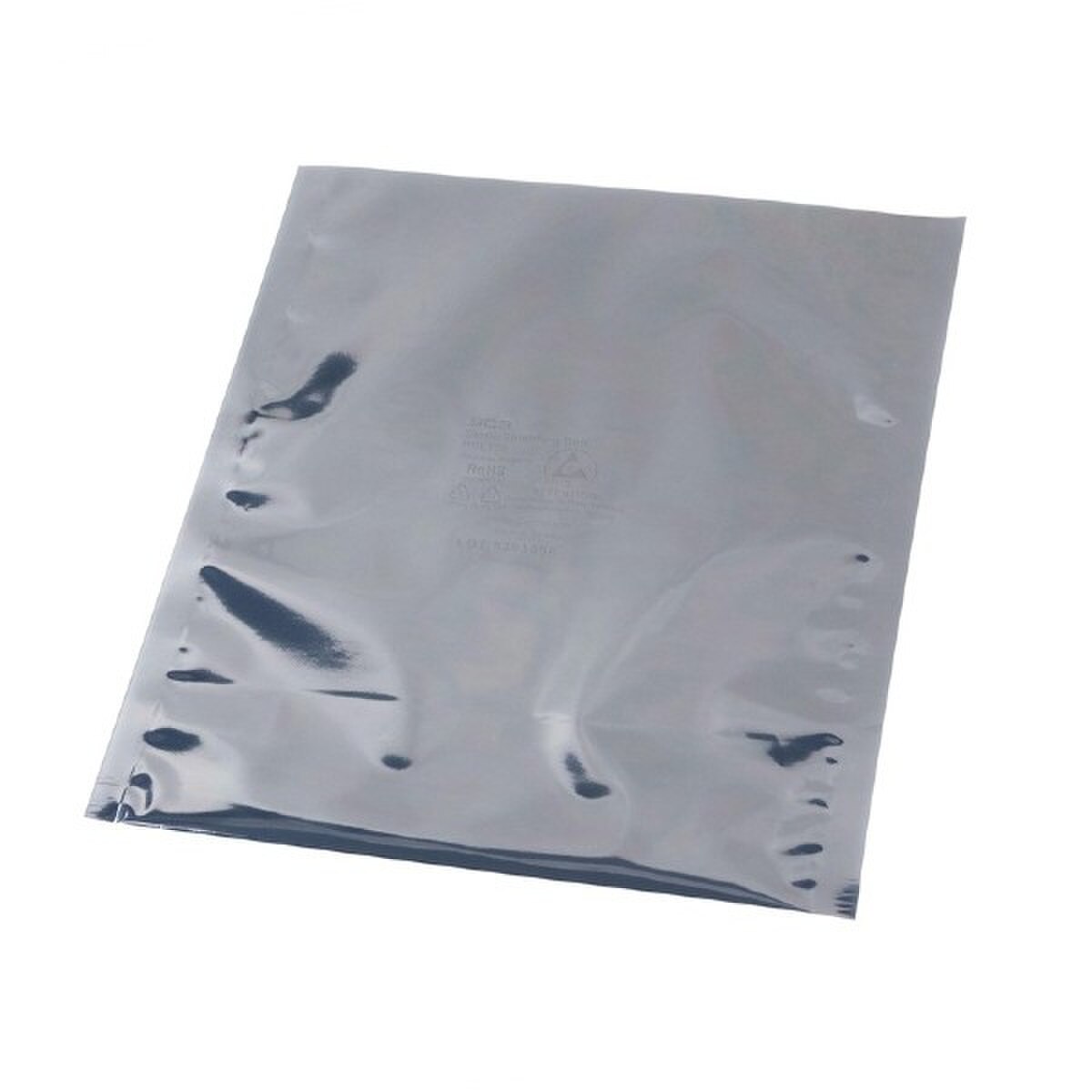

SCS PCL1002024 Series Cleanroom Static Shielding Bag, 20" x 24", 100/Pack

The SCS PCL10035 metal-in static shielding bag is certified to IEST-STD-CC1246C Level 100, and is designed to provide a static safe environment for ESD sensitive electronic devices. These bags address concerns for surface particulate in cleanroom applications.

• 2.8 mils thick
• Protects ESD sensitive contents from electrostatic fields and electrostatic discharge (ESD)
• Meets ANSI/ESD S20.20 and ANSI/ESD S541 requirements for ESD shielding packaging inside and outside an ESD protected area
• Dissipative inner and outer surfaces: 1 x 10e4 - < 10 x10e11
• Embossed with ESD protective symbol and lot information
• Tested in accordance with IEST-STD-CC1246E
• Made in the USA
• Size: 20" x 24"
• 100 Per Pack
• Custom Sizes Available
• Download the Spec Sheet
