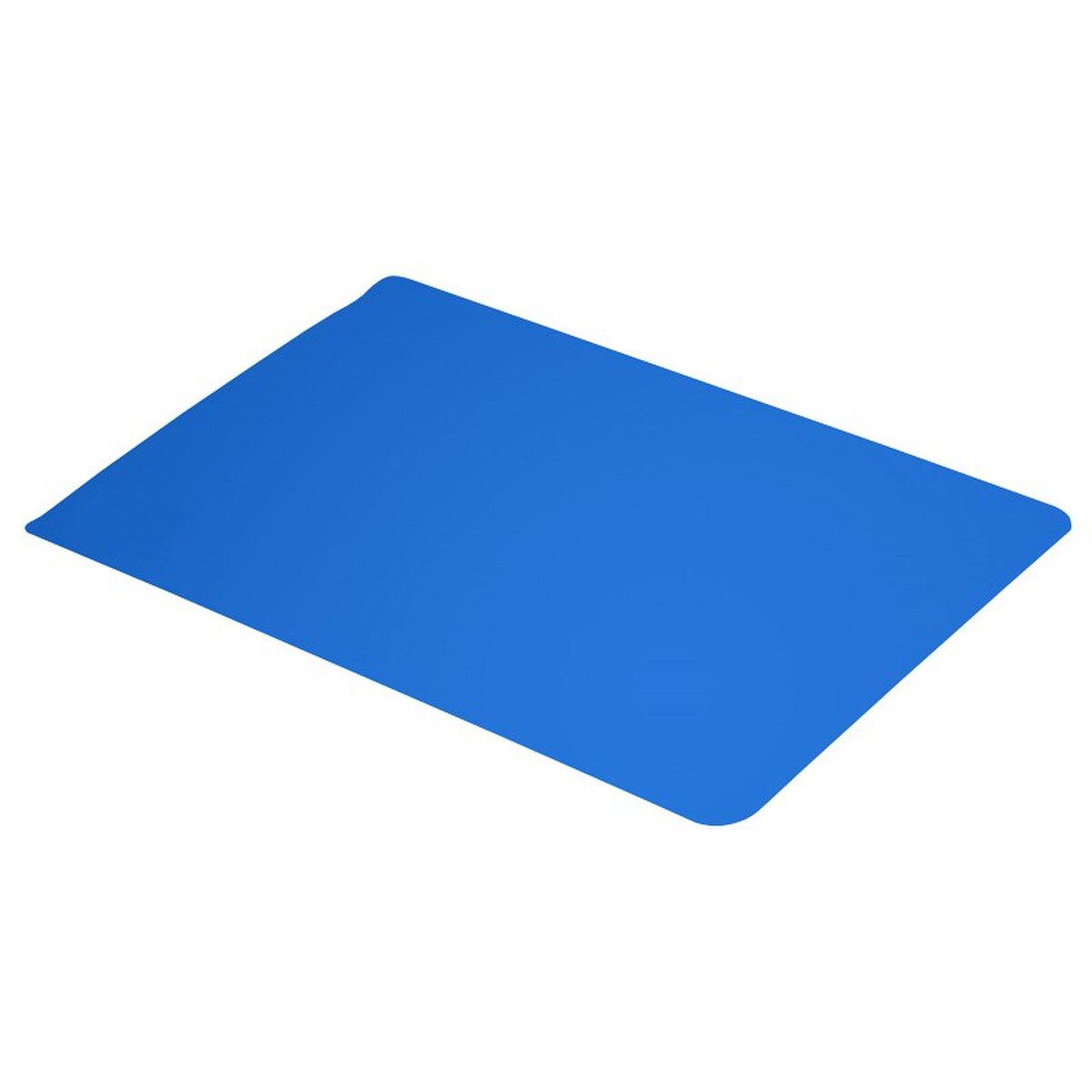

SCS 770203 R1 Dissipative 2-Layer Rubber Tray Liner, 16" x 24", Blue, Smooth Surface
Description
The SCS 770203 R1 ESD Tray Liner is a dissipative 2-Layer rubber mat that provides a worksurface that does not generate a static charge and will control the discharge rate from all conductors (including ESD susceptible items) that are placed on the surface. Resistant to solvents, hot solder and soldering irons make this mat a versatile static-safe worksurface.

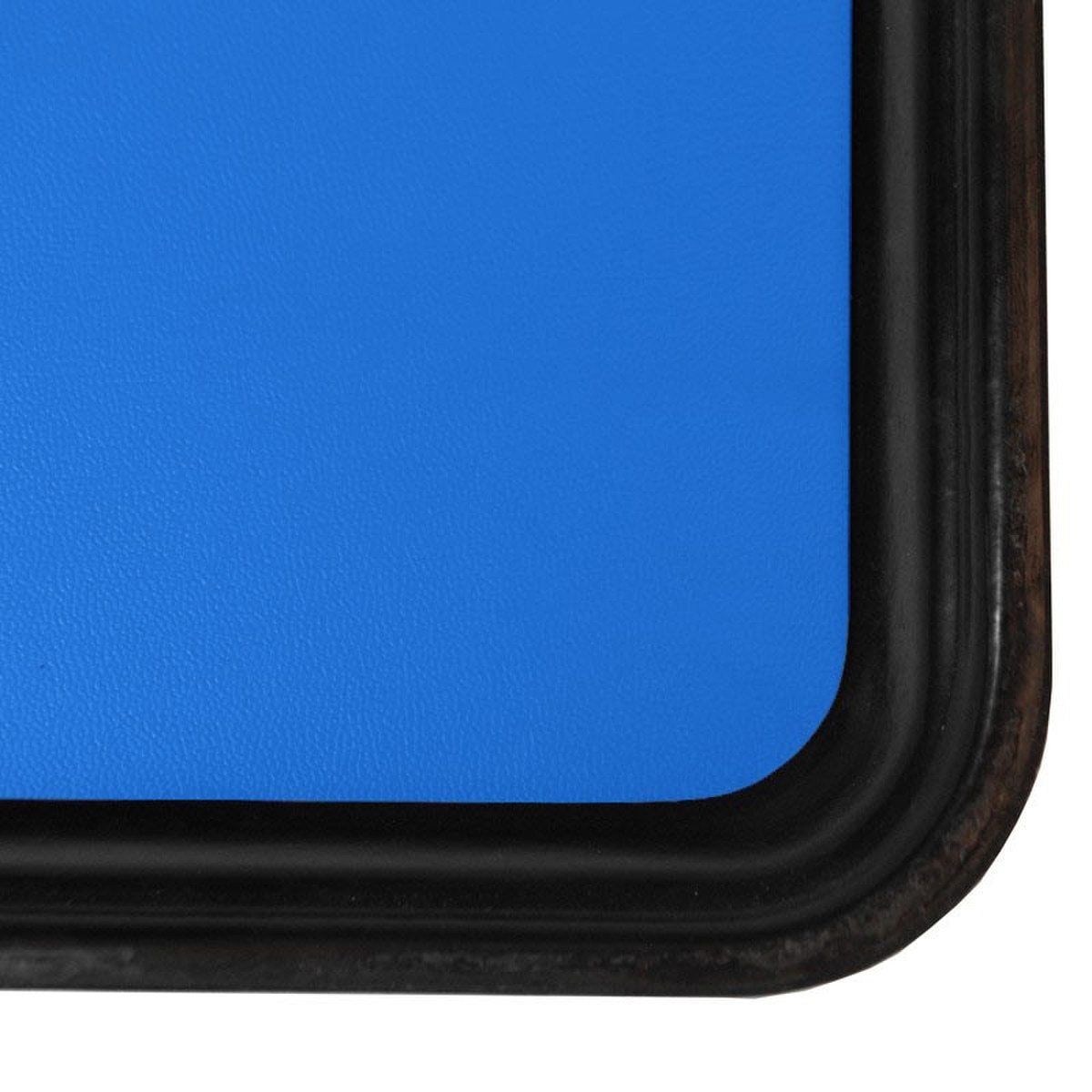

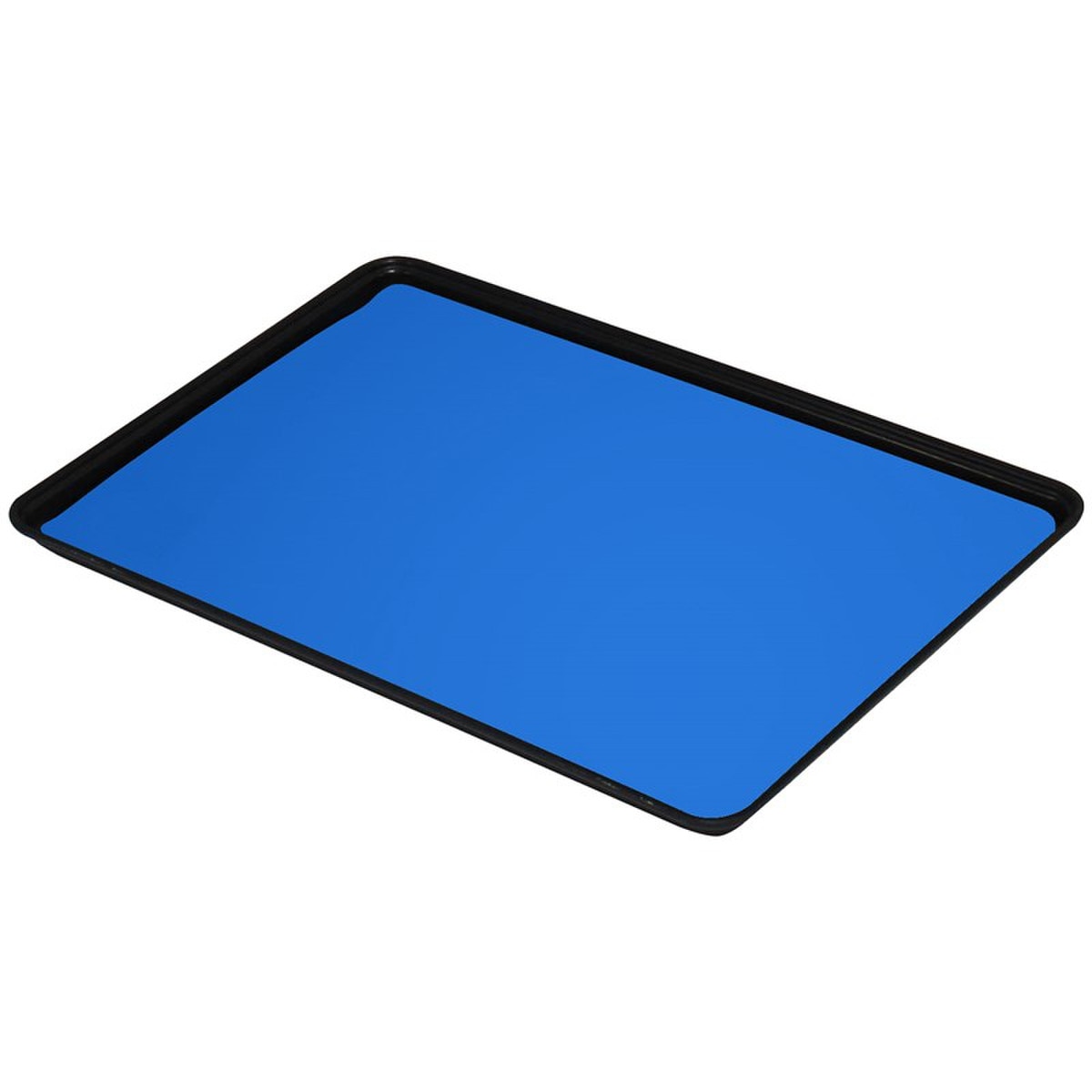

- Rounded corners to fit 16" x 24" ESD trays
- Keeps components, assemblies and ESD sensitive parts from sliding
- Constructed using a top color layer of static dissipative rubber laminated to a bottom black layer of conductive rubber
- Meets ANSI/ESD S20.20 worksurface required limit and recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items.
- Electricals will not drift for the life of the mat.
- Lead-free RoHS 2 and REACH compliant
- Color: Blue
- Size: 16" x 24"
- Thickness: .080"
- Smooth Surface
