SCS 770115 ESD Floor Mat Ground Cord, 15' Length, No Resistor
Description

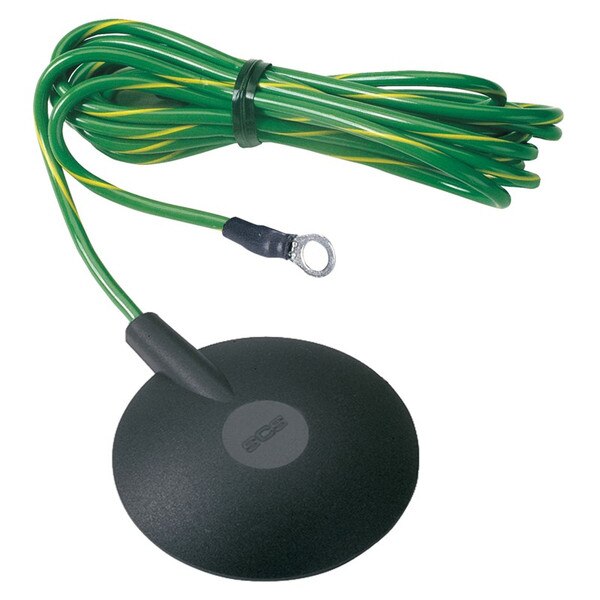

The SCS 770115 is a 15' ground cord for ESD floor mats.

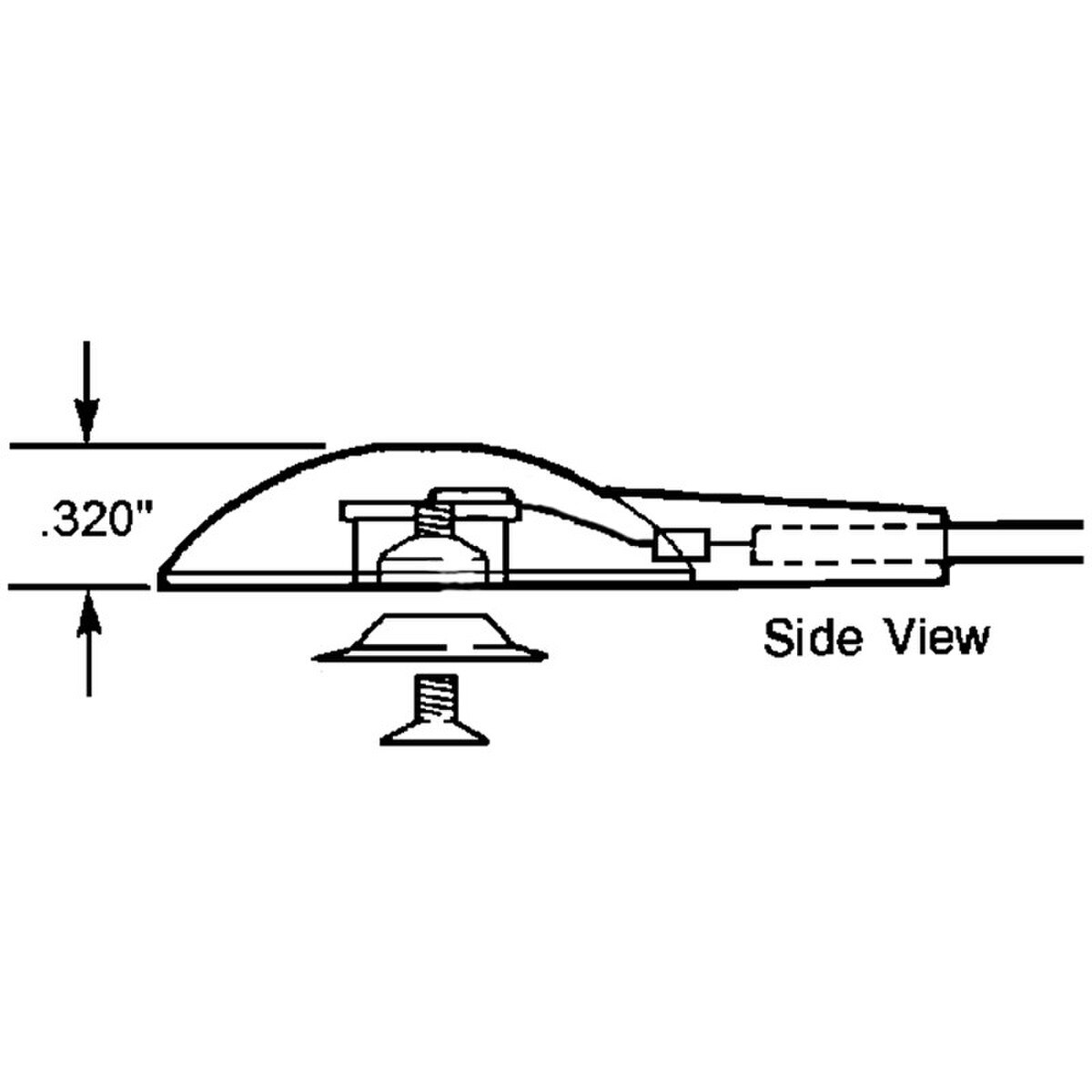

- Low profile ground cord reduces inadvertent snagging or tripping that may disconnect ground
- 10mm (0.395") snap stud easily snaps to 10mm mat socket, flush to mat surface

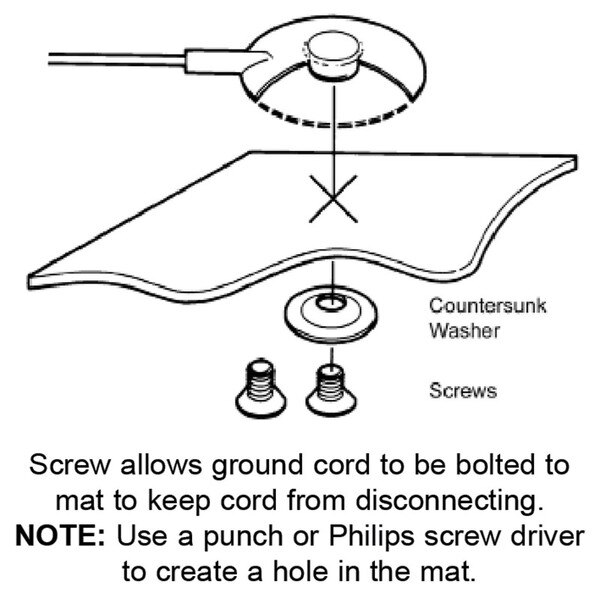

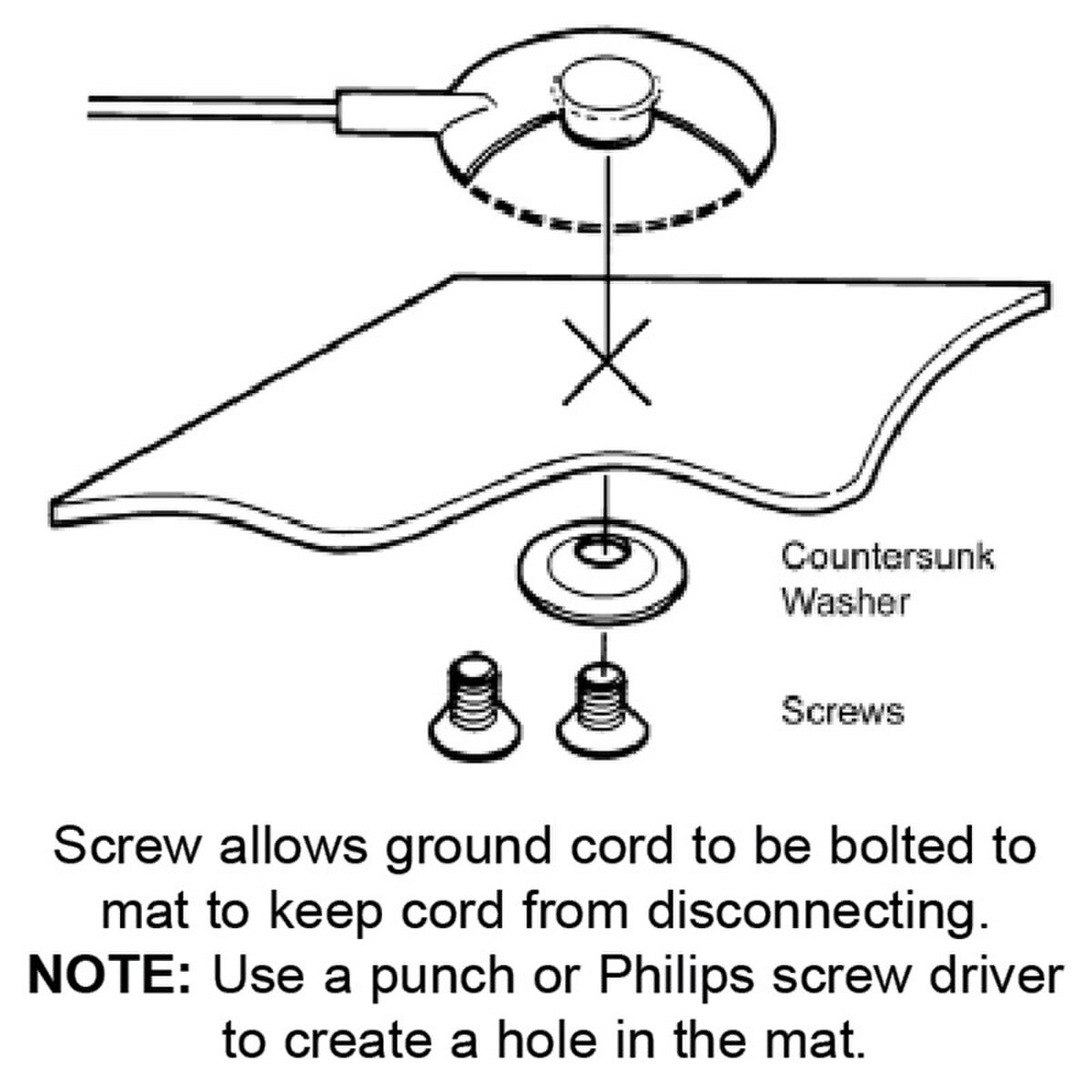

- Stud has threaded hole; 6-32x1/4" flat head screw and countersunk washer are provided which allows ground cord to be optionally bolted mat; keeps cord from disconnecting; ensures proper grounding
- Ring terminal at end of ground cord allows easy attachment to electrical ground
- Can be used with worksurface mat or floor mat
- PER ANSI/ESD S6.1, no resistor is recommended, but with resistor is acceptable
