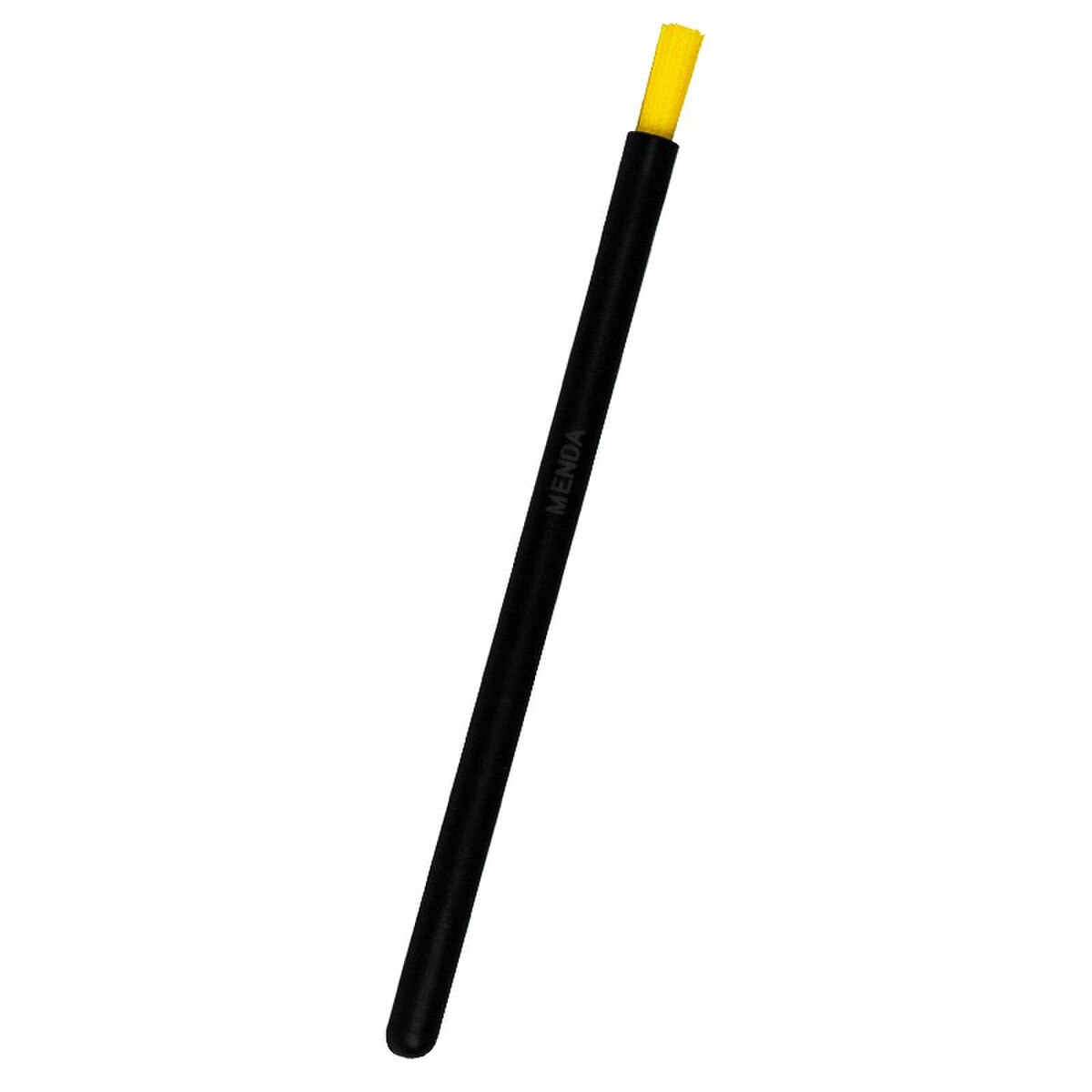

Menda 35697 Dissipative Nylon Brush, round Handle, 6" Length, 10/16" Bristles

The Menda 35697 ESD Brushes are ideal for removing dust, dirt and left over materials from printed circuit boards (PCB) and other static sensitive components. Brushes minimize static charge generation and remove electrostatic charges to ground when held by grounded personnel.

• Conductive carbon loaded polypropylene handle
• High-quality, permanently dissipative bristles made of type 6.12 Nylon filament -which will result in no coating or peeling of the static dissipative additive
• Dissipative fibers should be selected if the product or assembly may be holding a charge and Charged Device Model (CDM) failures are a concern
• Highly resilient, durable and abrasion resistant
• Hot stamped with ESD protective symbol
• Brushes can be used with IPA (isopropyl alcohol)
• Yellow bristles are highly identifiable to avoid FOD (Foreign Object Debris)
• RTT Resistance: 1 x 10⁹ to < 1 x 10¹¹ ohms tested per modified ANSI/ESD S4.1
• Bristle Hardness: Medium
• Overall Length 6", Overall Width ¼"
• Bristle Length 10/16", Bristle Width ¼", Bristle Height ¼"
