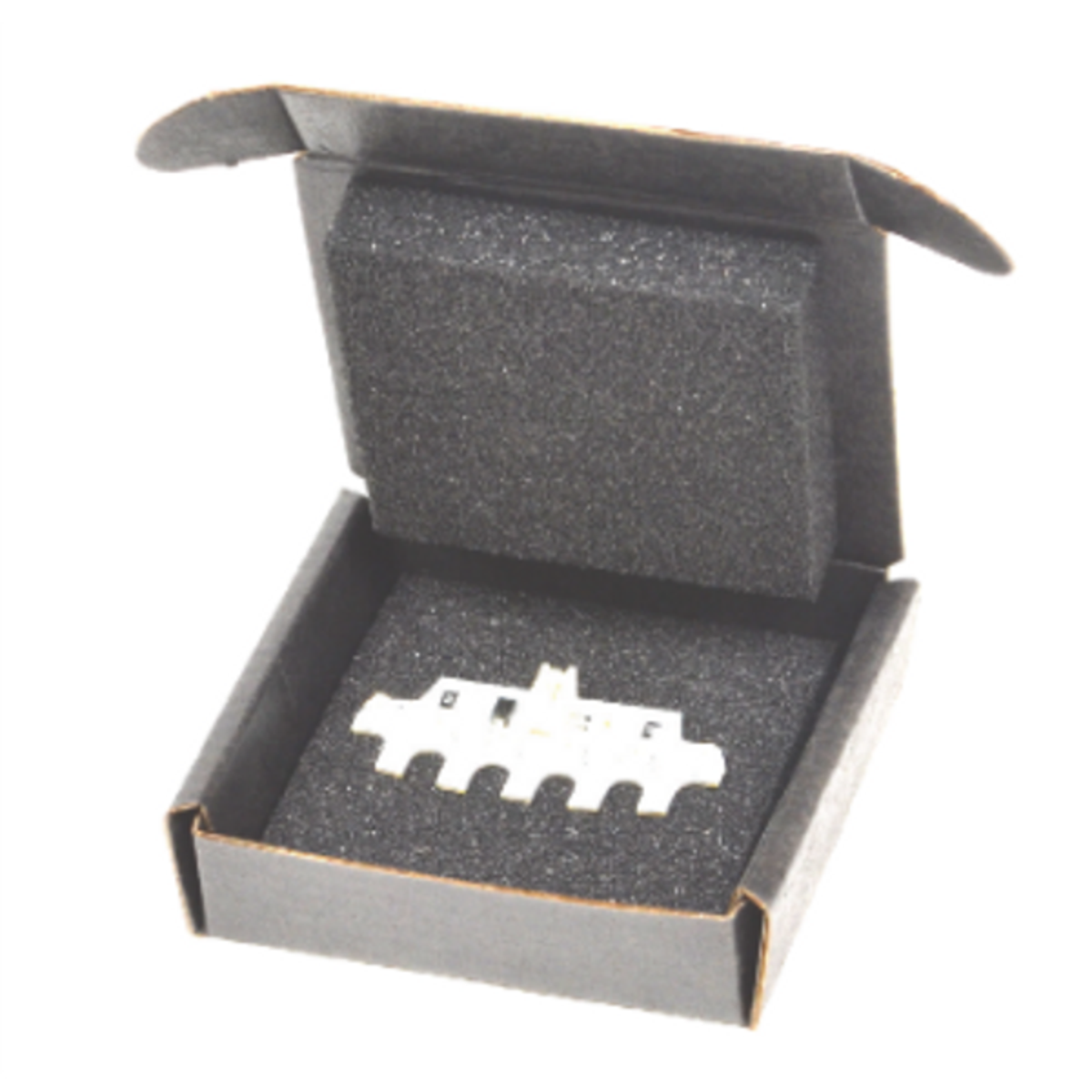

Corstat IC5050SS IC Shipper with Black Softstat Foam, Static Shielding, 7" x 3-1/2" x 1", 50/Case
Description
The Corstat™ IC5050SS Component Shippers offer a comprehensive solution for safeguarding small devices and ESD-sensitive assemblies. The integrated Faraday Cage protection ensures a controlled environment, shielding static-sensitive components from external static charges and providing a safe path to ground. These ESD boxes are designed with attention to detail, featuring black static-dissipative cushioning polyurethane foam laminated to the interior top and loose in the bottom. The soft black static-dissipative foam provides cushioning, and permanent ESD characteristics.
Key Product Features
- Provides physical and static shielding protection
- Static Dissipative polyurethane foam provides cushioning and permanent dissipative properties
- Eliminates the need for bags
- Excellent shipper for long term use
Specifications
- Inside Dimensions: 7" x 3-1/2" x 1"
- Style: Front Lock Mailer
- Construction: Corstat ‘E’ Flute Corrugated
- Packaging: Sold in cases of 50
- Custom Sizes & Printing Available - Please Inquire.
Corstat IC5050SS Technical Specifications
| Property | Value (U.S.) | Test Method |
|---|---|---|
| Color | Black | Visual |
| Buried Shielding-layer Ohms | 10e2-10e3 Ohms/sq | ANSI/ESD STM11.11-2022 |
| Outer Dissipative-layer Ohms | 10e4-10e5 Ohms/sq | ANSI/ESD STM11.11-2022 |
| Electrostatic Decay Rate | Avg. 0.01 sec | EIA-541 |
| ESD Shielding | Avg. 16.49nJ | Capacitive Probe Test |
| Reducible Sulphur | 0.000003 | TAPPI-406 |
Static Dissipative Soft Cushioning Foam Specifications
| Property | Value (U.S.) | Test Method |
|---|---|---|
| Color | Black | Visual |
| Volume Resistance | 10e4-10e10 Ohms/sq | ANSI/ESD STM11.12-2021 |
| Surface Resistance | 10e4-10e10 Ohms/sq | ANSI/ESD STM11.11-2022 |
| Static Decay Rate | 0.01 Sec | ASTM D-257 |
| Density | 1.7-1.9 lbs/ft3 | ASTM D-3574-01 |
| Indent Force Deflection @ 25% | 45-55 psi | ASTM D-3574-01 |
| Shelf Life | Long Term |
Ideal Use Cases
This IC Shipper is ideal for delicate components or small assemblies requiring cushioning protection and permanent ESD properties. It ensures that components are securely stored and remain undamaged during transportation.
Commitment to Quality
Correct Products is committed to delivering high-quality products that meet the stringent standards required by industries handling sensitive electronic components.
Ordering and Contact Information
For purchasing or to learn more about the IC5050SS IC Shipper customers are encouraged to contact Correct Products directly. The company offers expert consultation to provide tailored solutions that best fit the specific requirements of your ESD packaging needs.
For further details or to place an order contact Correct Products.
