Corstat IC5010 IC Shipper with ESD Foam, Static Shielding, 3-1/2" x 1-1/4" x 1", 100/Case
Description

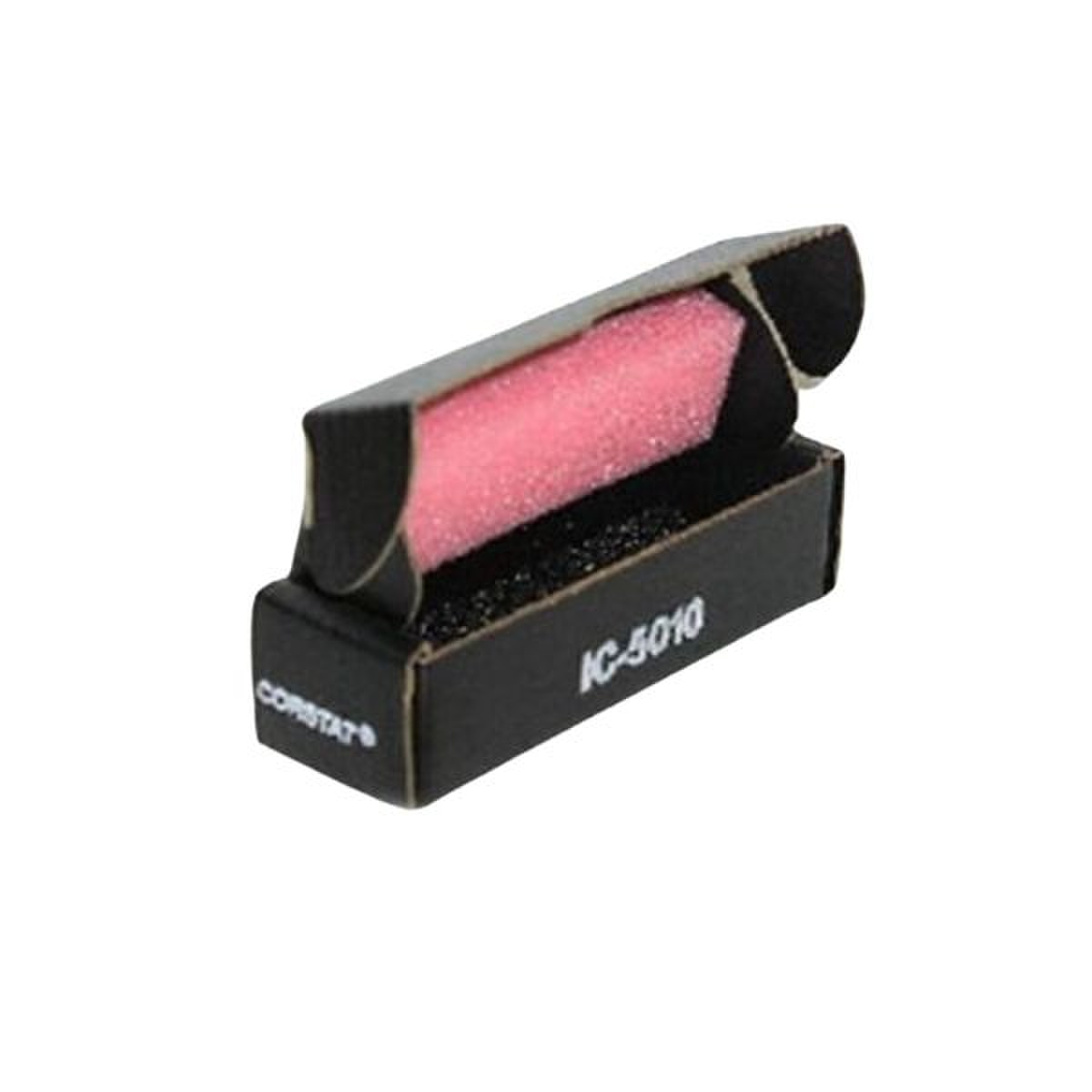

The Corstat™ IC5010 Component Shippers offer a comprehensive solution for safeguarding small devices and ESD-sensitive assemblies. The integrated Faraday Cage protection ensures a controlled environment, shielding static-sensitive components from external static charges and providing a safe path to ground. These ESD boxes are designed with attention to detail, featuring pink static-dissipative cushioning polyurethane foam laminated to the interior top and removable black conductive foam in the bottom. The crosslink foam base allows for secure lead insertion, ensuring components remain stable during transportation.
Key Product Features
- Provides physical and static shielding protection
- Ideal for through-hole components
- Eliminates the need for bags
- Excellent one way shipper/short term use
- Soft pink anti-static polyurethane foam laminated in lid
- Black high density pin insertion grade foam loose in bottom
Specifications
- Inside Dimensions: 3-1/2" x 1-1/4" x 1"
- Style: Front Lock Mailer
- Construction: Corstat ‘E’ Flute Corrugated
- Packaging: Sold in cases of 100
- Custom Sizes & Printing Available - Please Inquire.
Corstat IC5010 Technical Specifications
| Property | Value (U.S.) | Test Method |
|---|---|---|
| Color | Black | Visual |
| Buried Shielding-layer Ohms | 10e2-10e3 Ohms/sq | ANSI/ESD STM11.11-2022 |
| Outer Dissipative-layer Ohms | 10e4-10e5 Ohms/sq | ANSI/ESD STM11.11-2022 |
| Electrostatic Decay Rate | Avg. 0.01 sec | EIA-541 |
| ESD Shielding | Avg. 16.49nJ | Capacitive Probe Test |
| Reducible Sulphur | 0.000003 | TAPPI-406 |
Conductive Crosslink Foam Specifications
| Property | Value (U.S.) | Test Method |
|---|---|---|
| Volume Resistance | 10e3-10e5 Ohms/sq | ANSI/ESD STM11.12-2021 |
| Surface Resistance | 1.99 lbs/ft3 | BS EN ISO 7214:2012 |
| Apparent Density | 10e4-10e5 Ohms/sq | ANSI/ESD STM11.11-2022 |
| Max Operating Temp* | 212 °F | Internal |
Antistatic Polyurethane Foam Specifications
| Property | Value (U.S.) | Test Method |
|---|---|---|
| Color | Pink | Visual |
| Volume Resistance | 10e5-10e11 Ohms/sq | ANSI/ESD STM11.12-2021 |
| Surface Resistance | 10e5-10e11 Ohms/sq | ANSI/ESD STM11.11-2022 |
| Static Decay Rate | < 2 Sec | FTMS 101-C:4046 |
| Density | 1.15-1.35 lbs/ft3 | ASTM D-3574-01 |
| Indent Force Deflection @ 25% | 33-39 psi | ASTM D-3574-01 |
| Shelf Life | Limited |
Ideal Use Cases
This IC Shipper is ideal for through-hole technology components or small assemblies with robust leads. It ensures that components are securely stored and remain undamaged during transportation.
Commitment to Quality
Correct Products is committed to delivering high-quality products that meet the stringent standards required by industries handling sensitive electronic components.
Ordering and Contact Information
For purchasing or to learn more about the IC5010 IC Shipper customers are encouraged to contact Correct Products directly. The company offers expert consultation to provide tailored solutions that best fit the specific requirements of your ESD packaging needs.
For further details or to place an order contact Correct Products.
