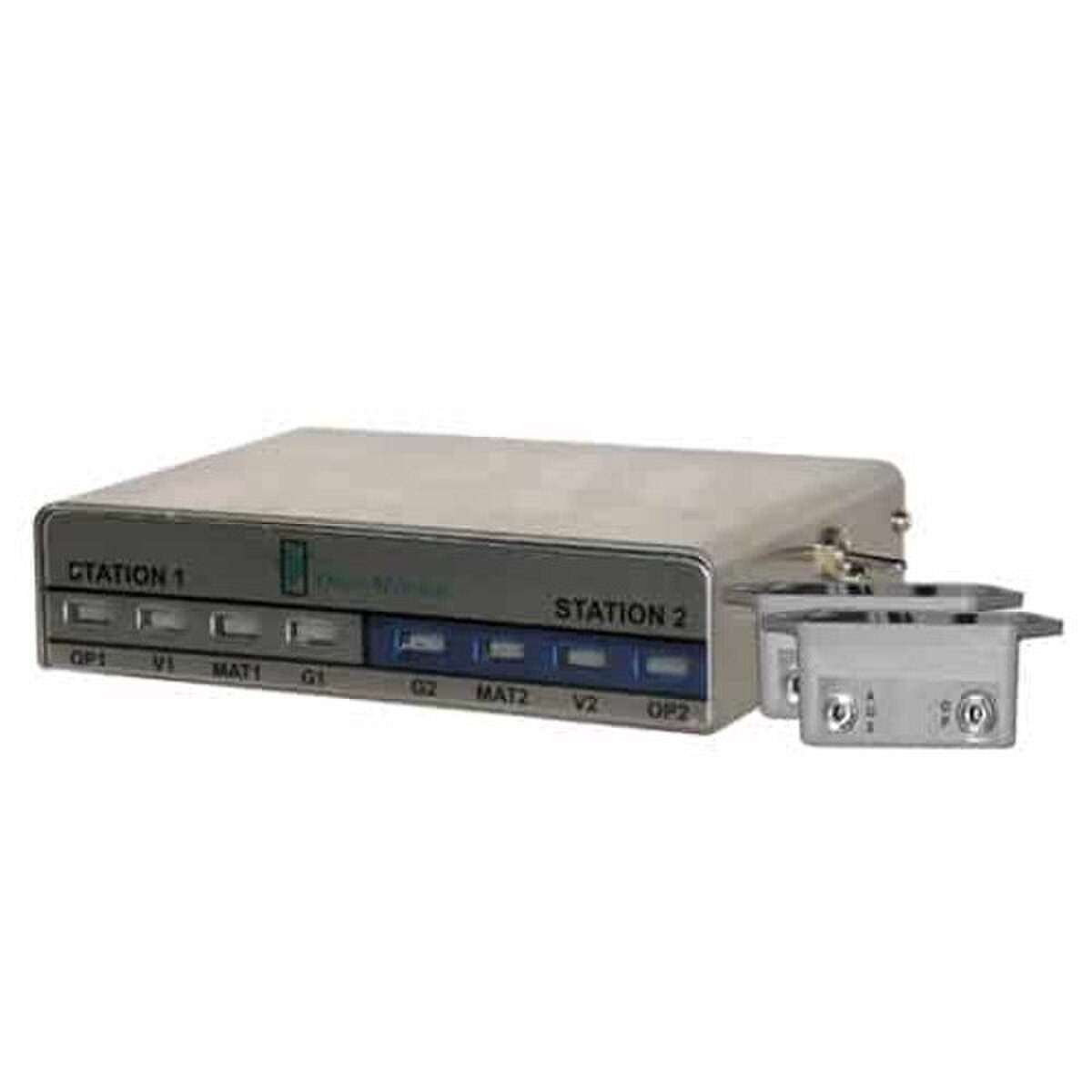

Transforming Technologies RangerNET CM2815 Dual Conductor Resistance Monitor, Two Operators and Two Mats, Network Ready

Transforming Technologies' RangerNET constant monitor is the premiere work station grounding system available. A continuous pulse of an ultra-low voltage signal measures the electrical resistance of two wrist bands, two work surfaces, and two auxiliary grounds simultaneously and alarms is there is a problem.

The RangerNET is an extremely sensitive and reliable ground monitoring instrument. Audible and visible alarms are triggered if the operator's resistance exceeds 35 megohm (factory default). Low resistance can also triggers an alarm event. Mat alarm limits are set at 100 meg ohm. The CM2815 packaged in a stainless steel case with remote jacks.

The RangerNET saves time by eliminating the time consuming testing of grounding products. The system uses special dual wire wrist band sets that contain two independent elements which provide fail-safe protection. The series includes both fabric and metal wrist bands paired with cords in either 5, 10 or 20 feet lengths.

The RangerNET can be integrated into a network with the Boss-See software for status monitoring and data collection. Meets or exceeds requirements of ANSI ESD-S20.20 and ESDA Standard 1.1-2006

RangerNET kit includes two wrist strap remote jacks and ground cables for two mats.

Features:

• Monitors Two Wrist Straps, Two Work Surfaces and Operator Voltage
• Accurate Dual Conductor Resistance Monitoring Technology
• Ultra-Low Voltage Signal
• Conductive ESD-Safe Case
• Audible and Visual Alarms
• Network Ready
• Download the Spec Sheet
• Download the Owners Manual



Applications:

ESD constant monitors reduce production costs by eliminating the time spent on testing wrist straps. Further savings may be realized by reduced ESD damage from broken wrist straps and work surface failures. Resistance based monitors are the most accurate technology available.
