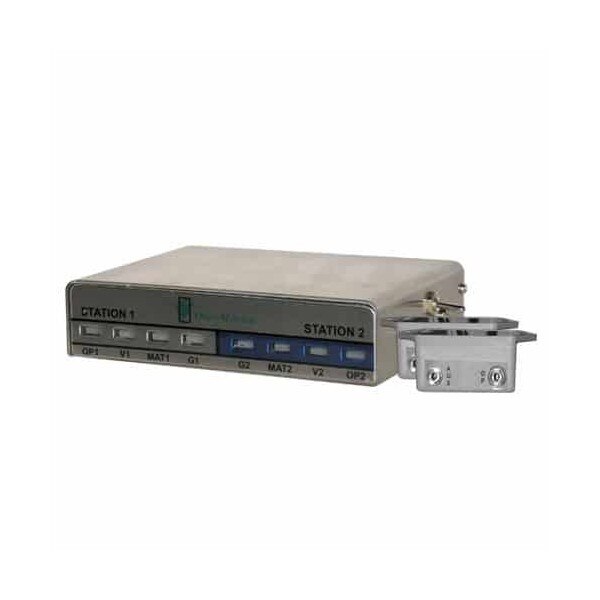

Transforming Technologies RangerBOSS CM2800 Dual Conductor Resistance Monitor, Two Operators, Two Mats & Operator Voltage, Network Ready
Description

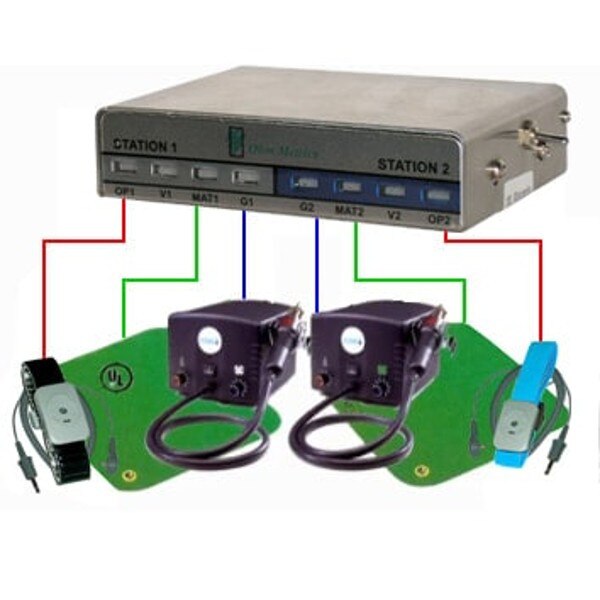

Transforming Technologies' RangerBOSS constant monitor is the premiere work station grounding system available. A continuous pulse of an ultra-low voltage signal measures the electrical resistance of two wrist bands, two work surfaces, two grounded tools and operator voltage simultaneously and alarms is there is a problem.
The CM2800's alarm settings can be reconfigured quickly and easily with the PC software CM2800-SEE. Operator Resistance Operator Voltage, work-surface Resistance, Operator Presence Check (OPC) and Resistance of Equipment alarms can be enabled/disabled and limits selectable to user specifications.
The CM2800 is network ready and can easily be connected to other workstation monitors and a computer using the high speed network router, CM2800-H. The host computer is transformed into a command center with the software CM2800-BOSS SEE, a central monitoring program that shows real time grounding results and allows for adjustment of alarm parameters of up to 4096 workstations. An entire assembly line's ESD protection can be remotely monitored and adjusted with one computer.
RangerBOSS kit includes two wrist strap remote jacks with cables, ground cords for two mats, ground cable for monitor and power supply.
Features:
- Monitors Two Wrist Straps, Two Work Surfaces and Operator Voltage
- Create Network of up to 4096 Monitors and Monitor at a Central Computer
- Programmable Alarm Thresholds
- Accurate Dual Conductor Resistance Monitoring Technology
- Ultra-Low Voltage Signal
- Audible and Visual Alarms
- Meets or exceeds requirements of ANSI ESD-S20.20 and ESDA Standard 1.1-2006
- Download the Spec Sheet
- Download the Owners Manual
Applications:
ESD constant monitors reduce production costs by eliminating the time spent on testing wrist straps. Further savings may be realized by reduced ESD damage from broken wrist straps and work surface failures. Resistance based monitors are the most accurate technology available.
