Biofit Embark Bench Height Chair, Medium Seat, Adjustable Arms
Description

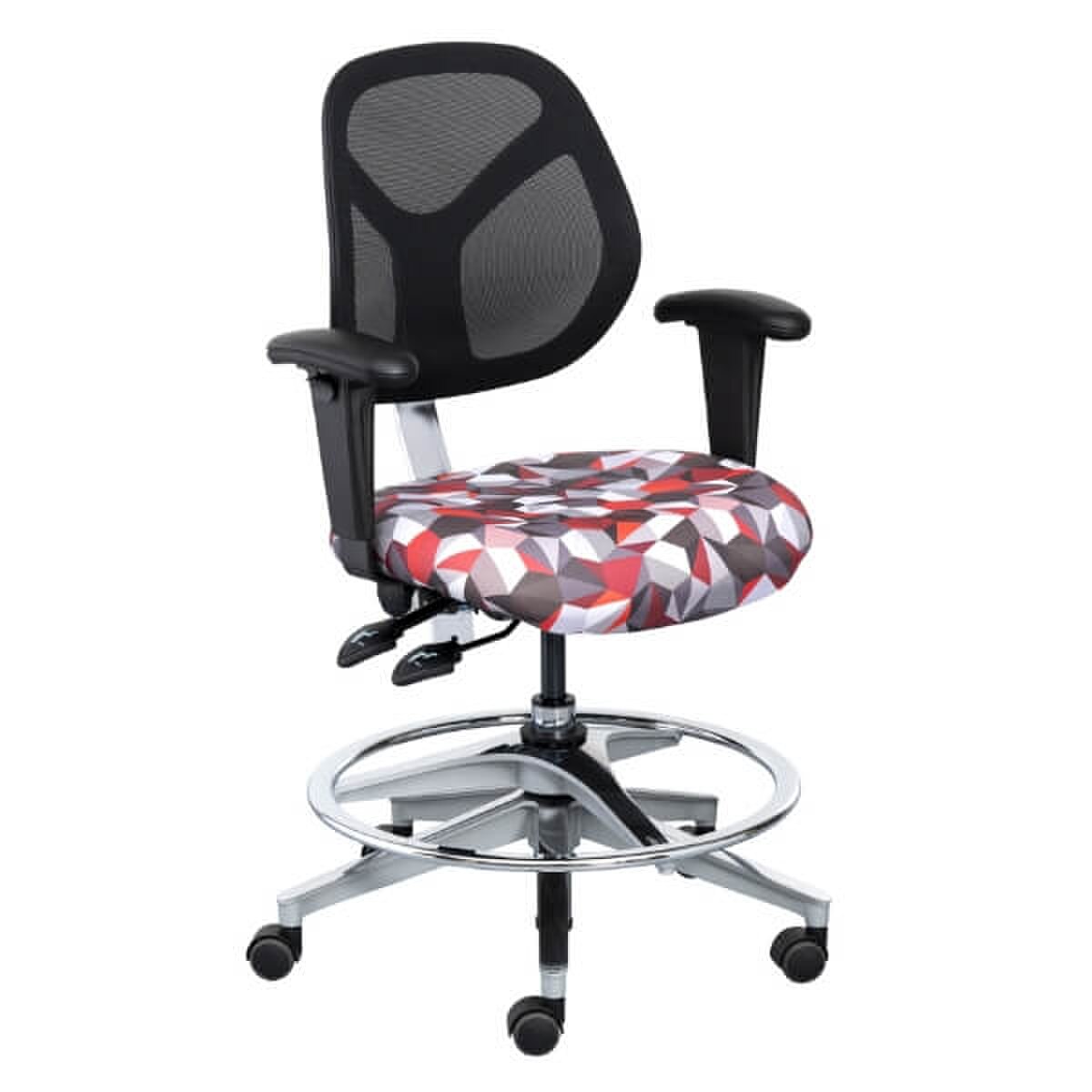

This bench-height Embark Series chair features a mid-sized adjustable seat upholstered in impactful Grade 2 polygon-patterned black and red vinyl, height-adjustable arms, a breathable back engineered for all-day comfort, an adjustable footring and a polished aluminum base. It's designed for use at benches 31” to 38” high in a variety of industrial workspaces, as well as task and healthcare applications.
This Embark model features a concave upholstered seat with internal seat board bumperguard measuring 18.5" wide x 16.5" deep x 3" thick and a woven black mesh backrest with recycled nylon frame measuring 16.375" wide x 16" high. Control allows function of the seat height activation and backrest adjustments by means of easily engaged levers which can be activated from the seated position. Seat tilt is fixed at 3.5° rearward while the backrest adjusts 8° forward and 13° rearward. It includes a five-legged composite base with caster-to-caster diameter of 25.6" and maximum width of 24.4". T-cross-section legs ensure cleanability and endure test loads of 1.5-2x BIFMA strength requirements. Features standard 50mm, steel-reinforced, tapered hub (1° 26' 16" (Morse) taper) with gauge line elevation of 113mm from the caster insert plane. The base is cast out of glass-filled nylon. Includes adjustable arms and dual-wheel casters that resist movement when the chair is unoccupied.
Upholstered in Grade 2 black vinyl. Metal parts are black powder coat.
Meets CAL 117 fire retardant standards. LEED® compliant.
Backed by a 13-year warranty with lifetime warranty on pneumatics.
Technical Specifications
This Embark model features a concave upholstered seat with internal seat board bumperguard measuring 18.5" wide x 16.5" deep x 3" thick and a woven black mesh backrest with recycled nylon frame measuring 16.375" wide x 16" high. Control allows function of the seat height activation and backrest adjustments by means of easily engaged levers which can be activated from the seated position. Seat tilt is fixed at 3.5° rearward while the backrest adjusts 8° forward and 13° rearward. It includes a five-legged composite base with caster-to-caster diameter of 25.6" and maximum width of 24.4". T-cross-section legs ensure cleanability and endure test loads of 1.5-2x BIFMA strength requirements. Features standard 50mm, steel-reinforced, tapered hub (1° 26' 16" (Morse) taper) with gauge line elevation of 113mm from the caster insert plane. The base is cast out of glass-filled nylon. Includes adjustable arms and dual-wheel casters that resist movement when the chair is unoccupied.
Upholstered in Grade 2 black vinyl. Metal parts are black powder coat.
Meets CAL 117 fire retardant standards. LEED® compliant.
Backed by a 13-year warranty with lifetime warranty on pneumatics.
Technical Specifications
| Height Compatibility | Standard Bench |
| Seat Covering Type | Upholstered |
| Seating Surface | Vinyl |
| Seat Size | Medium |
| Back Size | Medium |
| Base | Aluminum Base |
| Finish Color | Chrome |
| Shipping Availability | Standard |
| Shipping Weight | 40 |
| Product Dimensions | 26 x 26 x 40 |
| Weight Capacity (lbs) | 300 |
| Seat-Height Adjustable Range | 19-26 |
| Upholstery Type & Color | Grade 2 Polygon Vinyl POL16 |
| Seat Description | Ergonomic upholstered seat with four-way contouring and internal seat board bumperguard; measures 18.5" wide x 17" deep x 3" thick. |
| Back Description | Breathable, flexible, woven black mesh backrest with recycled nylon frame; measures 16.375" wide x 16" high. |
| Control Description | Control allows function of the seat height activation and backrest adjustments by means of easily engaged levers which can be activated from the seated position. Seat tilt is fixed at 3.5° rearward while the backrest adjusts 8° forward and 13° rearward. |
| Base Description | Five-legged, solid cast aluminum base with caster-to-caster diameter of 25.6" and maximum width of 24.4". T-cross-section legs ensure cleanability, and endure test loads of 1.5-2x BIFMA strength requirements. Features standard 50mm tapered hub (1° 26' 16" (Morse) taper) with gauge line elevation of 113mm from the caster insert plane. The base is cast out of UNI EN 46100 aluminum with a robotically polished top surface to ensure quality and consistency. |
| Caster Glide Description | Two inches in height, with dual soft-wheels. Casters resist movement when the seat is unoccupied. Plastic collar around caster stem to match base. Standard casters have grey tread. |
| Arms Description | Height-adjustable armrests with black self-skinned urethane pads. |
| Recommended User Height | 31-38 |
| Seat Width (in) | 18.5 |
| Seat Depth (in) | 17 |
| Seat Cushion Thickness (in) | 3 |
| Back Width (in) | 16.375 |
| Back Height (in) | 16 |
| Fire Retardancy Standards | CAL117 |
| Footring Diameter (in) | 22 |
