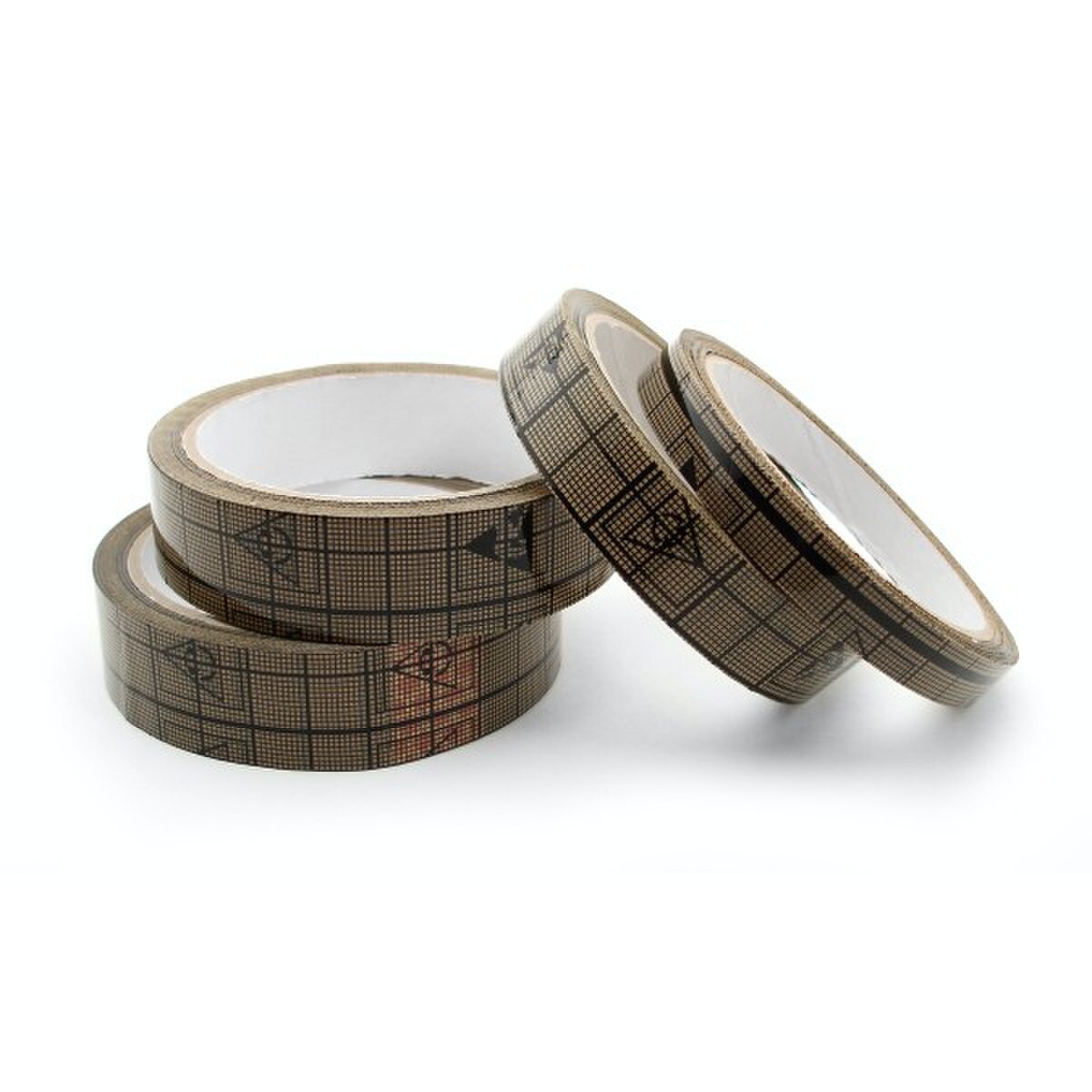

Botron B1620 Conductive Grid Tape, 2" x 118'

This Conductive Grid Tape from Botron is designed to combat electromagnetic interference (EMI). This tape is anti-static, non-smudging and features a acrylic based adhesive. A thin conductive grid layer is sandwiched between two layers, an outermost low charging clear cellophane and specially formulated low charging adhesive.

• ESD Symbols provide ESD awareness
• Material: 3-Layer Copolymer
• 3" Core
• Length: 118'
• Thickness: 1.9-2 Mil
• Surface Resistance: Copolymer Layer <10e12, Adhesive Layer <10e9, Grid Layer <10e5 @ 50%RH
• Static Generation: < 0-50 volts @ 50%RH
• Adhesion: 66 oz/in
• Tensile Strength: 270 N/mm sq.
• Elongation: 160%
• Meets ANSI/ESD S541
