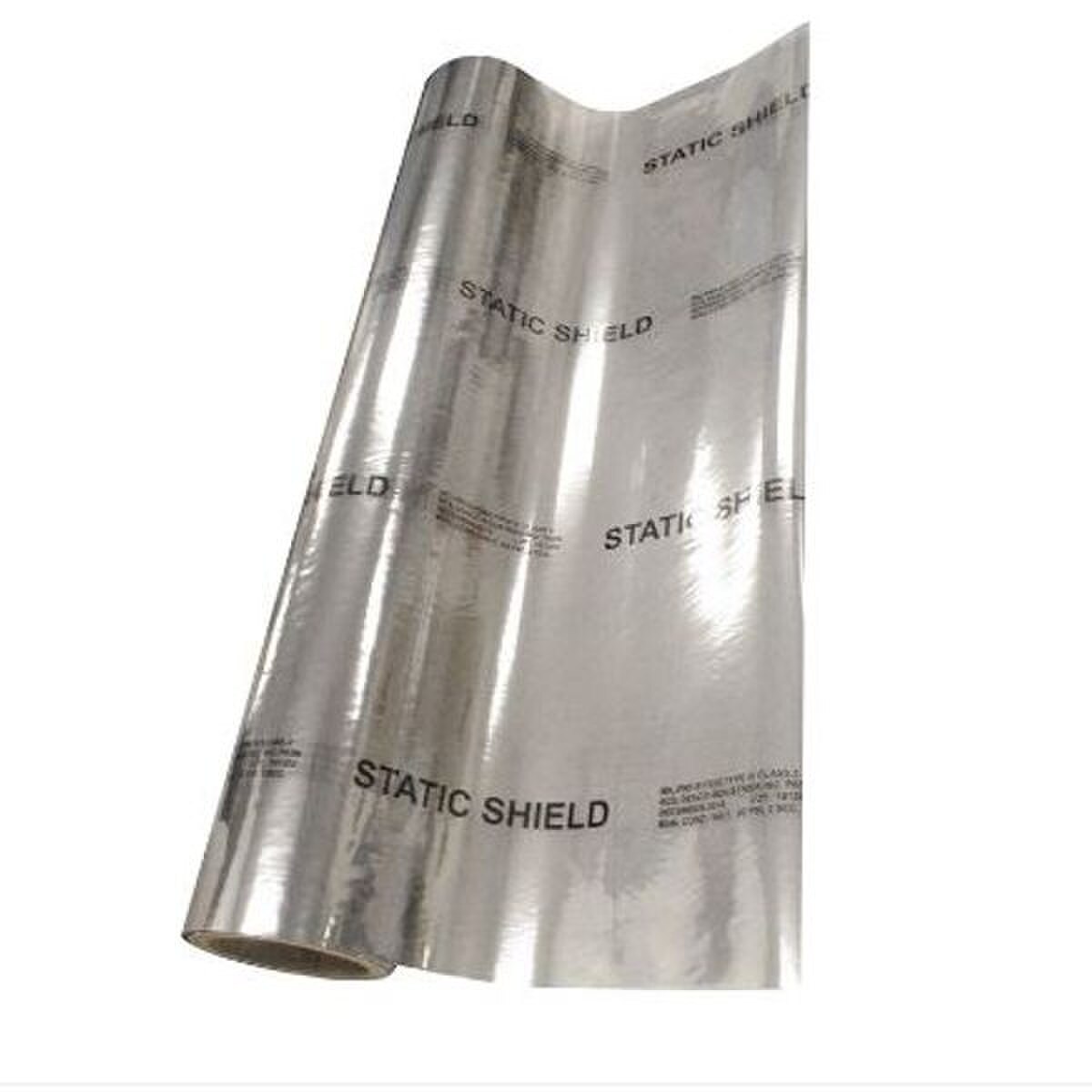

MIL-PRF-81705E Type III, Class II Roll Stock, Static Shielding, 36" x 50'

(0)No Reviews yet
$175.84
SKU: 817R 36X50

Description

Static Shielding Roll Stock, meets military standard MIL-PRF-81705E Type III, Class II.  This film features a four layer construction consisting of a static dissipative coating, polyester, metal and polyethylene laminate. The polyester dielectric in concert with the metal layer provides discharge shielding. The exterior is static dissipative and allows electrostatic charges to be removed when grounded.

  • Dissipative Inner Surface Rs >/= 1 x 10e5 to < 1 x 10e12 ohms/sq per MIL-PRF-81705E Method 4.6.8 requirements
  • Dissipative Outer Surfaces Rs < 1 x 10e12 ohms/sq per MIL-PRF-81705E Method 4.6.8 requirements
  • <10 nJ discharge shielding energy limit test per MIL-PRF-81705E Method 4.6.9
