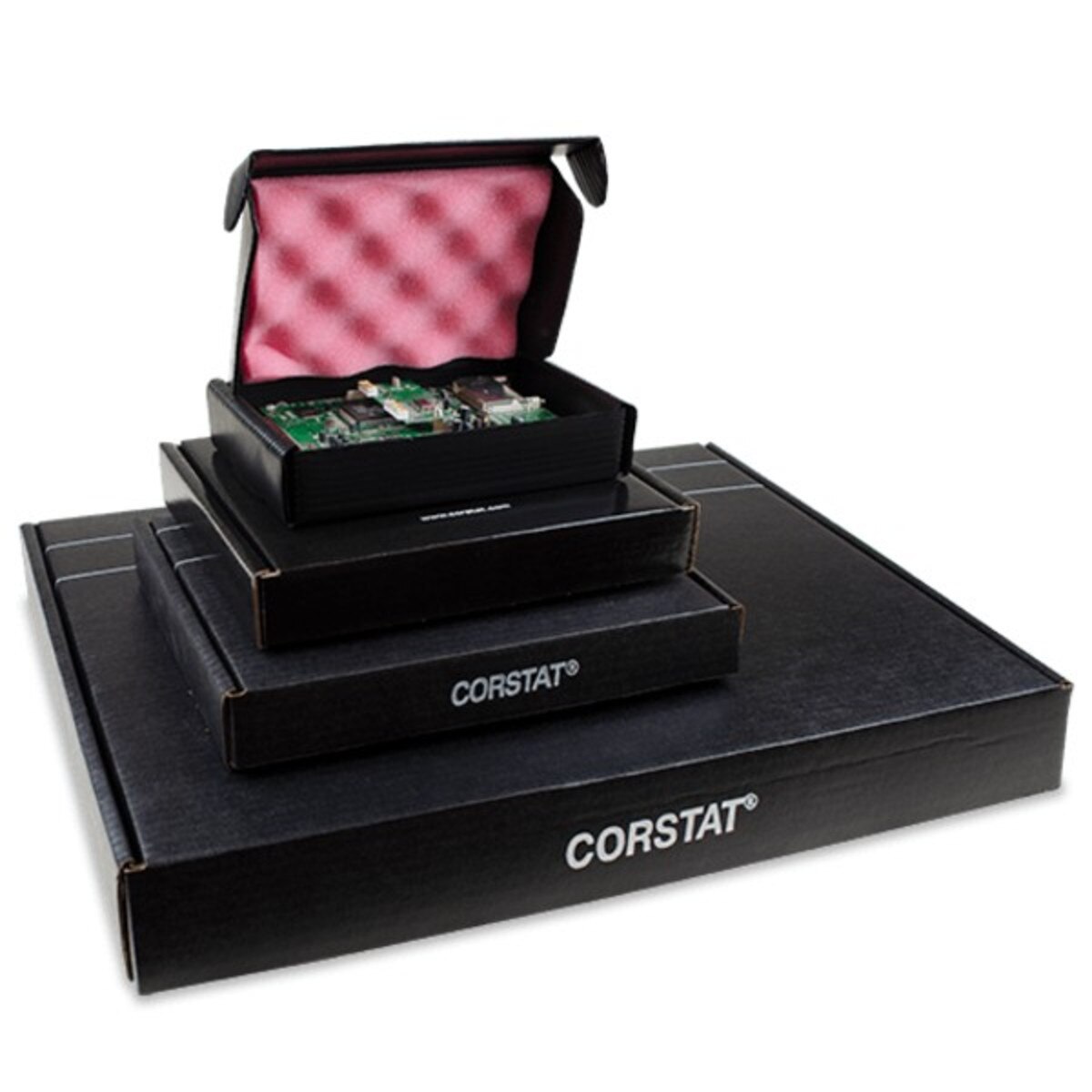

Corstat 3190-4 Conductive Circuit Board Shipping Box w/ Anti-Static Foam, 9" x 7-1/2" x 2-1/2", 24/Case
Description
The 3190-4 CorRec-Pak Conductive Shipping Boxes are acceptable at static safe workstations, allowing the package to comply with your ESD program guidelines. These anti-static foam shippers provide ESD and physical protection for static sensitive circuit boards and components. Regular Kraft cardboard can be insulative and generate damaging static charges. These conductive shipping boxes are made from 200 Lb "B" flute Corstat conductive corrugated cardboard and anti-static convoluted urethane foam.
Key Product Features
- Provides physical and static shielding protection
- Top Pink Anti-Static Foam Laminated, bottom pink anti-static foam loose
- Ideal for circuit boards, electronic components and assemblies
- Cost and labor savings vs bags
- Groundable at ESD Workstation
- Corstat Static Shielding
- ANSI/ESD S20.20 & ANSI/ESD-S541 Compliant
- PLEASE ORDER IN CASE QUANTITIES
Specifications
- Inside Dimensions: 9" x 7-1/2" x 2-1/2"
- Style: Front Lock Mailer
- Construction: Corstat ‘B’ Flute Conductive Corrugated
- Packaging: Sold in cases of 24
- Custom Sizes & Printing Available - Please Inquire.
Corstat 3190-4 Conductive Corrugated Technical Specifications
| Property | Value (U.S.) | Test Method |
|---|---|---|
| Color | Black | Visual |
| Buried Shielding-layer Ohms | 10e2-10e4 Ohms/sq | ANSI/ESD STM11.11-2022 |
| Outer Dissipative-layer Ohms | 10e3-10e5 Ohms/sq | ANSI/ESD STM11.11-2022 |
| Electrostatic Decay Rate | Avg. 0.01 sec | EIA-541 |
| ESD Shielding | Avg. 16.49nJ | Capacitive Probe Test |
| Triboelectric Charge Generation | Low | |
| Reducible Sulphur | 0.00035% | TAPPI-406 |
| Amines | None | |
| Galvanic Reaction | Non | |
| Cracking (Flexed 10x at 180) | Passed | Internal |
| Rub Resistance | Excellent | |
| Shelf Life | 10 Years | |
| Printability | Excellent | |
| Humidity Dependence | No effect on electrical properties |
Pink Anti-Static Convoluted Foam Specifications
| Property | Value (U.S.) | Test Method |
|---|---|---|
| Color | Pink | Visual |
| Volume Resistance | 10e5-10e11 Ohms/sq | ANSI/ESD STM11.12-2021 |
| Surface Resistance | 10e5-10e11 Ohms/sq | ANSI/ESD STM11.11-2022 |
| Static Decay Rate | < 2 Sec | FTMS 101-C: 4046 |
| Density | 1.15-1.35 lbs/ft3 | ASTM D-3574-01 |
| Indent Force Deflection | 33-39 psi | ASTM D-3574-01 |
| Shelf Life | Limited |
Ideal Use Cases

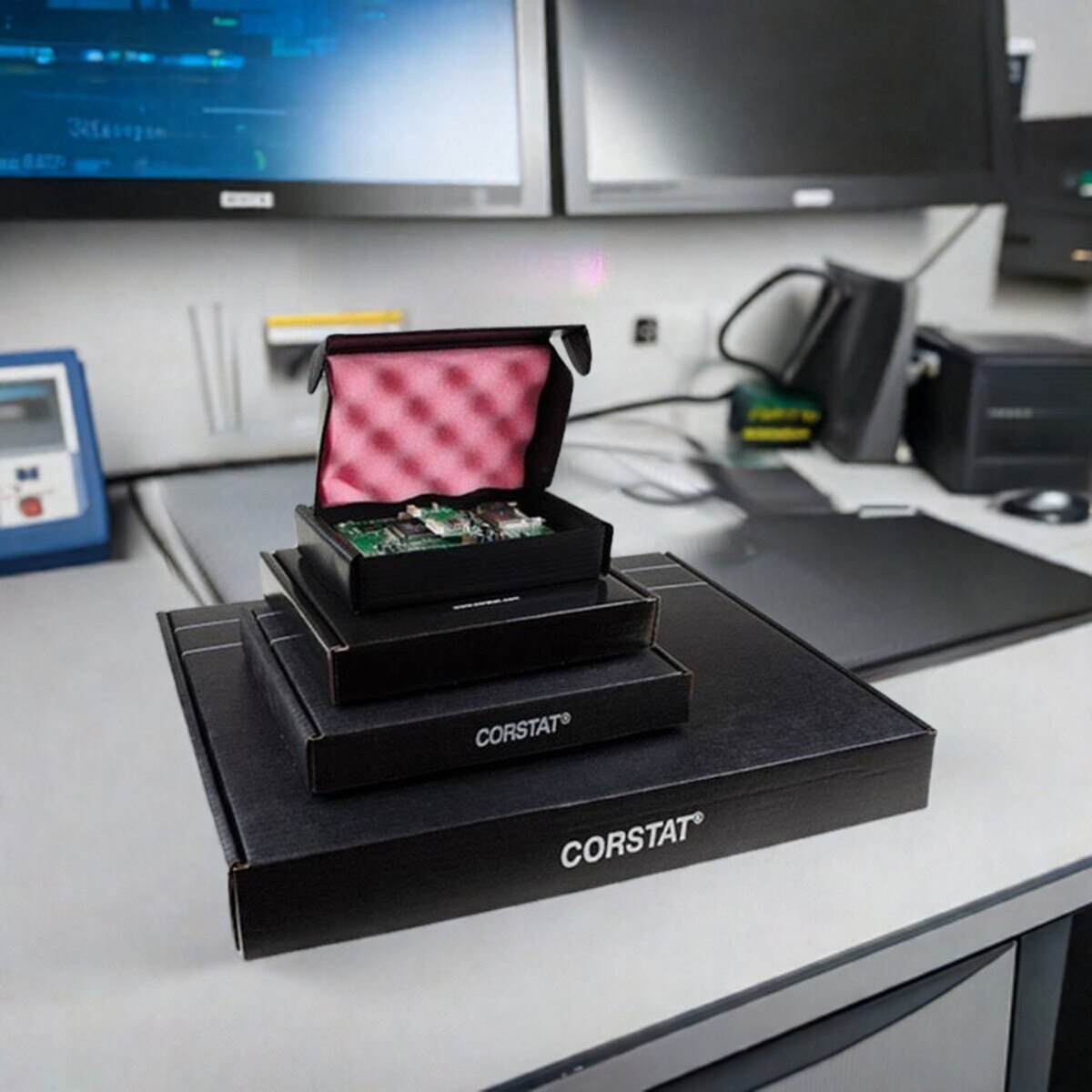

The 3190-4 ESD Safe Circuit Board Shipping Box is ideal for circuit boards, electronic components and assemblies. It ensures that components are securely stored and remain undamaged during transportation.
Commitment to Quality
Correct Products is committed to delivering high-quality products that meet the stringent standards required by industries handling sensitive electronic components.
Ordering and Contact Information
For purchasing or to learn more about the 3190-4 Corstat ESD Circuit Board Shipper customers are encouraged to contact Correct Products directly. The company offers expert consultation to provide tailored solutions that best fit the specific requirements of your ESD packaging needs.
For further details or to place an order contact Correct Products.
Shipping Made Easy
Choose the delivery method that works best for you. You can even ship using your own UPS or FedEx account number for complete control over your logistics.
Conductive Corrugated ESD Shipping Boxes Bulk Orders Welcome
Need large quantities? No problem. We offer competitive pricing and fast turnaround times on bulk and high-volume orders.
Custom Options Available for Conductive Corrugated ESD Shipping Boxes
Can’t find the exact size, material, or configuration you need? Our team can create custom packaging solutions tailored to your product and application.
