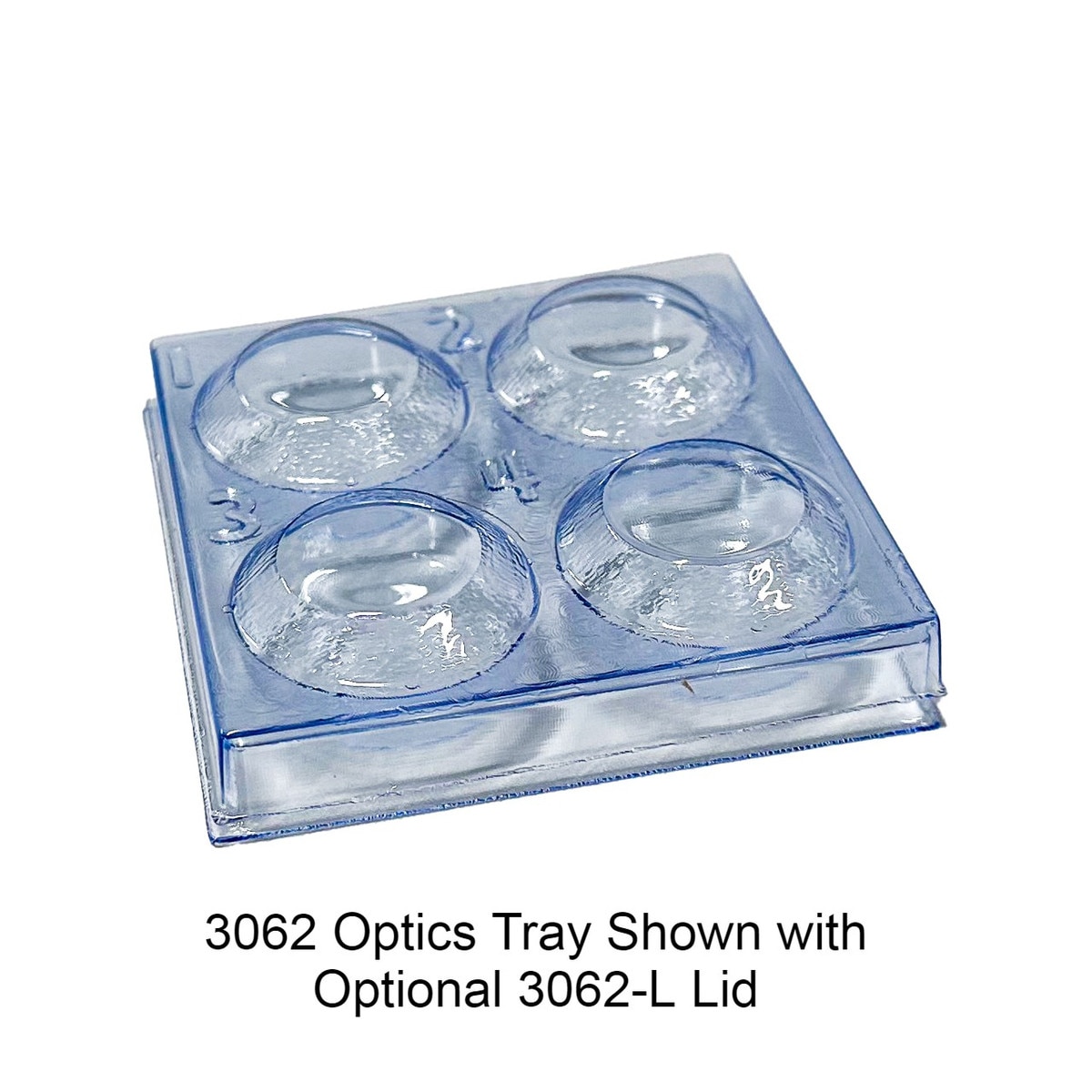

3062 Optics Packaging Tray, Round 4 Cavities, 2.56" x 2.56", Cavity Size 25.4mm (1") Diameter, 100/Case
Description
The 3062 Optics Packaging Tray is meticulously designed to provide secure and protective housing for sensitive optical components during storage transport and handling. Crafted from .030 clear polyethylene terephthalate glycol (PETG) this tray is engineered to minimize outgassing thereby safeguarding the components from environmental contaminants. The tray's clarity ensures easy visibility of contents facilitating inspections without compromising protection. This model features four round cavities each with a diameter of 25.4mm making it ideal for various optical elements such as lenses and prisms.
Key Product Features
- Low Outgassing: Ensures a contamination-free environment for sensitive components.
- High Clarity: Offers excellent visibility for monitoring and inspecting optical components without removal.
- Chemical Resistance: The material withstands various chemicals enhancing durability and usability.
- Recyclability: Promotes environmental sustainability through easy recyclability.
- No Finger Access/Tweezer Notch: Ensures the integrity of stored components by minimizing direct contact.

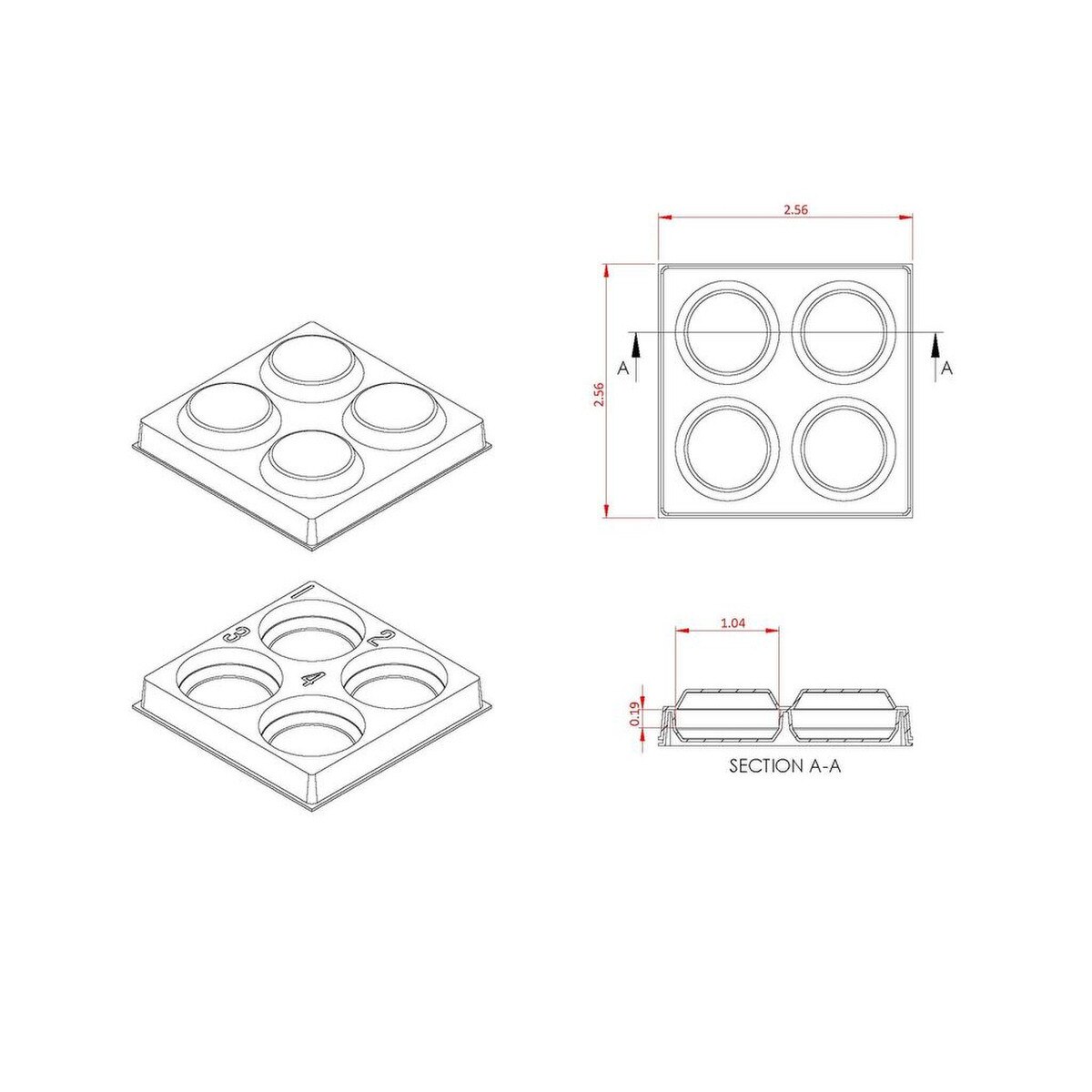

Specifications
Shape: Round
Size: 2.56" x 2.56"
Depth: 0.21"
Cavities: 4
Diameter of Cavities: 25.4mm (1")
Material: Manufactured from .030 Clear PETG
Packaging: Sold in cases of 100
Properties
| Property | Value | Test Method |
|---|---|---|
| Specific Gravity | 1.27 | ASTM D-792 |
| Heat Deflection Temperature | 160°F at 66 psi | ASTM D-648 |
| Tensile Strength | 5900 psi | |
| Tensile Modulus of Elasticity | 250000 psi |
Ideal Use Cases
This tray is perfectly suited for industries such as telecommunications, photonics, aerospace and medical device manufacturing where precision and component integrity are critical.
Commitment to Quality
Correct Products ensures that each 3062 Optics Packaging Tray meets the highest standards of quality and reliability tailored to the needs of industries handling delicate optical components.
Ordering and Contact Information
For more information or to request a quote for bulk orders please contact us.
