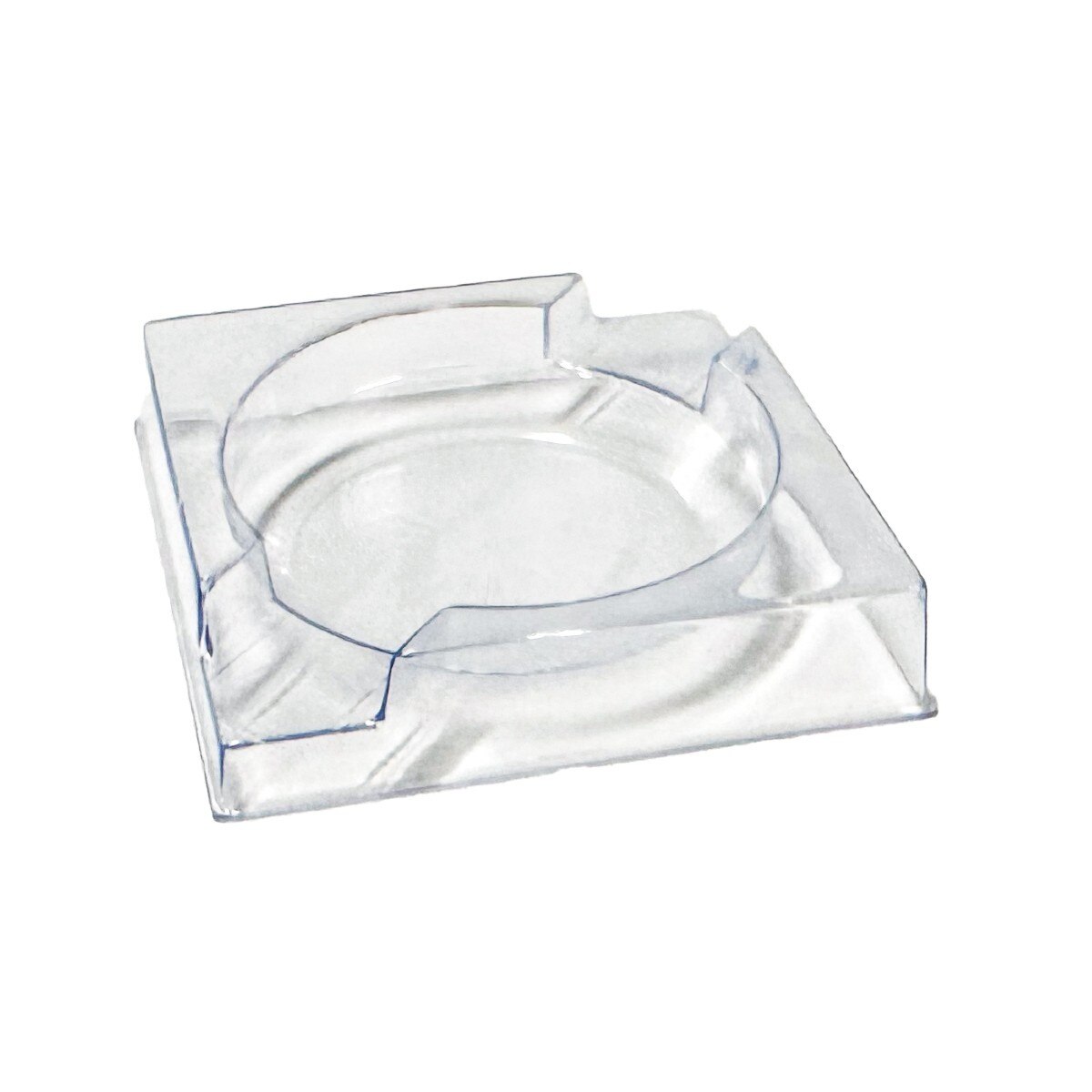

2498 Optics Packaging Tray, Round Single Cavity, 2.56" x 2.56", Cavity Size 50.8mm (2") Diameter, 100/Case
Description
The 2498 Optics Packaging Tray is meticulously crafted to safeguard sensitive optical components offering robust protection during storage transportation and handling processes. Made from .030 clear polyethylene terephthalate glycol (PETG) this tray not only protects against physical impacts but also ensures a contamination-free environment due to its low outgassing properties. The exceptional clarity of the material allows for seamless inspection of contents minimizing the need for handling that could potentially damage delicate components. Ideal for industries that demand high precision and cleanliness the 2498 tray provides an optimal solution for maintaining the integrity and quality of optical elements.
Key Product Features
- Manufactured from .030 Clear PETG: This material provides a balance of durability and clarity offering excellent chemical resistance.
- Low Outgassing: Critical for maintaining a contamination-free environment for sensitive components.
- Exceptionally Clear: Facilitates easy inspection of contents without the need to remove items from the tray.
- Recyclable: Promotes environmentally responsible practices through easy recyclability.

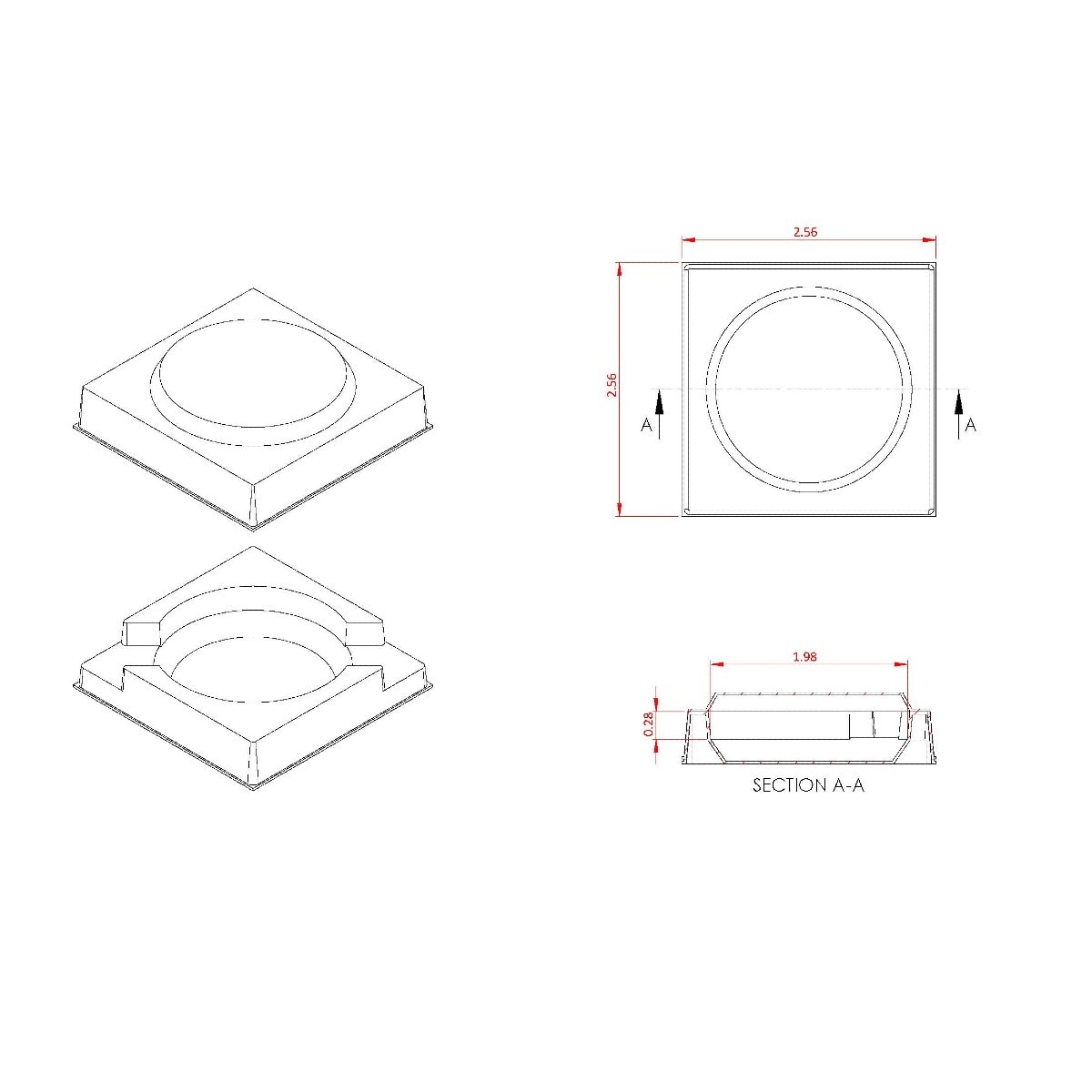

Specifications
- Shape: Round
- Size: 2.56" x 2.56"
- Depth: 0.25"
- Cavities: 1
- Diameter: 50.8mm (2")
- Packaging: Sold in cases of 100 units
- Available Variants: Standard model is crafted from clear PETG; also available in Static Dissipative PETG - Please Inquire

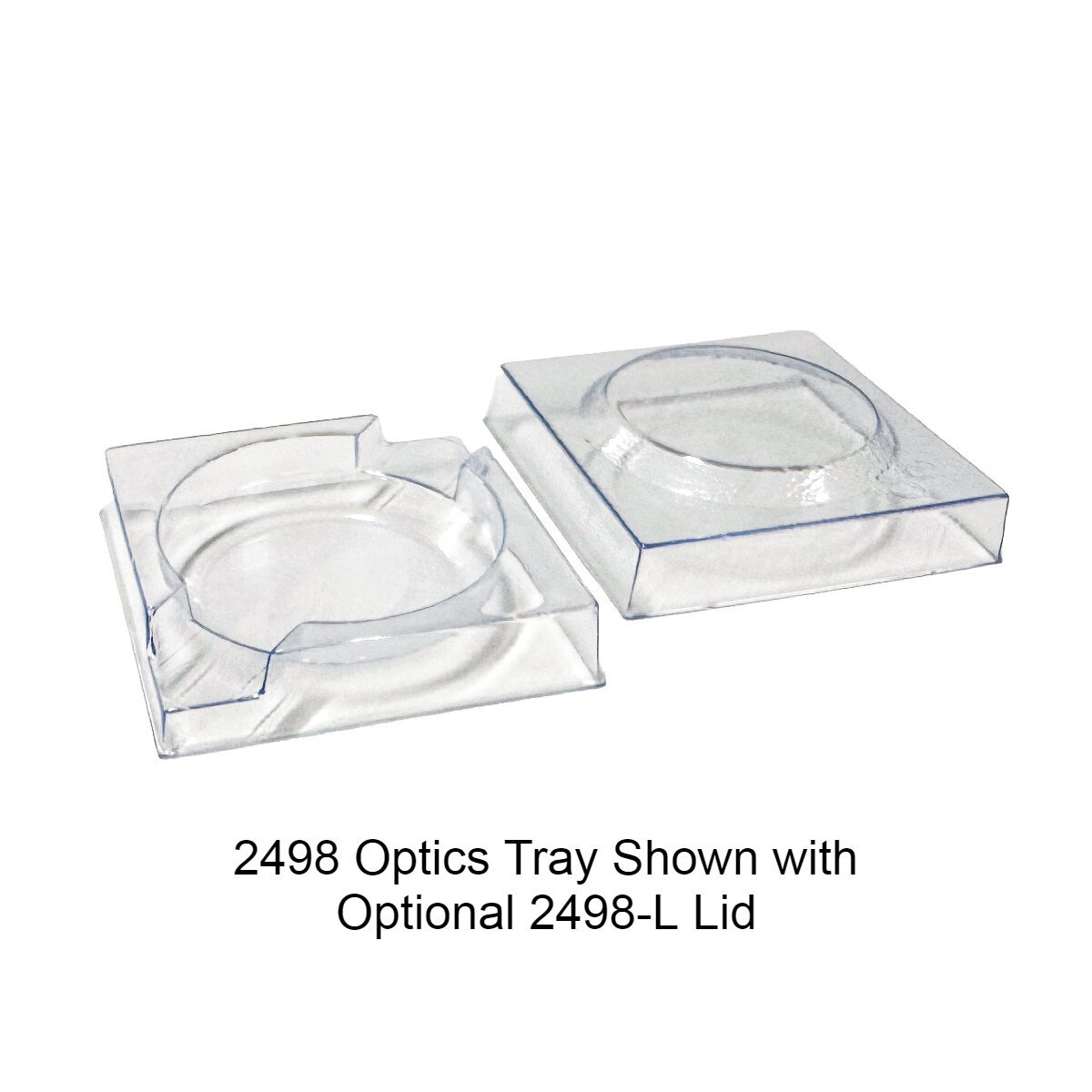

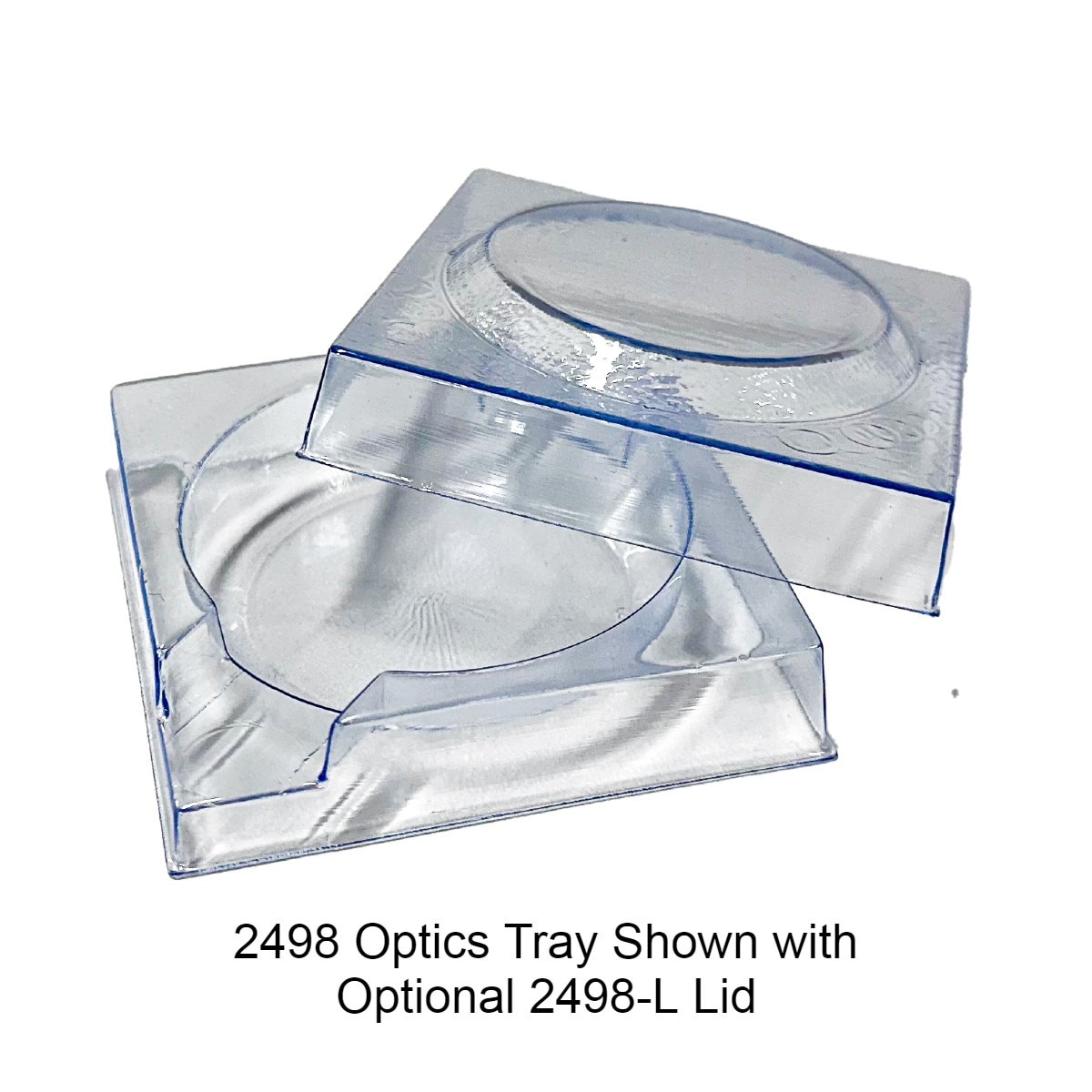

- Matching Cover Available - Sold Separately
- Matching Injection Molded Cases Available - Sold Separately
Properties
| Property | Value | Test Method |
|---|---|---|
| Specific Gravity | 1.27 | ASTM D-792 |
| Heat Deflection Temperature | 160°F at 66 psi | ASTM D-648 |
| Tensile Strength | 5900 psi | ASTM Standard |
| Tensile Modulus of Elasticity | 250000 psi | ASTM Standard |
Ideal Use Cases
This tray is particularly suited for industries such as telecommunications, photonics, aerospace and medical device manufacturing where precision and protection are essential. It ensures that components are securely stored and remain undamaged during critical processes.
Commitment to Quality
Correct Products is committed to delivering high-quality products that meet the stringent standards required by industries handling sensitive optical components. Each tray undergoes rigorous quality control to ensure it meets these standards.
Ordering and Contact Information
For purchasing or to learn more about the 2498 Optics Packaging Tray customers are encouraged to contact Correct Products directly. The company offers expert consultation to provide tailored solutions that best fit the specific requirements of your optics packaging needs.
For further details or to place an order contact Correct Products.
