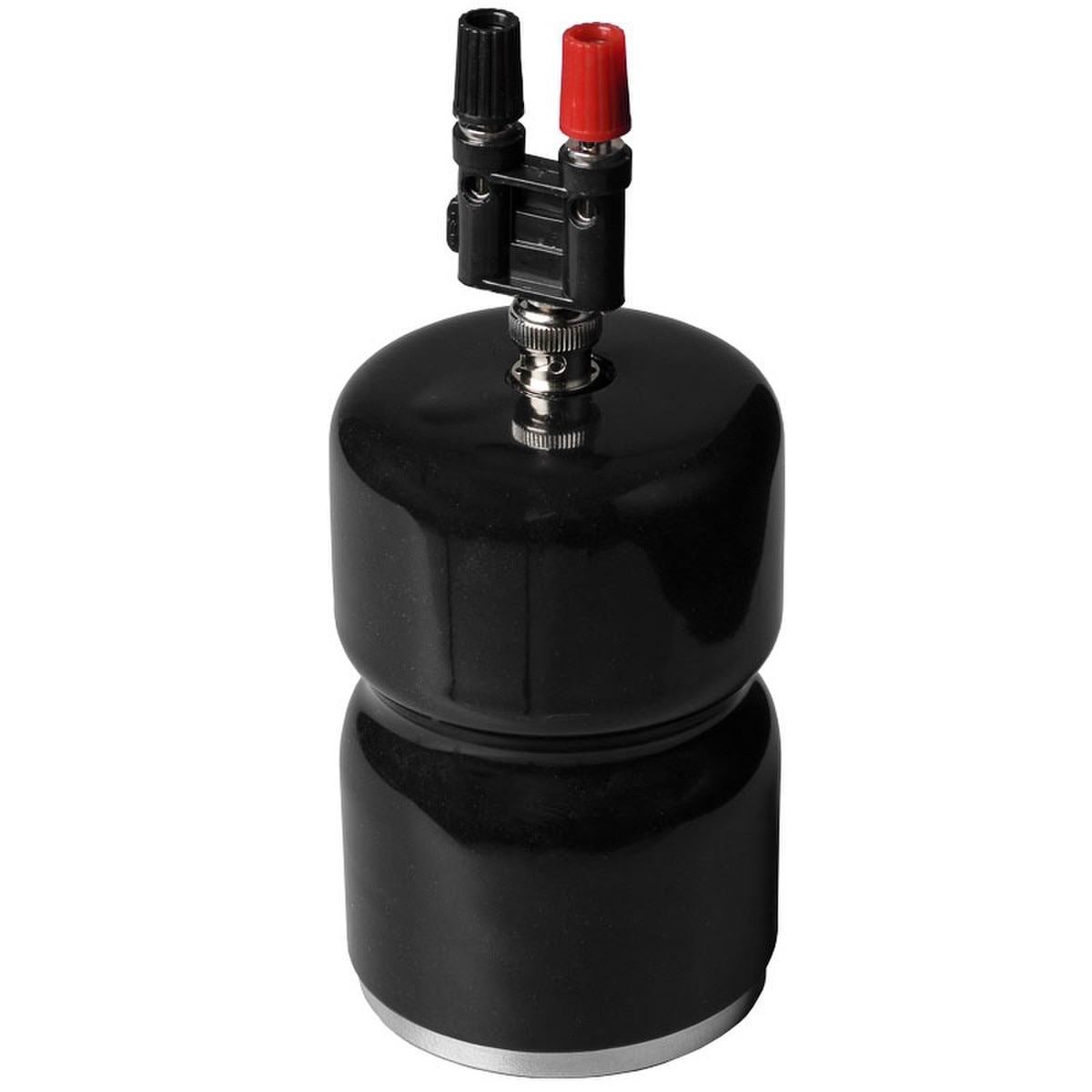

SCS 770007 Concentric Ring Probe for use with SCS 770760 Resistance Pro Meter Kit
Description
The SCS 77007 Concentric Ring Probe is an instrument to be used in conjunction the SCS 770760 Resistance Pro Meter, to measure surface resistance per ANSI/ESD STM11.11 the test method listed in Packaging standard ANSI/ESD S541 for surface resistance of planar materials.
- Measures surface resistance per ANSI/ESD STM11.11 and volume resistance per ANSI/ESD STM11.12 of planar material.

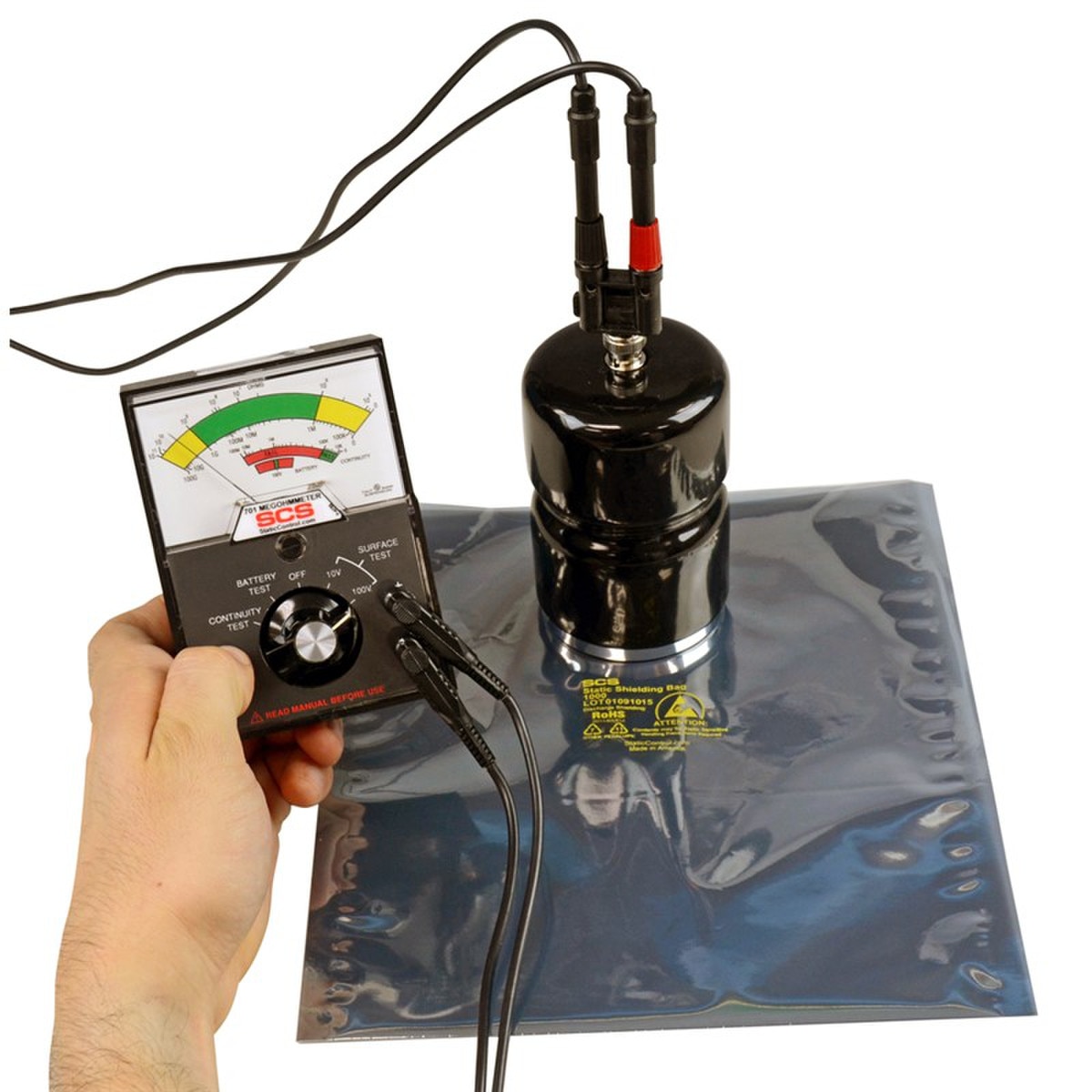

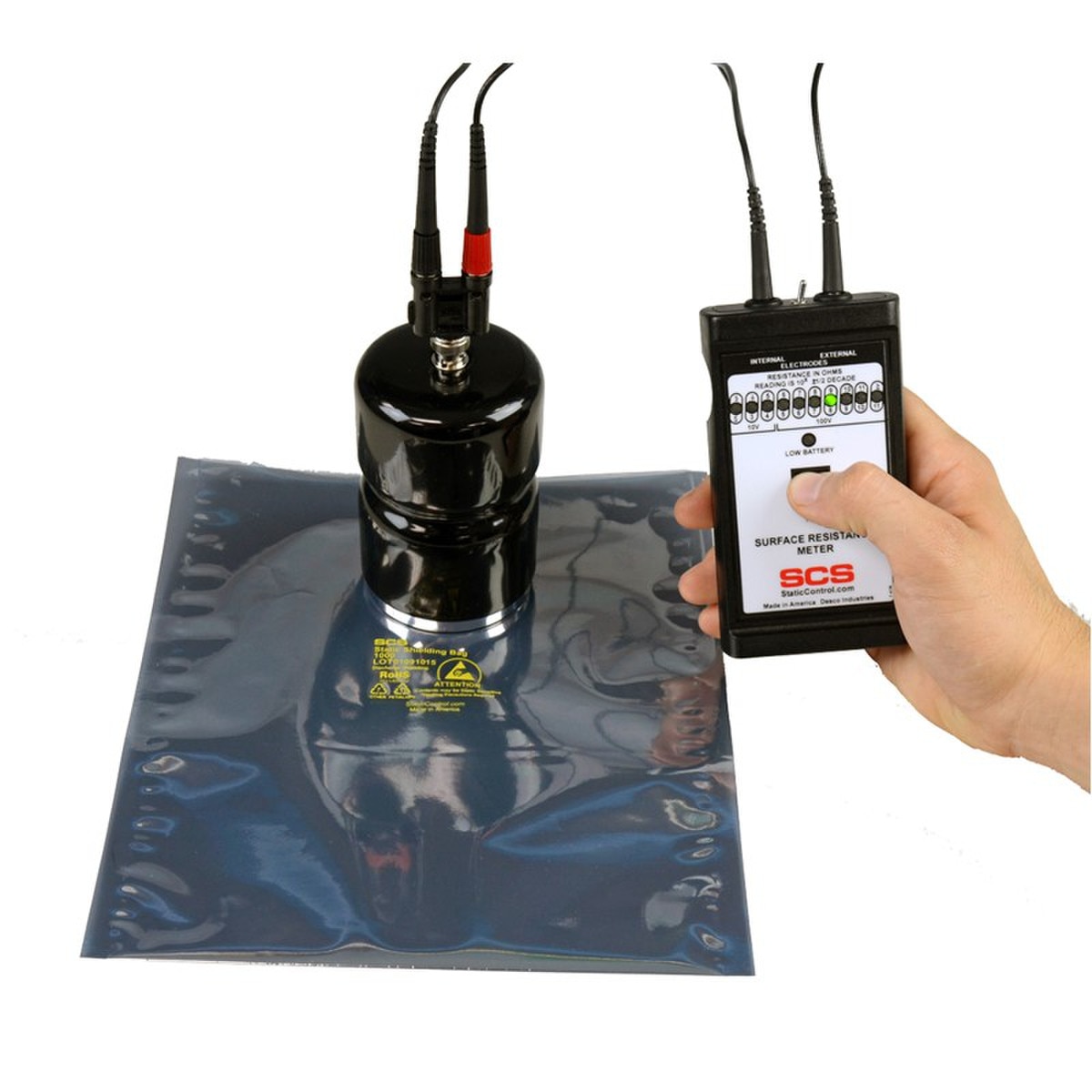

- Used for resistance measurements ESD packaging including static shielding and other bags.

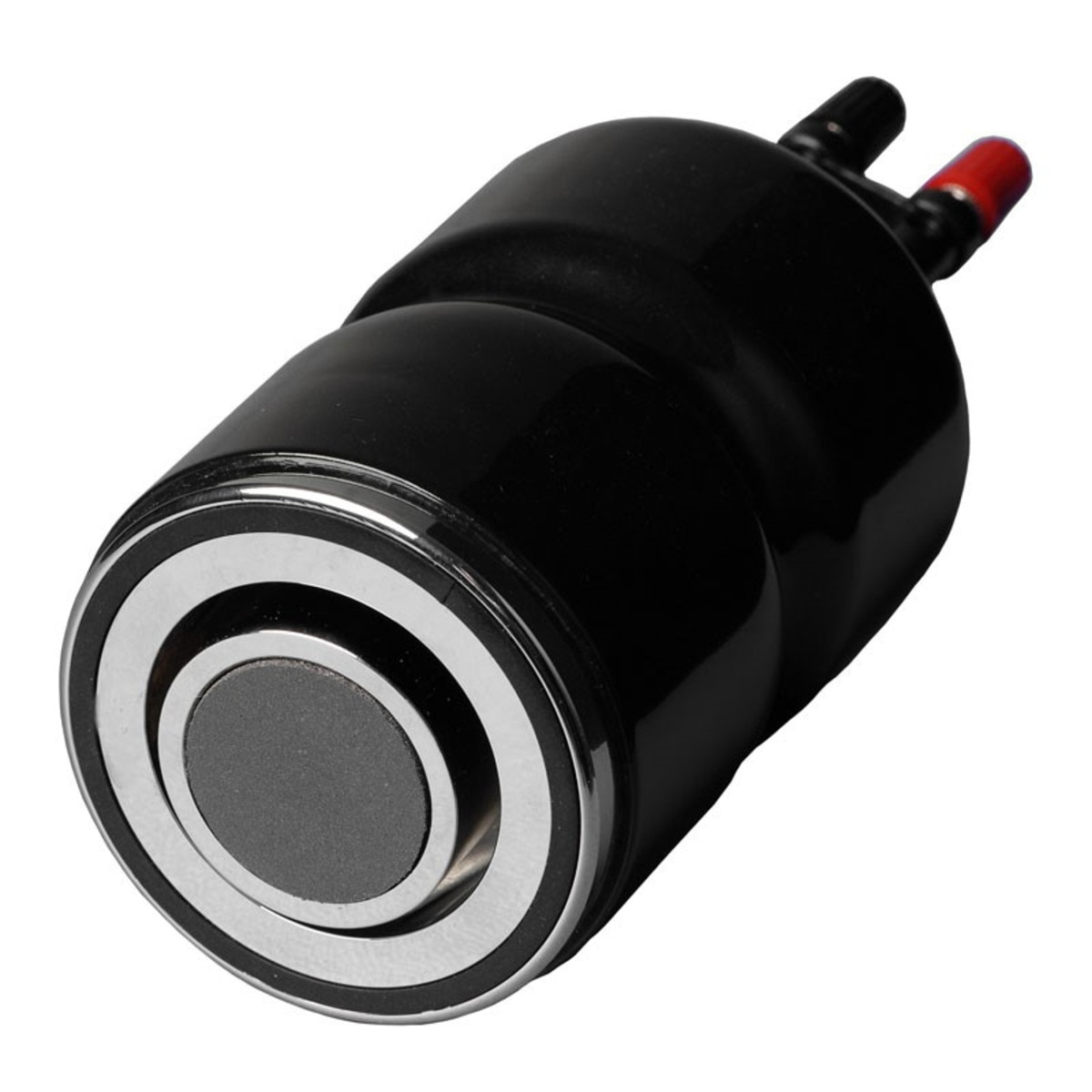

- Spring Loaded, Self-Aligning Center Electrode.
- Maintains consistent contact between the fixture’s conductive rings and the material under test.
