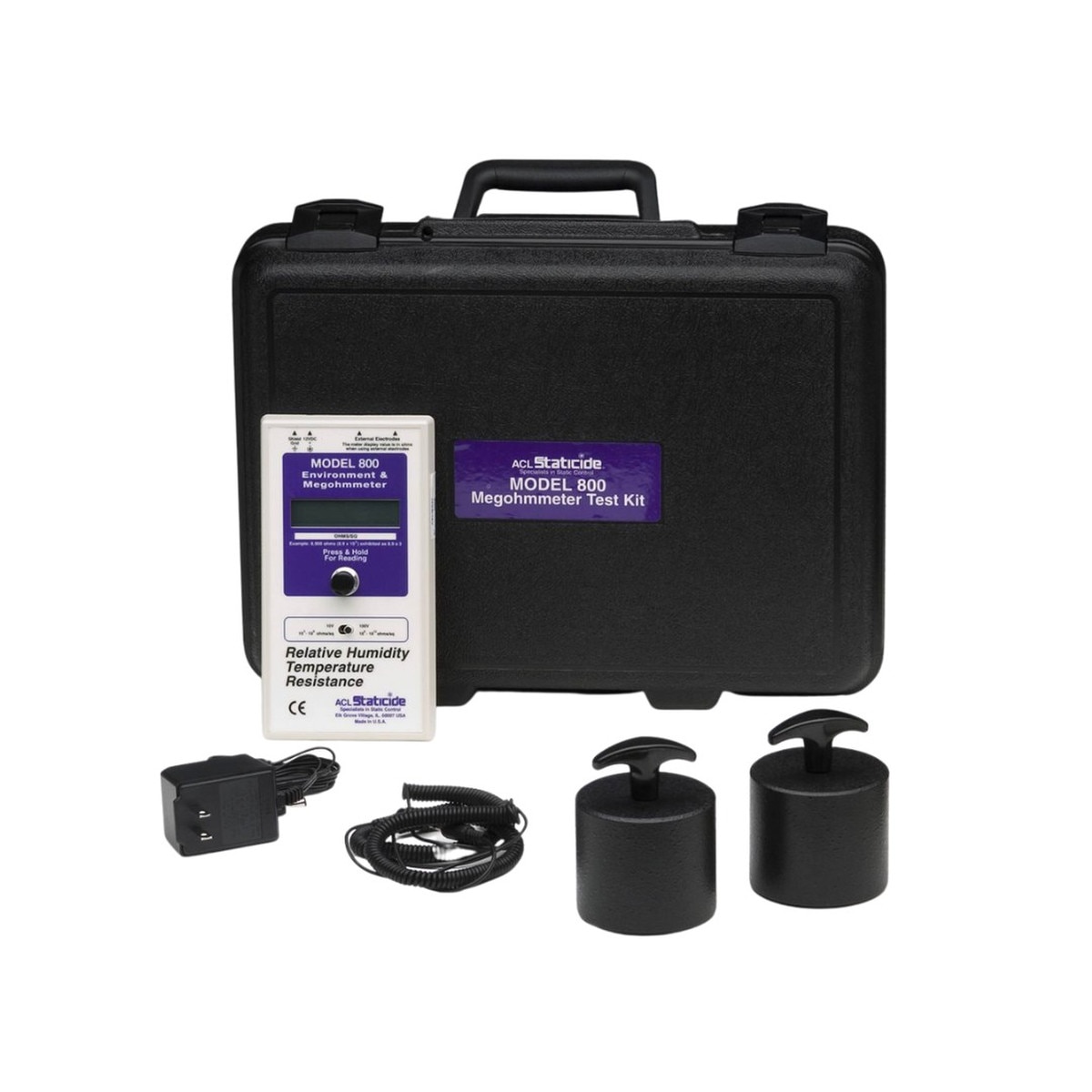

ACL 800 Digital Megohmeter Audit Kit

The ACL 800 Digital Megohmmeter is a dependable and easy-to-use audit kit that is designed to test static dissipative surfaces for electrical resistivity and resistance according to industry standards such as ANSI/ESD test methods 34.1, S7.1, and STM 11.11.  Tests are easy to perform with or without the 5 lb probes.

Unlike analog meters with LEDs, the digital LCD window of the ACL 800 shows test results in actual values rather than the decade within which the measurement falls.  Additionally, since ambient conditions can affect resistivity, the ACL 800 measures resistivity, temperature, and humidity with the push of one button, making the ACL 800 the ideal megohmmeter for auditing.

This meter is suitable to use in all facets of material production, including engineering, maintenance, quality control, incoming inspection, manufacturing, research, and sales.  It is ideal for the testing of anti-static mats, floor finishes, paints, wrist straps, smocks, footwear, bags, and containers.

Specifications:

• Measures resistivity, temperature, and humidity
• Resistivity range: 10^3 - 10^12 ohms/square
• Resistance range:  10^3-10^12 ohms
• Relative humidity range:  10% to 90% RH
• Temperature range:  32F to 100F (0C-37.7C)
• Test voltage range:  10v/100v
• Accuracy:
• 10^3-10^8 ohms: 10%
• 10^9-10^10 ohms: 15%
• 10^11 - 10^12 ohms: 25%
• Alphanumeric LCD scale shows actual values
• Includes Calibration Certificate traceable to NIST
• Optional parts available
• Concentric ring probe
• Mini probe for 1" parts
• Garment clips for smock testing
