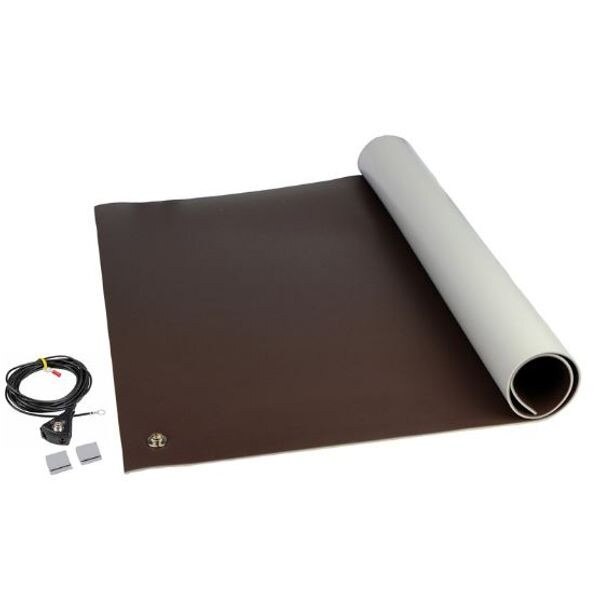

SCS 8211 ESD 3-Layer Vinyl Mat Top Kit, 2' x 4', Brown
Description
SCS 8200 Series ESD mats are soft table mats with a unique three-layer construction. The top layer is durable static dissipative vinyl, which has sufficiently low resistance to discharge static-laden conductors, yet will prevent the shorting of pins on the backs of printed circuit boards laid on the mat. The middle layer is a highly conductive scrim that provides the main discharge path to ground, and the bottom layer is static-dissipative foam, providing a durable nonskid cushion.
- Table Mats: Include common point ground cord and two ground snaps.
- Dissipative (10 x 10e6 < 1 x 10e9 ohms RTT) Top Color Layer
- Highly conductive middle scrim
- Dissipative (10 x 10e6 < 1 x 10e9 ohms RTT) Foam Bottom Layer
- Thickness: .140"
- Made in the USA
